Product Description

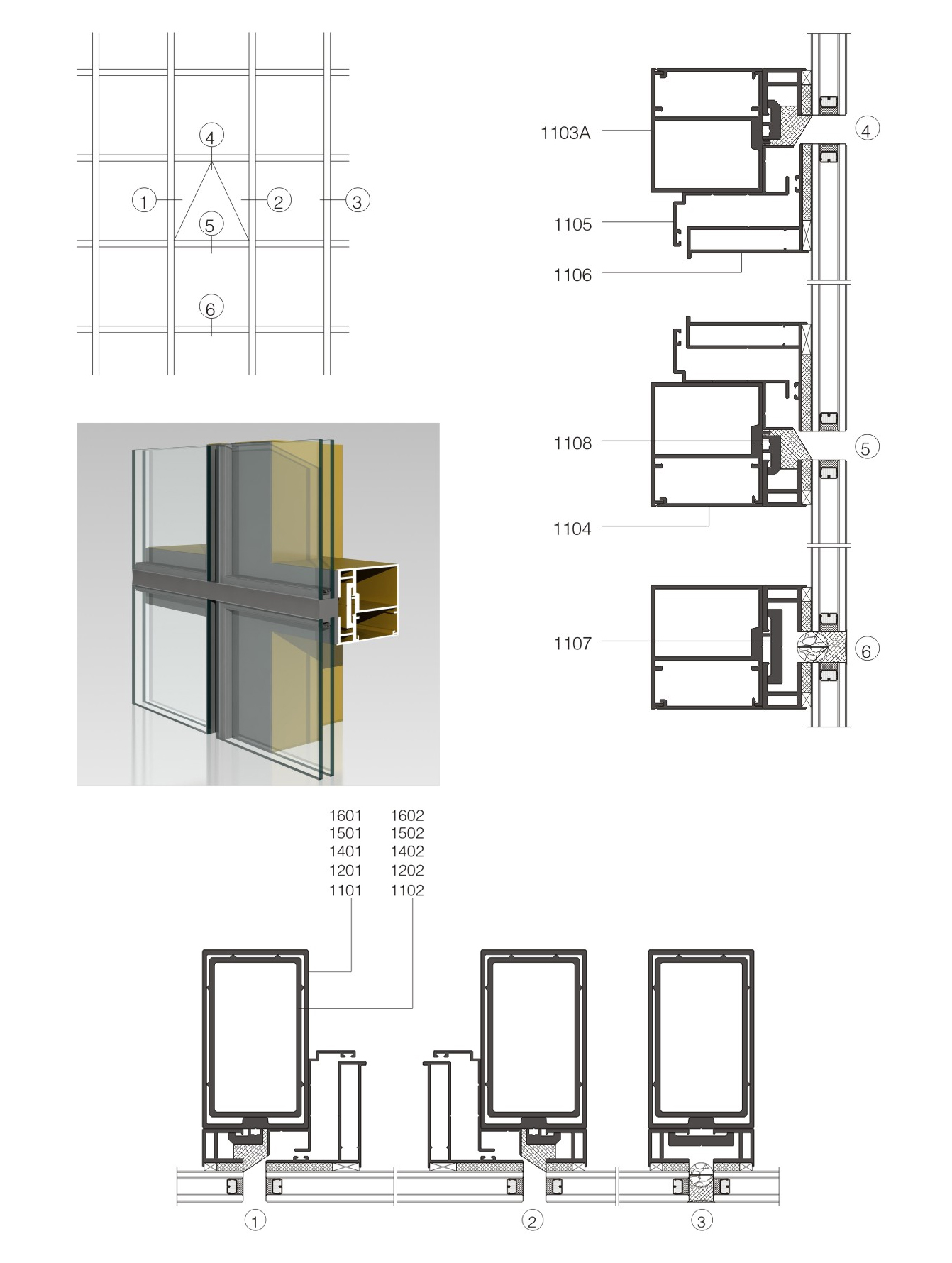

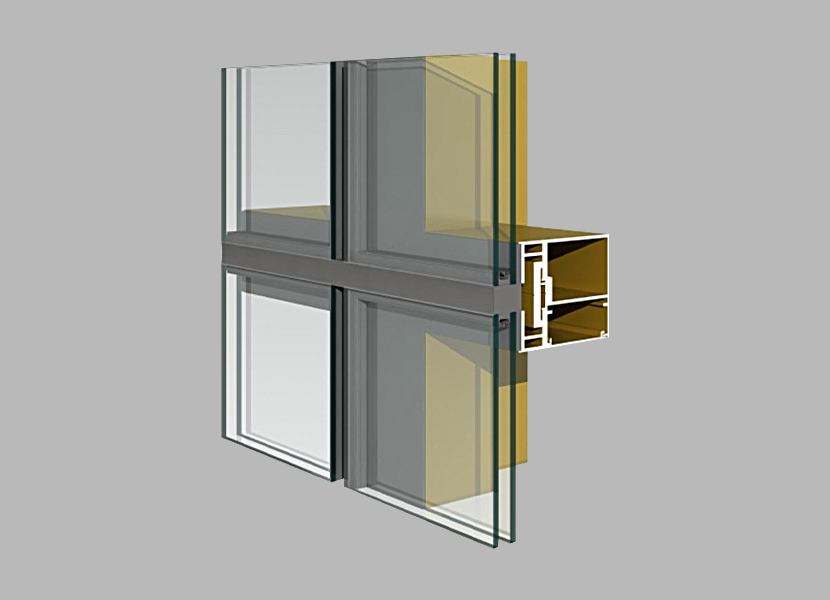

Node Drawing

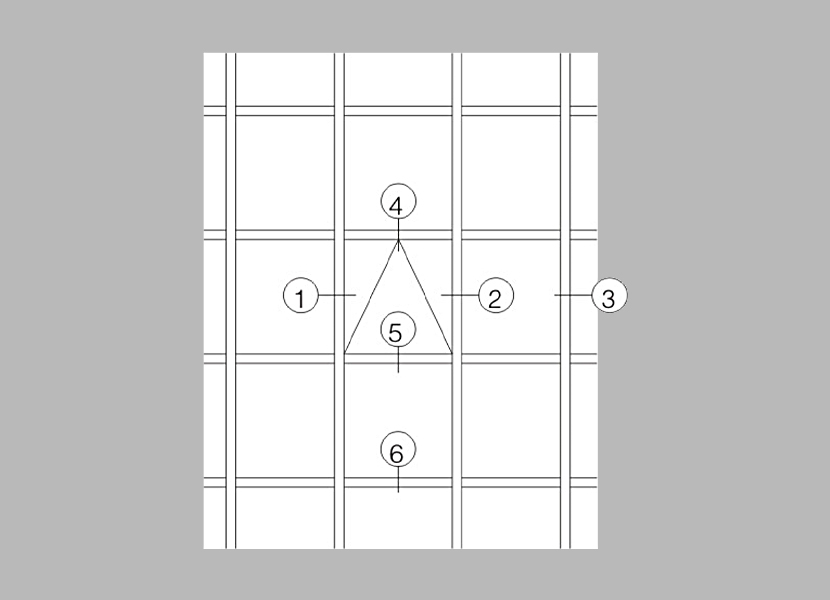

Simple Drawing

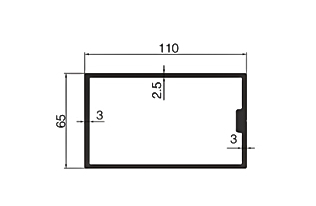

Model	1101
Name	Column
Wall thickness	3.0mm
Meter weight	2.620kg/m

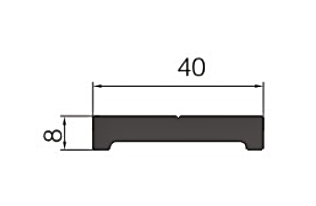

Model	1107
Name	Briquetting block
Wall thickness
Meter weight	0.690kg/m

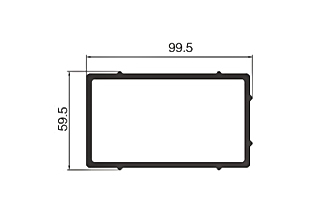

Model	1102
Name	Core
Wall thickness	3.0mm
Meter weight	2.460kg/m

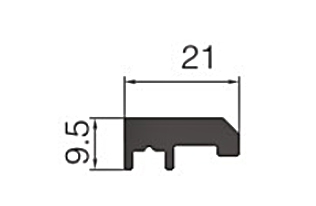

Model	1108
Name	Briquetting block
Wall thickness
Meter weight	0.340kg/m

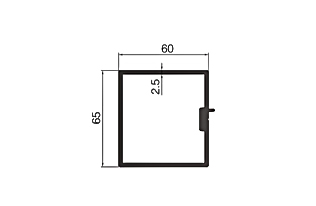

Model	1103
Name	beam
Wall thickness	2.5mm
Meter weight	1.780kg/m

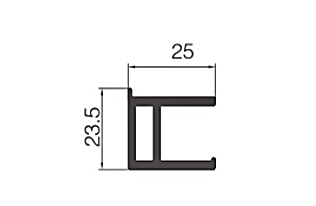

Model	1109
Name	Glass sub frame
Wall thickness	2.5mm
Meter weight	0.520kg/m

Model	1103A
Name	beam
Wall thickness	2.0mm
Meter weight	1.600kg/m

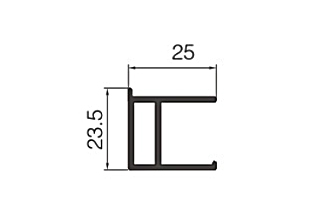

Model	1109A
Name	Glass sub frame
Wall thickness	1.5mm
Meter weight	0.360kg/m

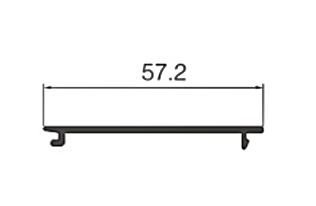

Model	1104
Name	Board
Wall thickness	1.5mm
Meter weight	0.264kg/m

Model	1112
Name	Corner code
Wall thickness
Meter weight	2.430kg/m

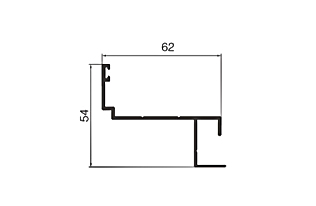

Model	1105
Name	Open box
Wall thickness	1.5mm
Meter weight	0.560kg/m

Model	1113
Name	Open fan
Wall thickness	1.5mm
Meter weight	0.510kg/m

Model	1106
Name	Open fan
Wall thickness	1.5mm
Meter weight	0.830kg/m

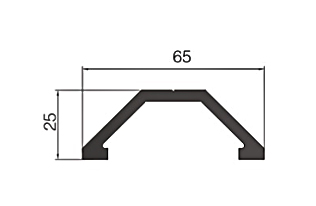

Model	1114
Name	Corner
Wall thickness	4.0mm
Meter weight	1.01kg/m

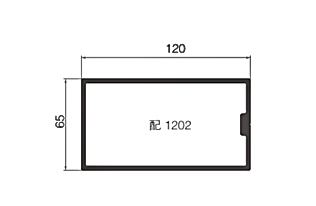

Model	1201
Name	Column
Wall thickness	3.0mm
Meter weight	3.100kg/m

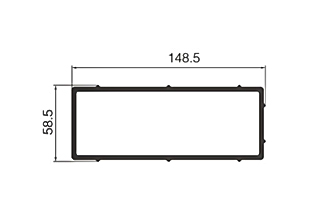

Model	1602
Name	Core
Wall thickness	3.0mm
Meter weight	3.260kg/m

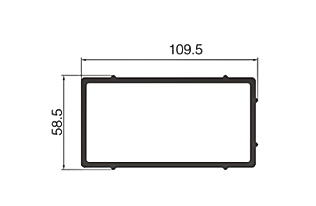

Model	1202
Name	Core
Wall thickness	3.0mm
Meter weight	2.600kg/m

Model	1801
Name	Column
Wall thickness	3.0mm
Meter weight	4.550kg/m

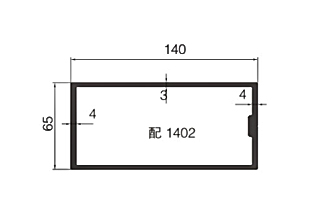

Model	1401
Name	Column
Wall thickness	3.0mm
Meter weight	3.670kg/m

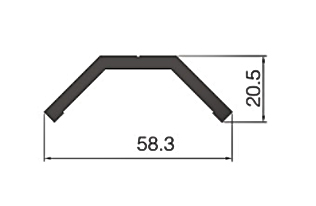

Model	1115
Name	Corner
Wall thickness	4.0mm
Meter weight	0.759kg/m

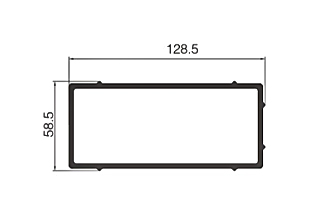

Model	1402
Name	Core
Wall thickness	3.0mm
Meter weight	2.920kg/m

Model	1201A
Name	Column
Wall thickness	2.0mm
Meter weight	2.078kg/m

Model	1501
Name	Column
Wall thickness	3.0mm
Meter weight	3.830kg/m

Model	1502
Name	Core
Wall thickness	3.0mm
Meter weight	3.100kg/m

Model	1601
Name	Column
Wall thickness	3.0mm
Meter weight	4.000kg/m
