Product Description

Node Drawing

Simple Drawing

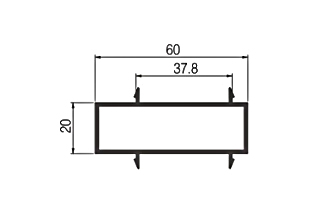

Model	A5008
Name	Pinyin
Wall thickness	1.4mm
Meter weight	0.666kg/m

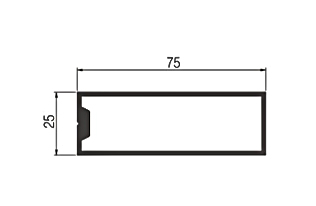

Model	BY01
Name
Wall thickness	1.5mm
Meter weight	0.895kg/m

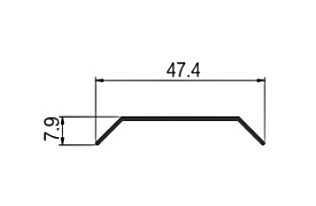

Model	FZ004
Name	Louver
Wall thickness	1.0mm
Meter weight	0.143kg/m

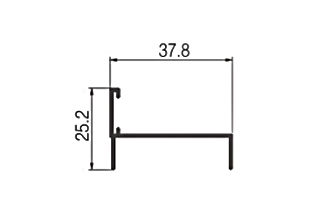

Model	FZ005
Name	Louver box
Wall thickness	1.0mm
Meter weight	0.210kg/m

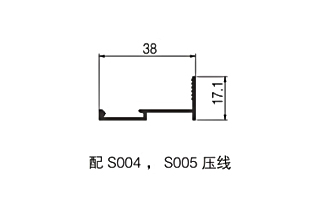

Model	S003
Name	Holder
Wall thickness	1.0mm
Meter weight	0.182kg/m

Model	S004
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.116kg/m

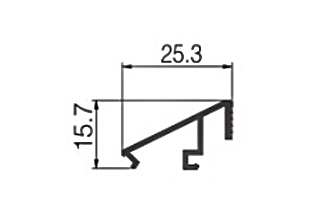

Model	S005
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.164kg/m

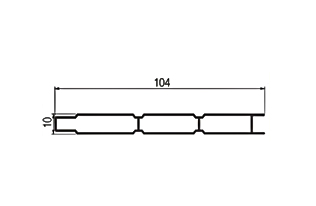

Model	S008
Name	Door plate
Wall thickness	0.6/0.8mm
Meter weight	0.391/0.521kg/m

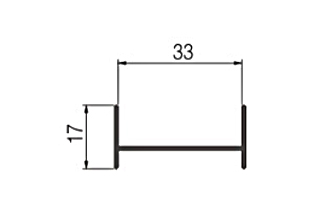

Model	S009
Name	Louver box
Wall thickness	1.0mm
Meter weight	0.180kg/m

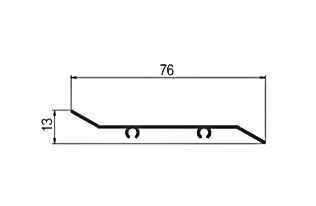

Model	S010
Name	Louver
Wall thickness	0.8/1.0mm
Meter weight	0.223/0.258kg/m

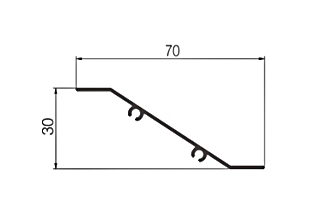

Model	S010A
Name	Louver
Wall thickness	1.0mm
Meter weight	0.260kg/m

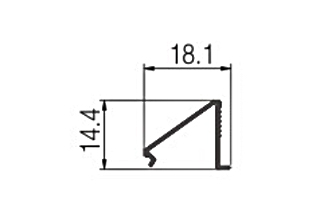

Model	S011
Name	Pressure line
Wall thickness	0.7mm
Meter weight	0.078kg/m

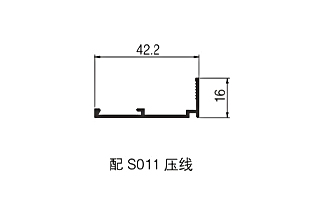

Model	S012
Name	Holder
Wall thickness	1.0mm
Meter weight	0.188kg/m

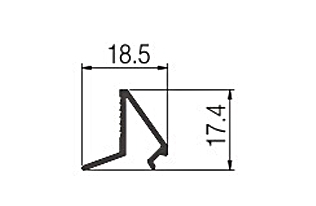

Model	S016
Name	Pressure line
Wall thickness	0.9mm
Meter weight	0.117kg/m

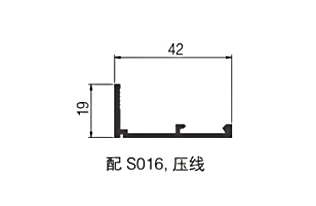

Model	S017
Name	Holder
Wall thickness	1.4mm
Meter weight	0.286kg/m

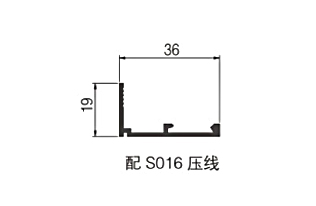

Model	S018
Name	Holder
Wall thickness	1.4mm
Meter weight	0.226kg/m

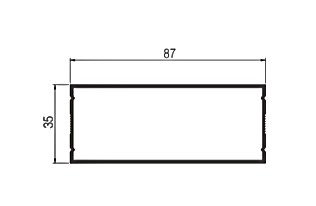

Model	S019
Name
Wall thickness	1.35mm
Meter weight	0.860kg/m

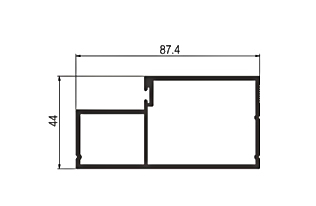

Model	S020
Name
Wall thickness	1.9mm
Meter weight	1.525kg/m

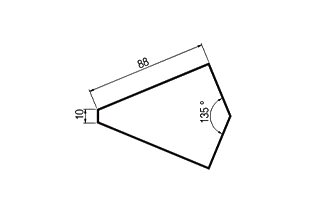

Model	S021
Name	Corner
Wall thickness	1.2mm
Meter weight	0.860kg/m

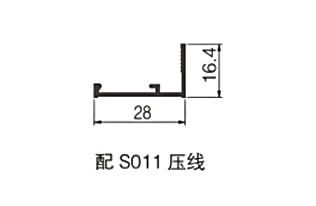

Model	S022
Name	Holder
Wall thickness	1.0mm
Meter weight	0.150kg/m

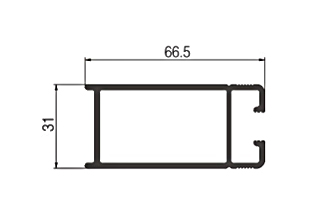

Model	S023
Name
Wall thickness	1.9mm
Meter weight	1.013kg/m

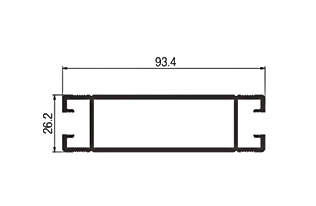

Model	S024
Name
Wall thickness	1.9mm
Meter weight	1.270kg/m

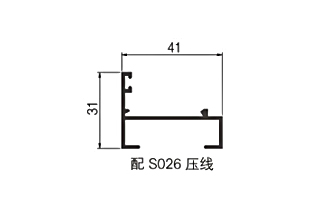

Model	S025
Name
Wall thickness	1.2mm
Meter weight	0.355kg/m

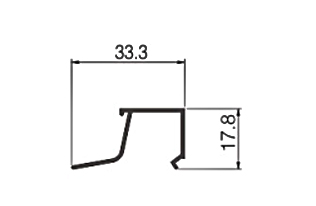

Model	S026
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.180kg/m

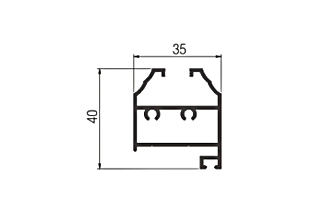

Model	S027
Name
Wall thickness	1.2mm
Meter weight	0.605kg/m

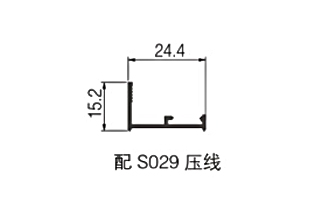

Model	S028
Name	Holder
Wall thickness	0.9mm
Meter weight	0.120kg/m

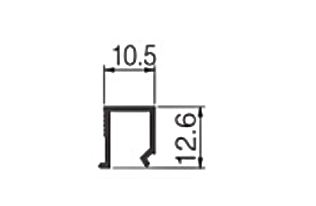

Model	S029
Name	Pressure line
Wall thickness	0.9mm
Meter weight	0.087kg/m

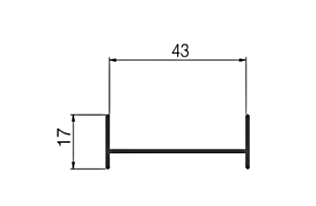

Model	S030
Name	Louver box
Wall thickness	1.0mm
Meter weight	0.208kg/m
