Product Description

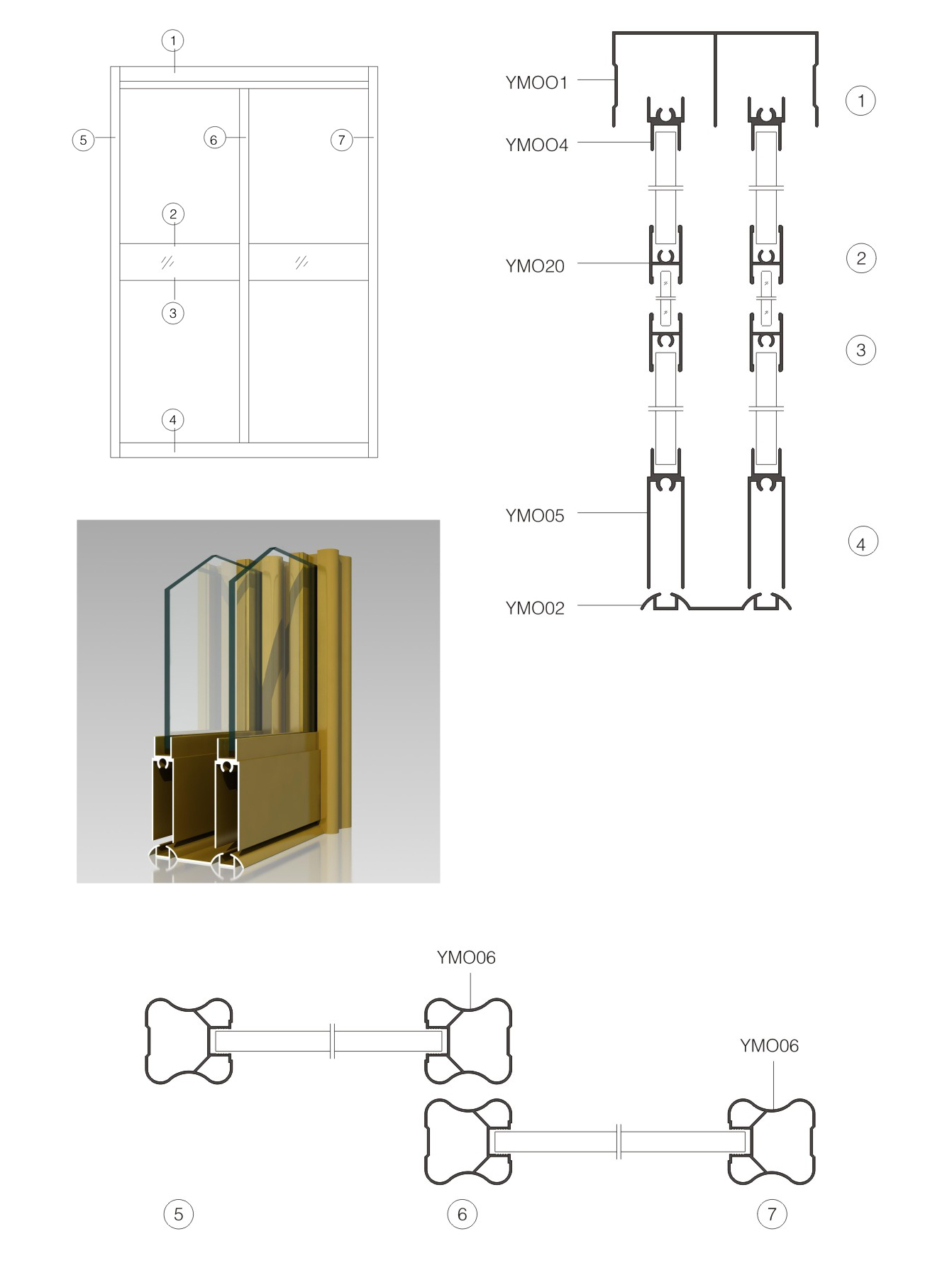

Node Drawing

Simple Drawing

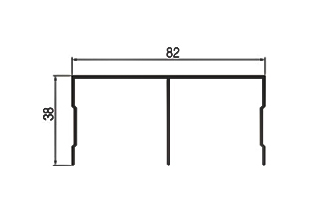

Model	YMOO1
Name	Slide up
Wall thickness	1.0mm
Meter weight	0.525kg/m

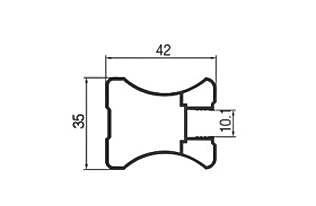

Model	YMOO6C
Name	Border Enterprise
Wall thickness	0.9mm
Meter weight	0.454kg/m

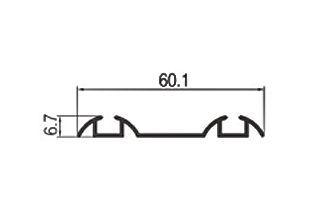

Model	YMOO2
Name	Down
Wall thickness	1.0mm
Meter weight	0.261kg/m

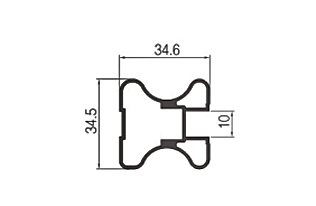

Model	YMOO6D
Name	Border Enterprise
Wall thickness	1.1mm
Meter weight	0.568kg/m

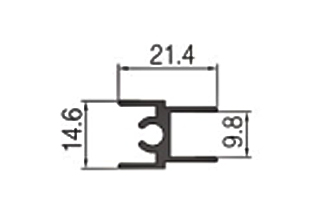

Model	YMOO4
Name	Above
Wall thickness	1.0mm
Meter weight	0.221kg/m

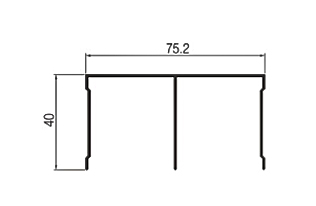

Model	YMO01A
Name	Slide up
Wall thickness	0.9mm
Meter weight	0.471kg/m

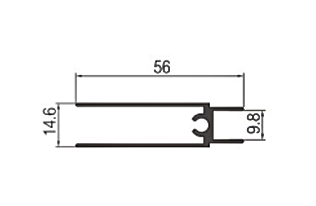

Model	YMOO5
Name	Below
Wall thickness	1.0mm
Meter weight	0.408kg/m

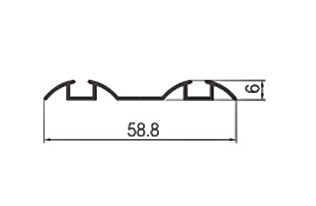

Model	YMO02A
Name	Down
Wall thickness	0.9mm
Meter weight	0.218kg/m

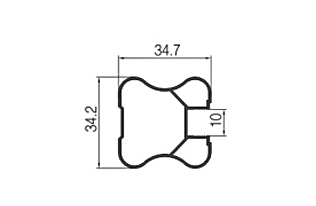

Model	YMOO6
Name	Border Enterprise
Wall thickness	0.9mm
Meter weight	0.397kg/m

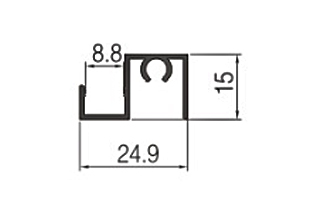

Model	YMO03
Name
Wall thickness	1.0mm
Meter weight	0.198kg/m

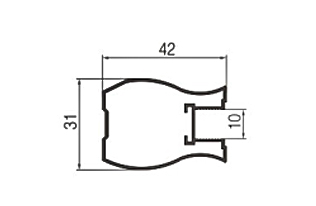

Model	YMOO6A
Name	Border Enterprise
Wall thickness	0.9mm
Meter weight	0.398kg/m

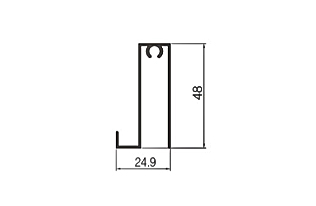

Model	YMO07
Name
Wall thickness	1.0mm
Meter weight	0.382kg/m

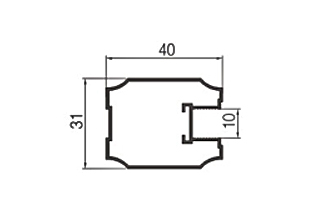

Model	YMOO6B
Name	Border Enterprise
Wall thickness	0.9mm
Meter weight	0.390kg/m

Model	YMO08
Name
Wall thickness	1.0mm
Meter weight	0.335kg/m

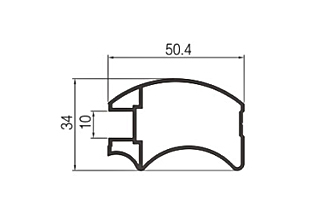

Model	YMOO9
Name	Border Enterprise
Wall thickness	1.1mm
Meter weight	0.570kg/m

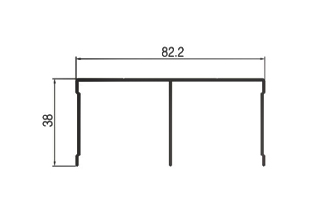

Model	YMO15
Name	Slide up
Wall thickness	0.92mm
Meter weight	0.498kg/m

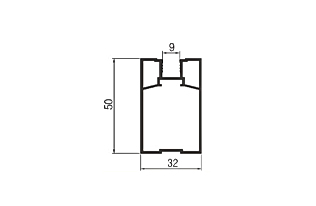

Model	YMO10
Name	Border Enterprise
Wall thickness	1.1mm
Meter weight	0.613kg/m

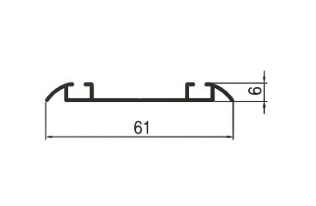

Model	YMO16
Name	Down
Wall thickness	0.8mm
Meter weight	0.199kg/m

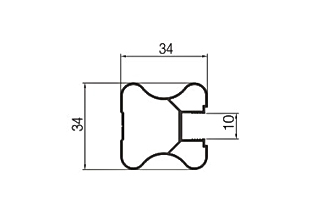

Model	YMO11
Name	Border Enterprise
Wall thickness	0.7mm
Meter weight	0.333kg/m

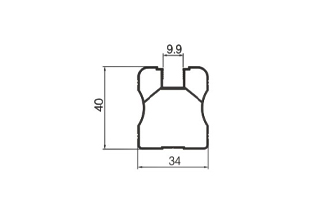

Model	YMO17
Name	Border Enterprise
Wall thickness	0.7mm
Meter weight	0.363kg/m

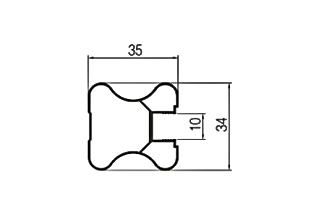

Model	YMO11A
Name	Border Enterprise
Wall thickness	0.65mm
Meter weight	0.317kg/m

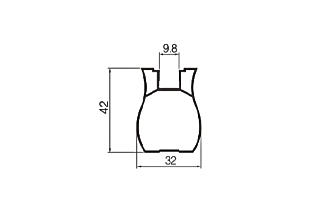

Model	YMO18
Name	Border Enterprise
Wall thickness	0.7mm
Meter weight	0.342kg/m

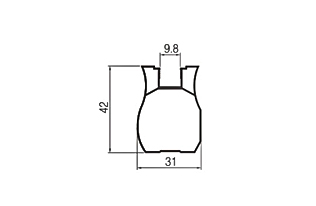

Model	YMO12
Name	Border Enterprise
Wall thickness	0.6mm
Meter weight	0.300kg/m

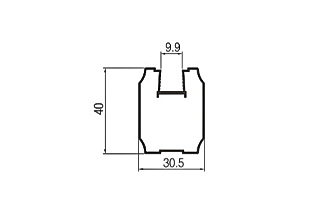

Model	YMO19
Name	Border Enterprise
Wall thickness	0.7mm
Meter weight	0.317kg/m

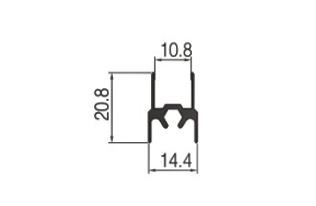

Model	YMO13
Name	Above
Wall thickness	0.6mm
Meter weight	0.173kg/m

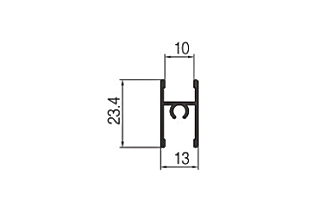

Model	YMO20
Name	Above
Wall thickness	1.0mm
Meter weight	0.198kg/m

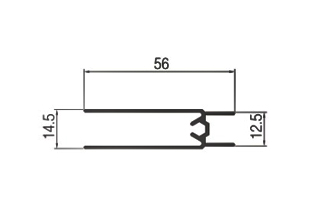

Model	YMO14
Name	Below
Wall thickness	0.92mm
Meter weight	0.354kg/m

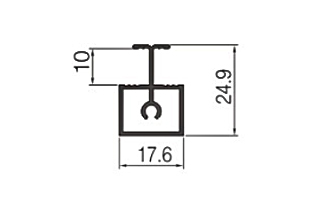

Model	YMO21
Name
Wall thickness	1.0mm
Meter weight	0.249kg/m

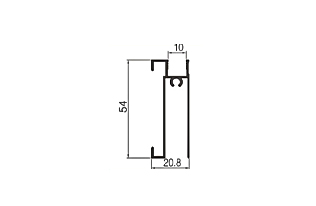

Model	YM022
Name
Wall thickness	0.9mm
Meter weight	0.401kg/m

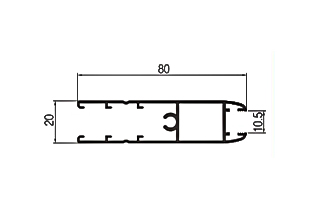

Model	YMO28
Name
Wall thickness	1.0mm
Meter weight	0.686kg/m

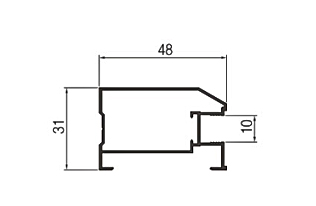

Model	YM023
Name
Wall thickness	0.9mm
Meter weight	0.439kg/m

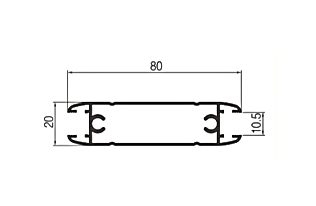

Model	YMO29
Name
Wall thickness	1.0mm
Meter weight	0.741kg/m

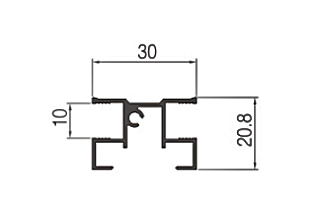

Model	YMO24
Name
Wall thickness	0.9mm
Meter weight	0.293kg/m

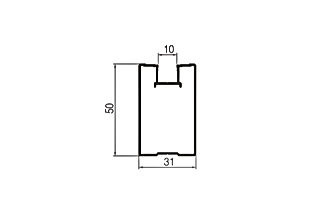

Model	YMO30
Name
Wall thickness	0.9mm
Meter weight	0.462kg/m

Model	YMO25
Name
Wall thickness	1.2mm
Meter weight	0.477kg/m

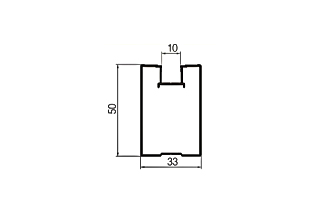

Model	YMO30A
Name
Wall thickness	0.9mm
Meter weight	0.468kg/m

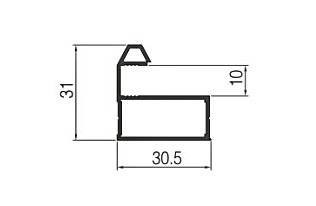

Model	YMO26
Name
Wall thickness	1.0mm
Meter weight	0.323kg/m

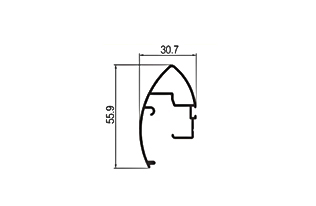

Model	YMO31
Name
Wall thickness	1.1mm
Meter weight	0.491kg/m

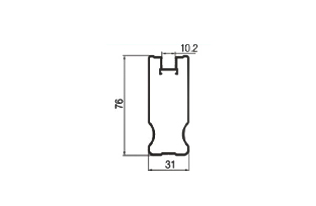

Model	YMO27
Name
Wall thickness	1.1mm
Meter weight	0.704kg/m

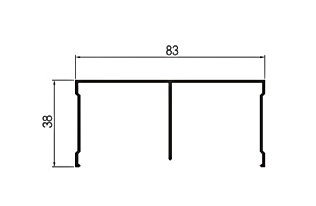

Model	YMO32
Name	Slide up
Wall thickness	1.0mm
Meter weight	0.525kg/m

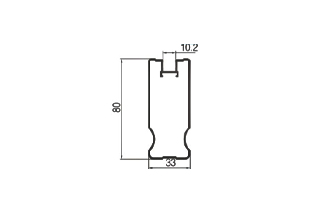

Model	YMO27A
Name
Wall thickness	1.1mm
Meter weight	0.740kg/m

Model	YMO33
Name
Wall thickness	0.9mm
Meter weight	0.460kg/m

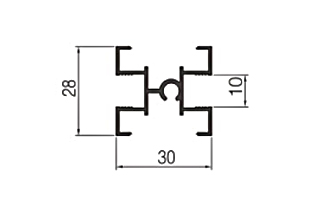

Model	YMO34
Name
Wall thickness	0.9mm
Meter weight	0.340kg/m

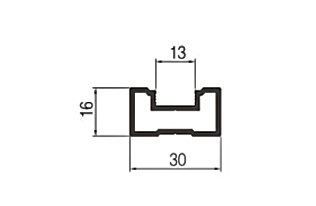

Model	YMO41
Name
Wall thickness	1.5mm
Meter weight	0.391kg/m

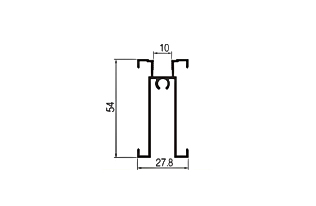

Model	YMO35
Name
Wall thickness	0.9mm
Meter weight	0.462kg/m

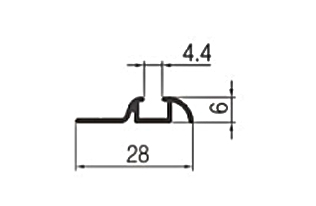

Model	YMO42
Name
Wall thickness	0.9mm
Meter weight	0.113kg/m

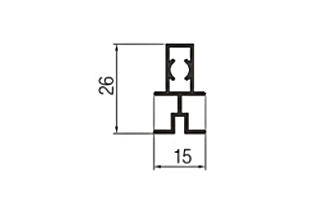

Model	YMO36
Name
Wall thickness	0.9mm
Meter weight	0.218kg/m

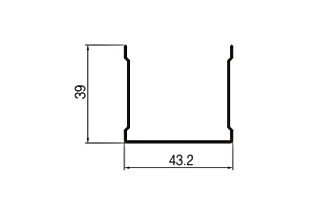

Model	YMO43
Name
Wall thickness	0.9mm
Meter weight	0.293kg/m

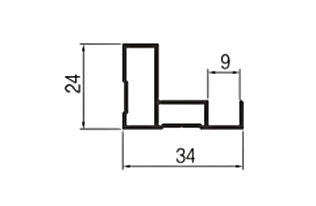

Model	YMO37
Name
Wall thickness	0.9mm
Meter weight	0.283kg/m

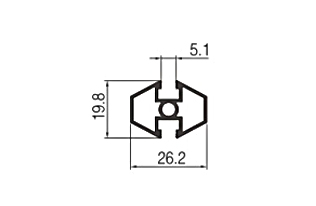

Model	YMO44
Name
Wall thickness	0.9mm
Meter weight	0.299kg/m

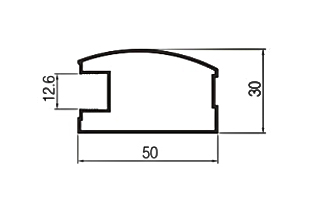

Model	YMO38
Name
Wall thickness	1.0mm
Meter weight	0.452kg/m

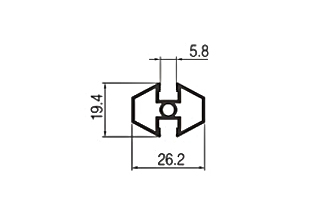

Model	YMO44A
Name
Wall thickness	0.9mm
Meter weight	0.283kg/m

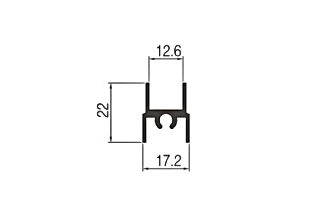

Model	YMO39
Name
Wall thickness	1.1mm
Meter weight	0.255kg/m

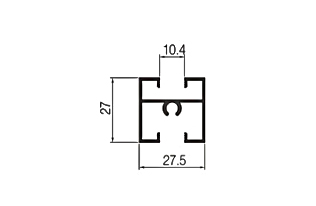

Model	YMO45
Name
Wall thickness	1.0mm
Meter weight	0.370kg/m

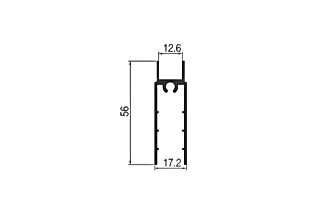

Model	YMO40
Name
Wall thickness	1.1mm
Meter weight	0.471kg/m

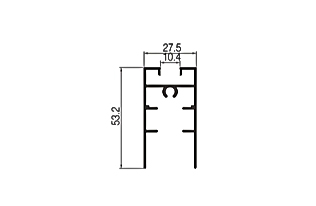

Model	YMO46
Name
Wall thickness	1.0mm
Meter weight	0.531kg/m

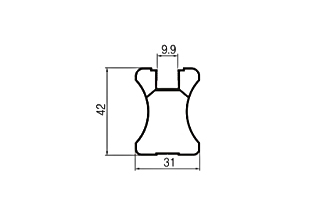

Model	YMO47
Name
Wall thickness	0.7mm
Meter weight	0.350kg/m

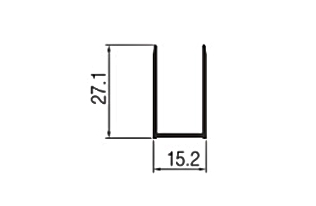

Model	YMO55
Name
Wall thickness	0.9mm
Meter weight	0.162kg/m

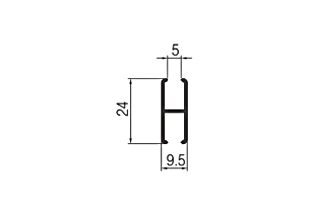

Model	YMO48
Name
Wall thickness	1.0mm
Meter weight	0.159kg/m

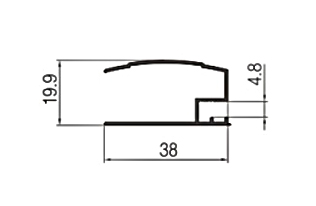

Model	YMO56
Name
Wall thickness	0.9mm
Meter weight	0.254kg/m

Model	YMO49
Name
Wall thickness	1.2mm
Meter weight	0.638kg/m

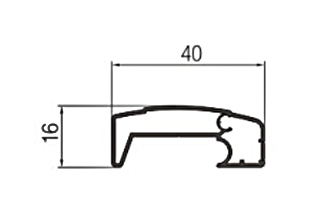

Model	YMO57
Name
Wall thickness	0.9mm
Meter weight	0.304kg/m

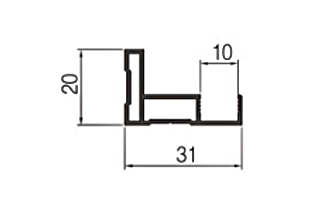

Model	YMO50
Name
Wall thickness	1.0mm
Meter weight	0.268kg/m

Model	YMO53
Name
Wall thickness	0.65mm
Meter weight	0.331kg/m

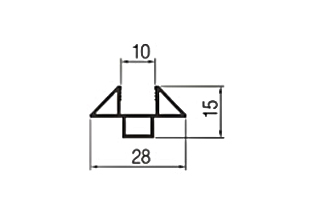

Model	YMO51
Name
Wall thickness	0.7mm
Meter weight	0.168kg/m

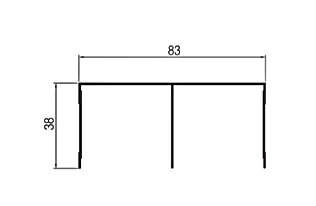

Model	YMO54
Name	Slide up
Wall thickness	0.75mm
Meter weight	0.409kg/m
