Product Description

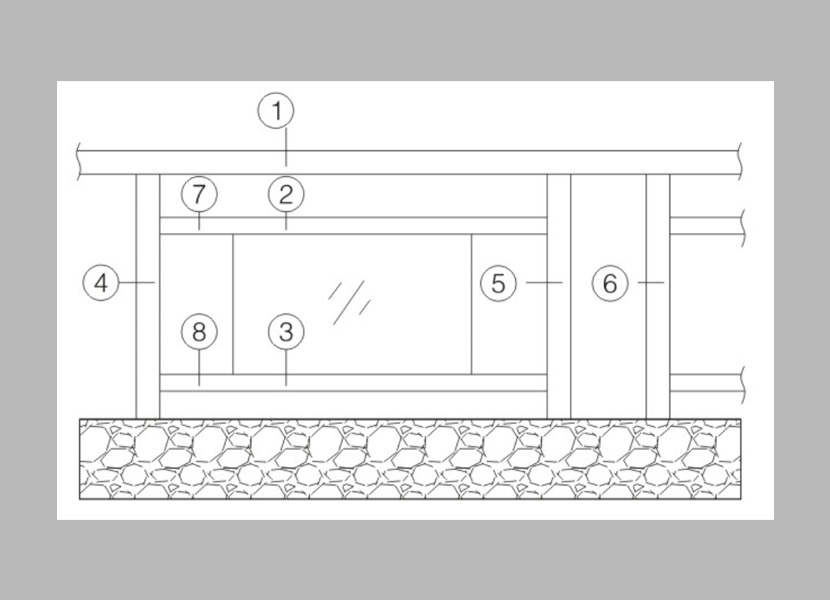

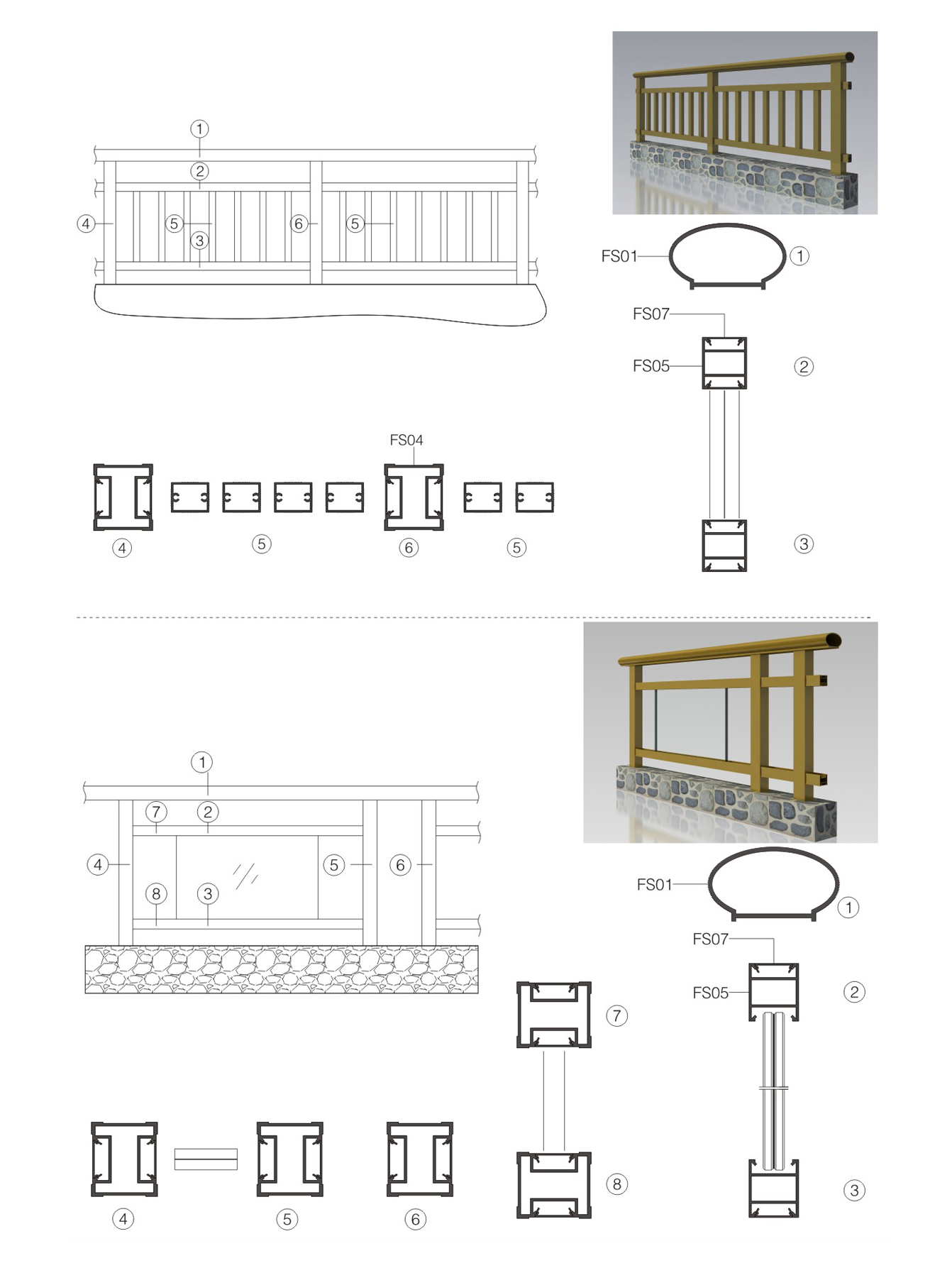

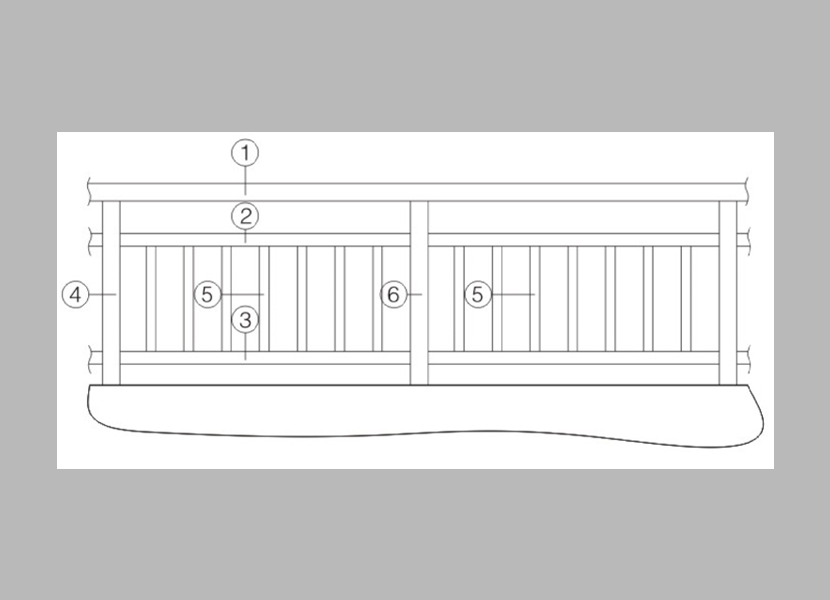

Node Drawing

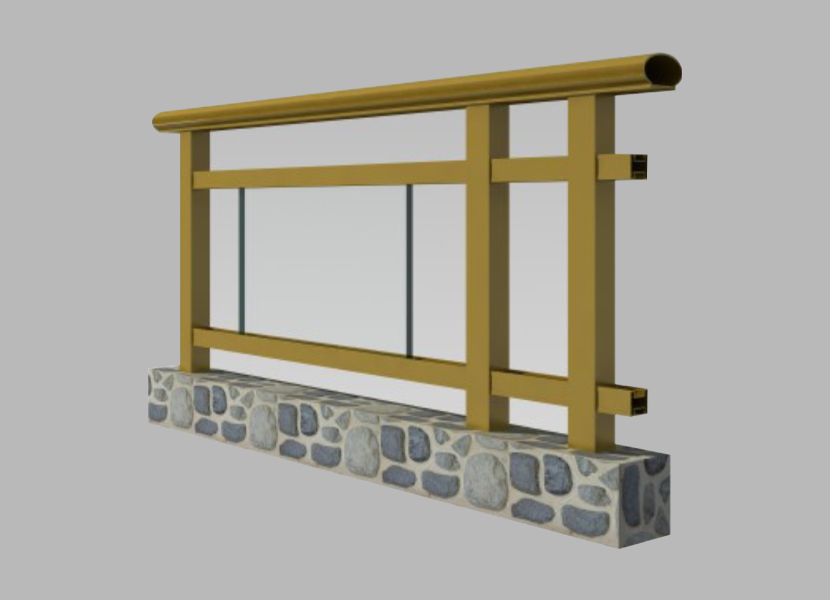

Simple Drawing

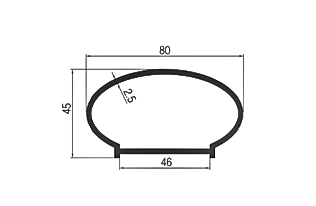

Model	FS01
Name	Facial tube
Wall thickness	2.5mm
Meter weight	1.331kg/m

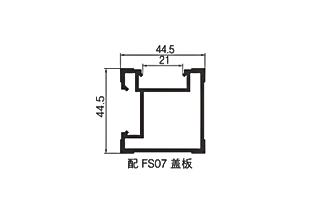

Model	FS03
Name	Corner upright
Wall thickness	1.5mm
Meter weight	0.940kg/m

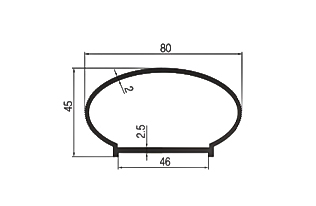

Model	FS01A
Name	Facial tube
Wall thickness	2.0mm
Meter weight	1.140kg/m

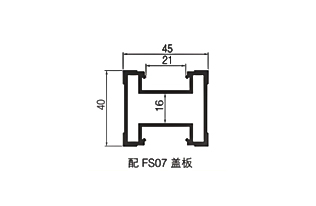

Model	FS04
Name	Column
Wall thickness	1.5mm
Meter weight	0.958kg/m

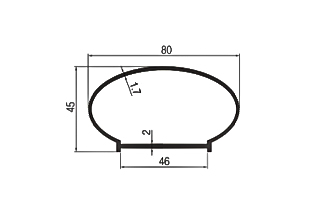

Model	FS01B
Name	Facial tube
Wall thickness	1.7mm
Meter weight	0.935kg/m

Model	FS04A
Name	Column
Wall thickness	1.5mm
Meter weight	0.958kg/m

Model	FS01C
Name	Facial tube
Wall thickness	2.5mm
Meter weight	1.271kg/m

Model	FS04B
Name	Column
Wall thickness	2.5mm
Meter weight	1.500kg/m

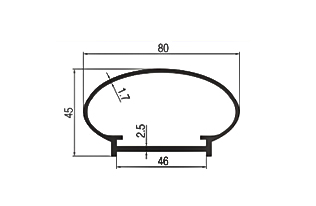

Model	FS01D
Name	Facial tube
Wall thickness	2.5mm
Meter weight	1.117kg/m

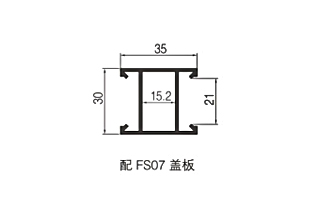

Model	FS05
Name	Column
Wall thickness	1.4mm
Meter weight	0.539kg/m

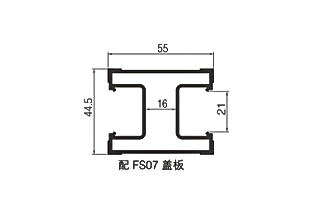

Model	FS02
Name	Column
Wall thickness	1.4mm
Meter weight	1.114kg/m

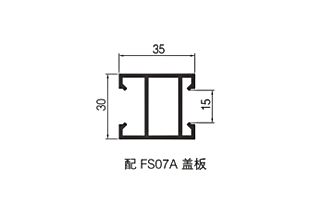

Model	FS05A
Name	Column
Wall thickness	1.4mm
Meter weight	0.585kg/m

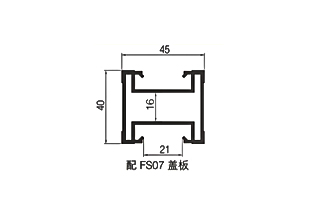

Model	FS02B
Name	Column
Wall thickness	1.5mm
Meter weight	0.981kg/m

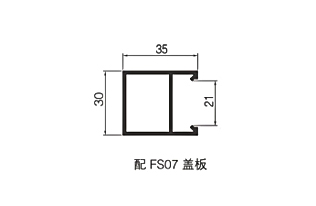

Model	FS05B
Name	Column
Wall thickness	1.4mm
Meter weight	0.490kg/m

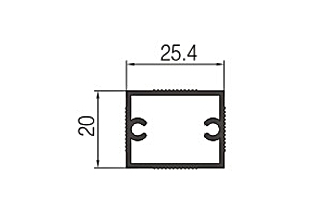

Model	FS06
Name	Flower tube
Wall thickness	1.1mm
Meter weight	0.332kg/m

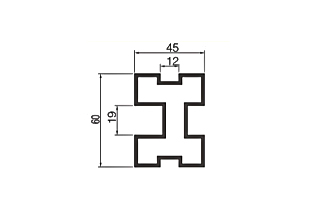

Model	FS21
Name
Wall thickness	2.0mm
Meter weight	1.512kg/m

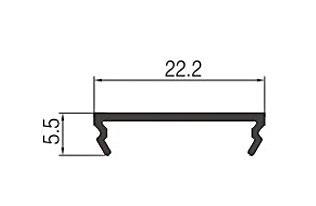

Model	FS07
Name	Cover
Wall thickness	1.0mm
Meter weight	0.083kg/m

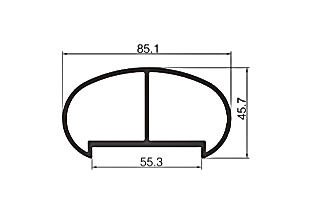

Model	FS22
Name
Wall thickness	2.0mm
Meter weight	1.542kg/m

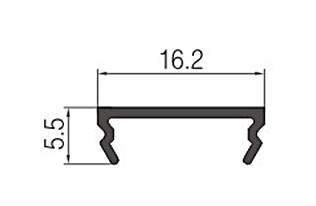

Model	FS07A
Name	Cover
Wall thickness	1.0mm
Meter weight	0.067kg/m

Model	FS23
Name
Wall thickness	2.0mm
Meter weight	1.312kg/m

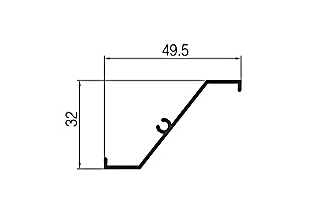

Model	FS08
Name	Louver
Wall thickness	1.0mm
Meter weight	0.241kg/m

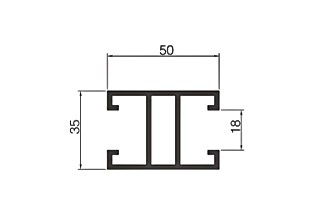

Model	FS24
Name
Wall thickness	2.0mm
Meter weight	1.08kg/m

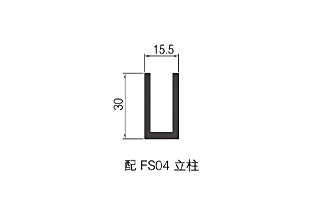

Model	FS17
Name	Connector
Wall thickness	2.5mm
Meter weight	0.490kg/m

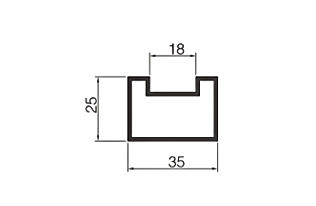

Model	FS25
Name
Wall thickness	1.4mm
Meter weight	0.478kg/m

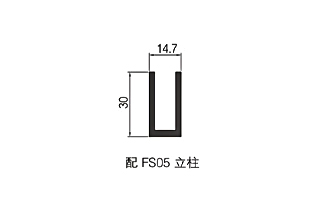

Model	FS18
Name	Connector
Wall thickness	2.5mm
Meter weight	0.480kg/m

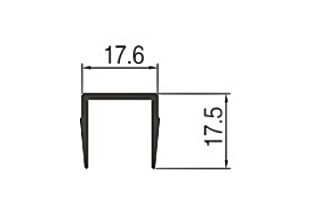

Model	FS26
Name
Wall thickness	1.2mm
Meter weight	0.152kg/m

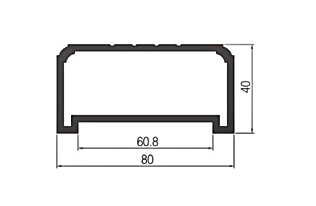

Model	FS19
Name	Facial tube
Wall thickness	3.0mm
Meter weight	1.915kg/m

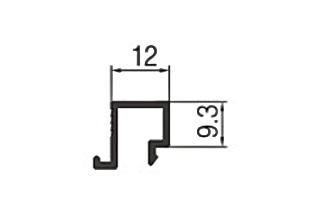

Model	FS27
Name
Wall thickness	1.2mm
Meter weight	0.141kg/m

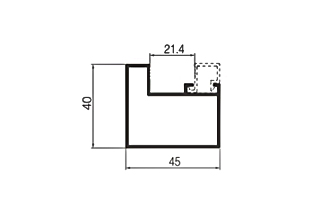

Model	FS28
Name
Wall thickness	1.2mm
Meter weight	0.578kg/m

Model	FS01F
Name
Wall thickness	1.8mm
Meter weight	0.949kg/m

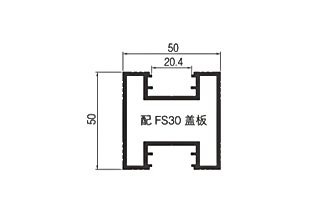

Model	FS29
Name
Wall thickness	1.8mm
Meter weight	1.235kg/m

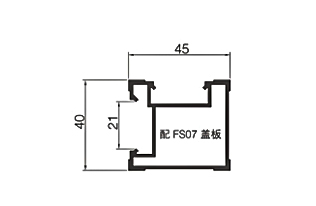

Model	FS03A
Name
Wall thickness	1.2mm
Meter weight	0.740kg/m

Model	FS30
Name
Wall thickness	0.7mm
Meter weight	0.096kg/m

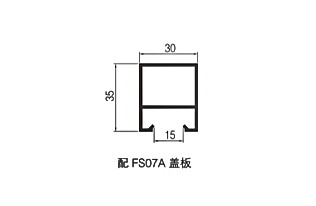

Model	FS05C
Name
Wall thickness	1.3mm
Meter weight	0.493kg/m

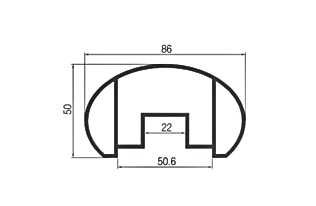

Model	FS31
Name
Wall thickness	1.8mm
Meter weight	1.630kg/m

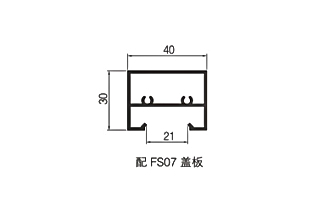

Model	FS05E
Name
Wall thickness	1.2mm
Meter weight	0.561kg/m

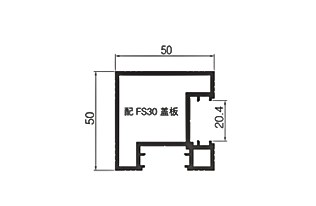

Model	FS32
Name
Wall thickness	1.8mm
Meter weight	1.217kg/m

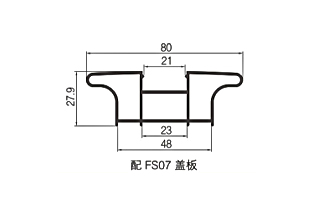

Model	FS034
Name
Wall thickness	1.2mm
Meter weight	0.794kg/m

Model	FS33
Name
Wall thickness	2.5mm
Meter weight	0.439kg/m

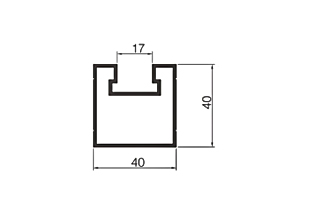

Model	FS8002
Name
Wall thickness	1.5mm
Meter weight	0.772kg/m

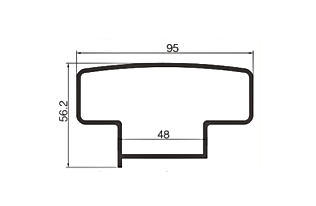

Model	FS01E
Name
Wall thickness	2.0mm
Meter weight	1.492kg/m

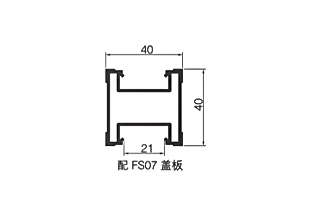

Model	FS04C
Name
Wall thickness	1.3mm
Meter weight	0.80kg/m

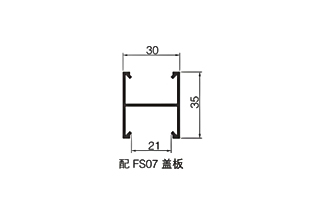

Model	FS05D
Name
Wall thickness	1.2mm
Meter weight	0.388kg/m

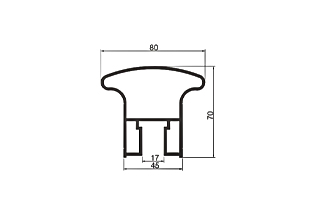

Model	FS8001
Name
Wall thickness	2.0mm
Meter weight	1.839kg/m

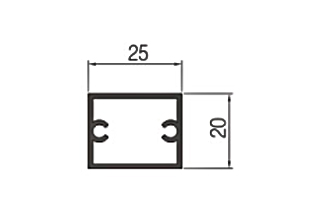

Model	FS06A
Name
Wall thickness	1.2mm
Meter weight	0.332kg/m
