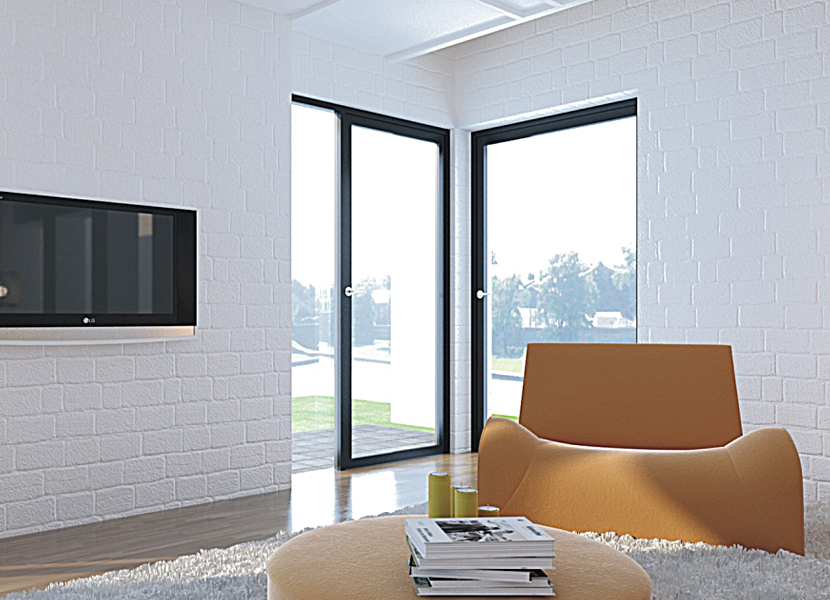

SKBF Side-hung Door aluminum extrusion profile

Side-hung Door

Inquiry Now

PREV：No previous article NEXT：P45 Side-hung Door frame powder coating aluminum profiles

Product Description

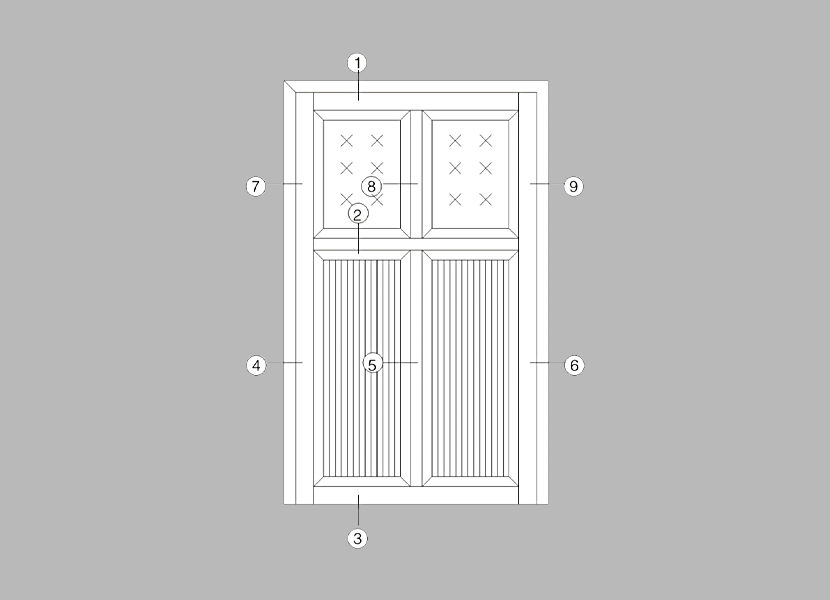

Node Drawing

Simple Drawing

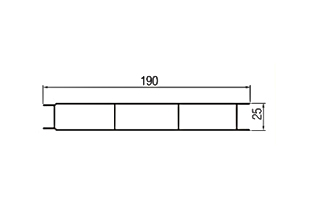

Model	SKBF01
Name	Buckle plate
Wall thickness	0.9mm
Meter weight	1.094kg/m

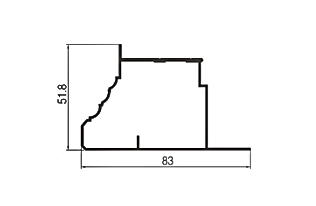

Model	SKBF05
Name	Inner open border
Wall thickness	1.0mm
Meter weight	0.692kg/m

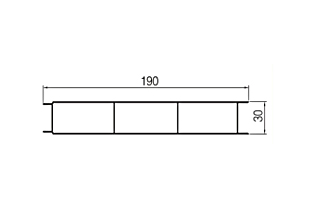

Model	SKBF02
Name	Buckle plate
Wall thickness	0.9mm
Meter weight	1.133kg/m

Model	SKBF07
Name	Door frame
Wall thickness	1.0mm
Meter weight	0.819kg/m

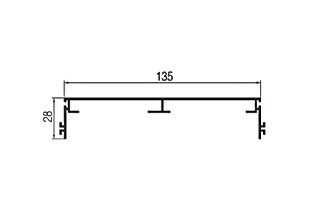

Model	SKBF03A
Name	Door plate
Wall thickness	1.1mm
Meter weight	0.847kg/m

Model	SKBF08
Name	Middle waist
Wall thickness	1.0mm
Meter weight	0.667kg/m

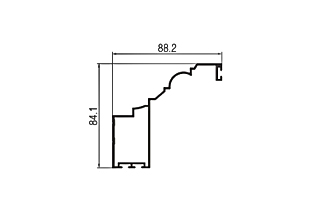

Model	SKBF03B
Name	Door outsourcing
Wall thickness	1.2mm
Meter weight	0.931kg/m

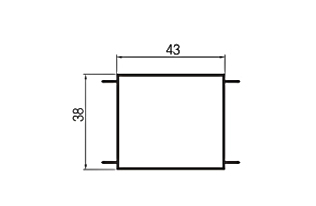

Model	SKBF09
Name	Middle waist
Wall thickness	0.8mm
Meter weight	0.394kg/m

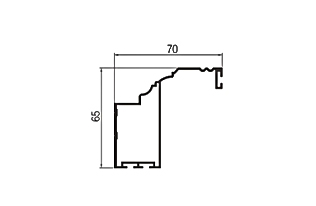

Model	SKBF03C
Name	Door bag
Wall thickness	1.1mm
Meter weight	0.773kg/m

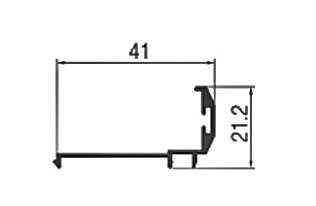

Model	SKBF11
Name	Buckle plate
Wall thickness	0.9mm
Meter weight	0.215kg/m

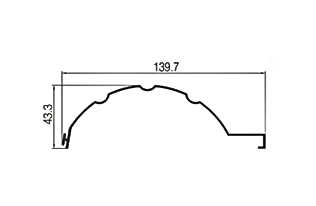

Model	SKBF03D
Name	Roman column
Wall thickness	1.0mm
Meter weight	0.560kg/m

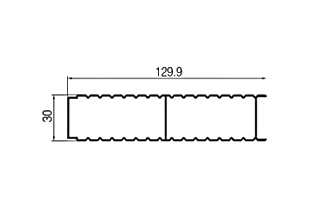

Model	SKBF14
Name	Buckle plate
Wall thickness	0.9mm
Meter weight	0.932kg/m

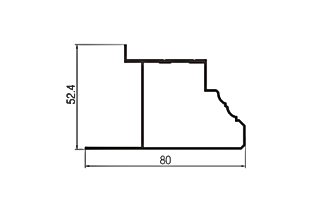

Model	SKBF04
Name	Outer border
Wall thickness	1.0mm
Meter weight	0.701kg/m

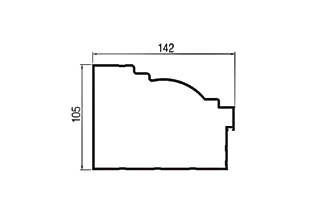

Model	SKBF15A
Name	Door frame
Wall thickness	1.7mm
Meter weight	2.257kg/m

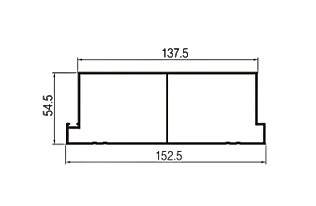

Model	SKBF15B
Name	Large middle waist
Wall thickness	1.4mm
Meter weight	1.708kg/m

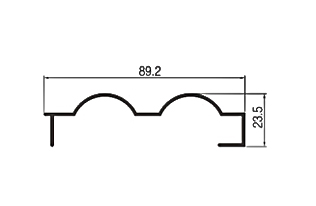

Model	SKBF8001
Name	Pressure line
Wall thickness	1.2mm
Meter weight	0.462kg/m

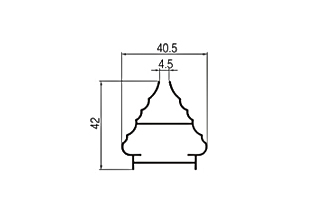

Model	SKBF19-4.5
Name	lace
Wall thickness	0.65mm
Meter weight	0.281kg/m

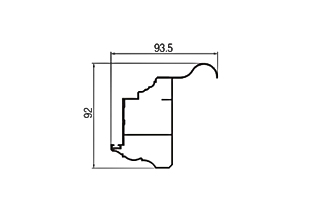

Model	SKBF8005
Name	Outer border
Wall thickness	1.0mm
Meter weight	1.038kg/m

Model	SKBF19-10
Name	lace
Wall thickness	0.65mm
Meter weight	0.282kg/m

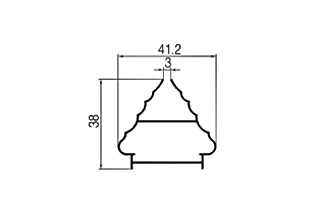

Model	SKBF8003
Name	lace
Wall thickness	0.55mm
Meter weight	0.230kg/m

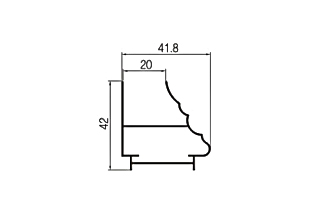

Model	SKBF19-20
Name	lace
Wall thickness	0.65mm
Meter weight	0.283kg/m

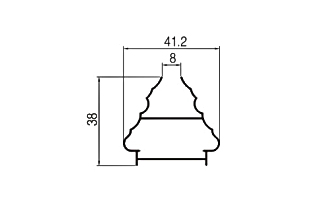

Model	SKBF8008
Name	lace
Wall thickness	0.55mm
Meter weight	0.230kg/m

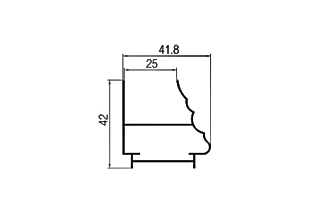

Model	SKBF19-25
Name	lace
Wall thickness	0.65mm
Meter weight	0.281kg/m

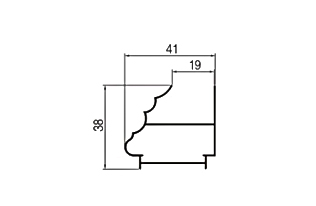

Model	SKBF8019
Name	lace
Wall thickness	0.55mm
Meter weight	0.240kg/m

Model	SKBF19-30
Name	lace
Wall thickness	0.65mm
Meter weight	0.295kg/m

Model	SKBF8024
Name	lace
Wall thickness	0.55mm
Meter weight	0.231kg/m

Model	SKBF19-35
Name	lace
Wall thickness	0.65mm
Meter weight	0.286kg/m

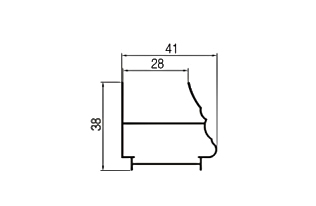

Model	SKBF8028
Name	lace
Wall thickness	0.55mm
Meter weight	0.234kg/m

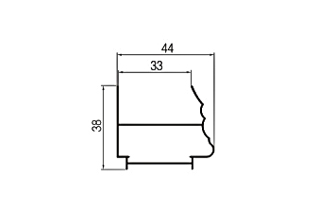

Model	SKBF8033
Name	lace
Wall thickness	0.55mm
Meter weight	0.242kg/m

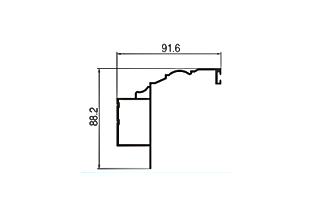

Model	SKBF8050
Name	Small side
Wall thickness	1.2mm
Meter weight	0.964kg/m

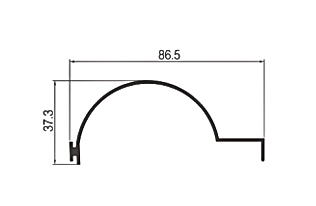

Model	SKBF8051
Name	Small Roman column
Wall thickness	1.2mm
Meter weight	0.453kg/m
