Product Description

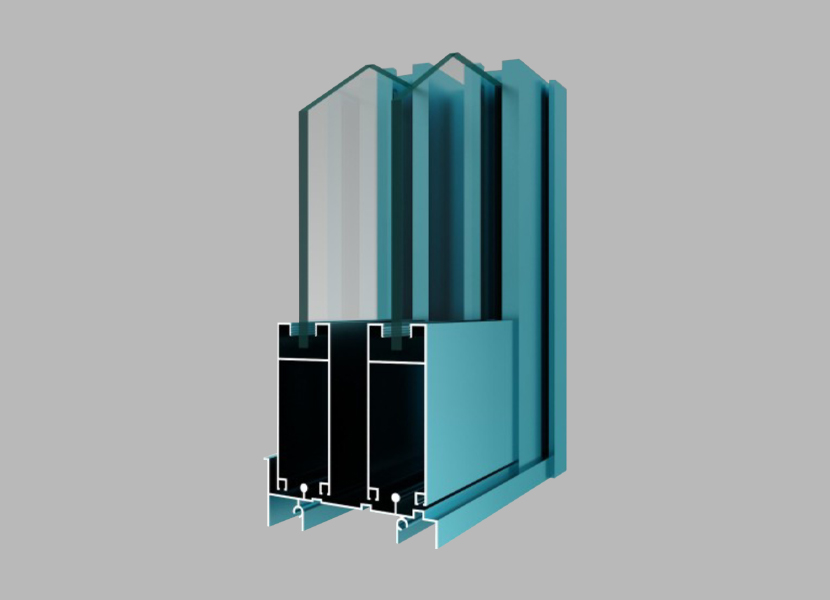

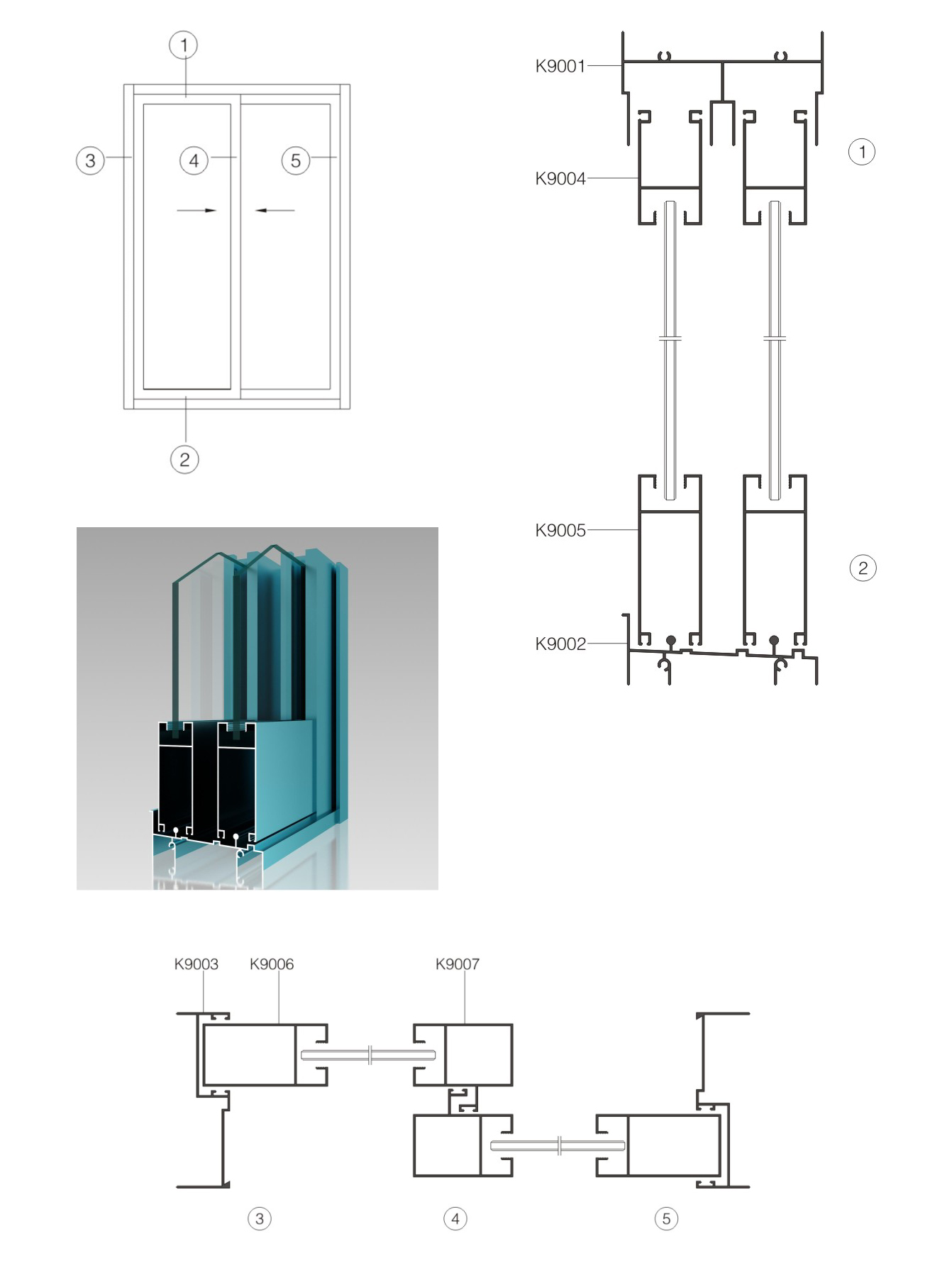

Node Drawing

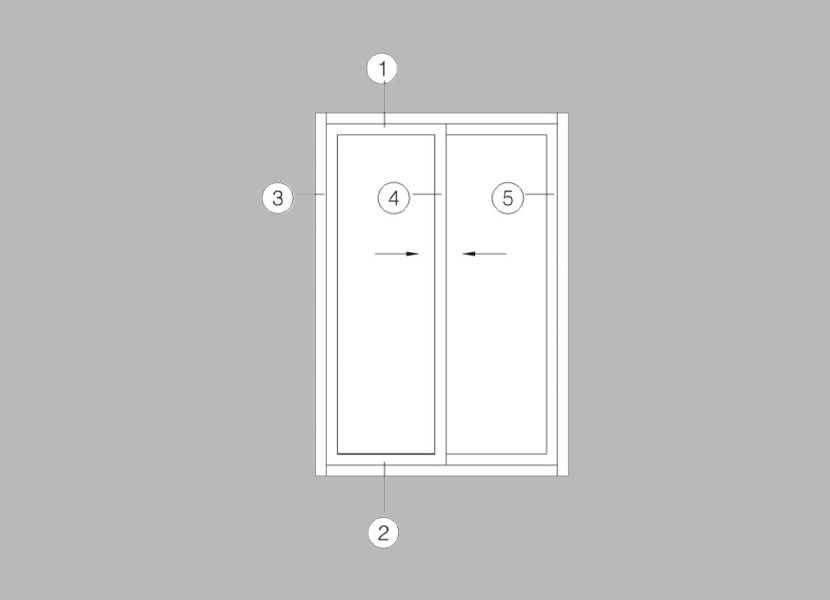

Simple Drawing

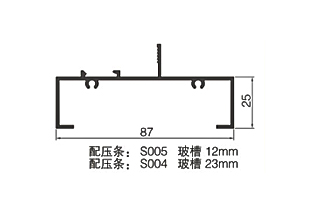

Model	K9000
Name	Fixed frame
Wall thickness	1.4mm
Meter weight	0.72kg/m

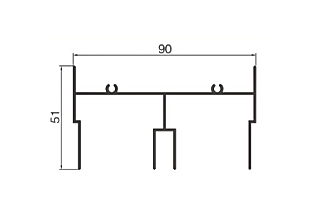

Model	K9001
Name	Slippery
Wall thickness	1.0mm
Meter weight	0.754kg/m

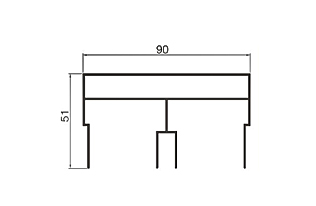

Model	K9001A
Name	Slippery
Wall thickness	0.9mm
Meter weight	0.849kg/m

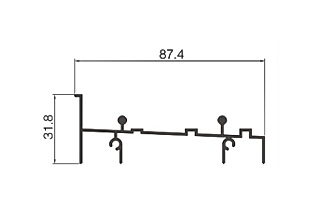

Model	K9002
Name	Sliding
Wall thickness	1.0mm
Meter weight	0.591kg/m

Model	K9002A
Name	Sliding
Wall thickness	1.4mm
Meter weight	0.800kg/m

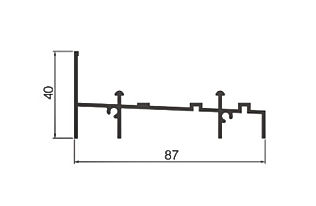

Model	K9002B
Name	Sliding
Wall thickness	1.4mm
Meter weight	0.850kg/m

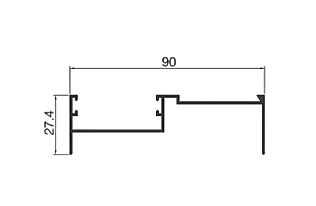

Model	K9003
Name	Edge seal
Wall thickness	1.0mm
Meter weight	0.492kg/m

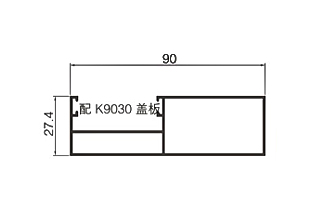

Model	K9003A
Name	Edge seal
Wall thickness	0.9mm
Meter weight	0.660kg/m

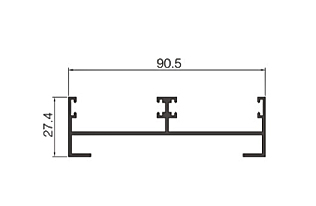

Model	K9003B
Name	Edge seal
Wall thickness	1.4mm
Meter weight	0.765kg/m

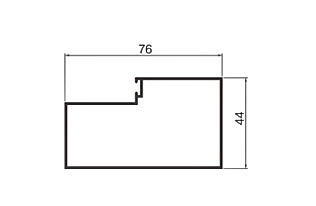

Model	K9003C
Name	Edge seal
Wall thickness	1.0mm
Meter weight	0.652kg/m

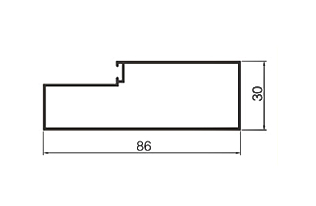

Model	K9003D
Name	Edge seal
Wall thickness	0.9mm
Meter weight	0.568kg/m

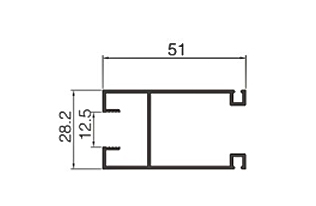

Model	K9004
Name	Above
Wall thickness	1.0/1.4mm
Meter weight	0.461/0.6kg/m

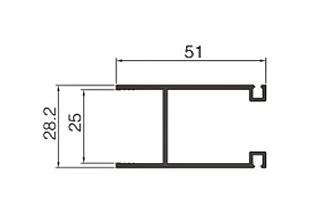

Model	K9004A
Name	Above the hollow
Wall thickness	1.4mm
Meter weight	0.530kg/m

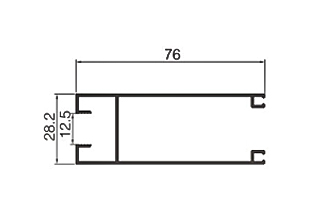

Model	K9005
Name	Below
Wall thickness	1.0/1.4mm
Meter weight	0.596/0.792kg/m

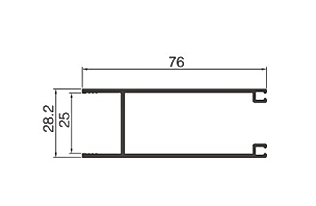

Model	K9005A
Name	Hollow below
Wall thickness	1.4mm
Meter weight	0.720kg/m

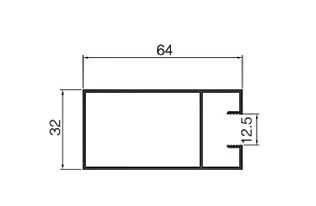

Model	K9006
Name	Light enterprise
Wall thickness	1.0/1.4mm
Meter weight	0.578/0.8kg/m

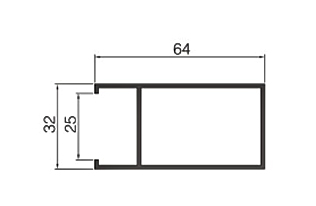

Model	K9006A
Name	Central light enterprise
Wall thickness	1.4mm
Meter weight	0.720kg/m

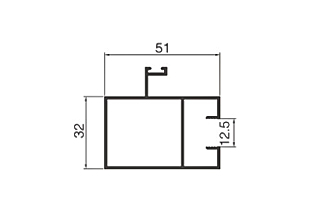

Model	K9007
Name	Hook enterprise
Wall thickness	1.0/1.4mm
Meter weight	0.580/0.78kg/m

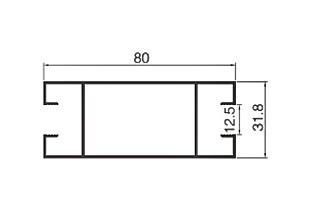

Model	K9006B
Name
Wall thickness	0.9mm
Meter weight	0.661kg/m

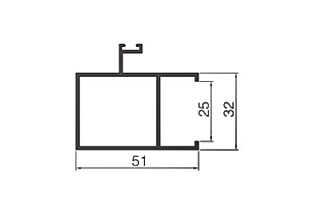

Model	K9007A
Name	Central hook enterprise
Wall thickness	1.4mm
Meter weight	0.710kg/m

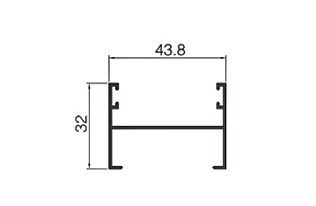

Model	K9008
Name	Closing
Wall thickness	1.0mm
Meter weight	0.349kg/m

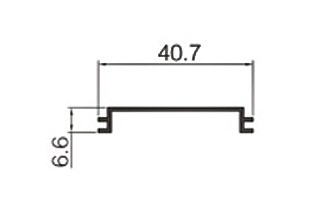

Model	K9030
Name	Board
Wall thickness	0.9mm
Meter weight	0.139kg/m

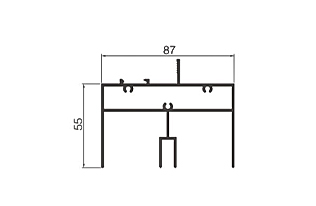

Model	K9011
Name	Solid slide
Wall thickness	1.4mm
Meter weight	1.490kg/m

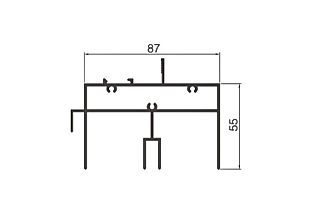

Model	K9011B
Name	Solid slide
Wall thickness	1.4mm
Meter weight	1.56kg/m

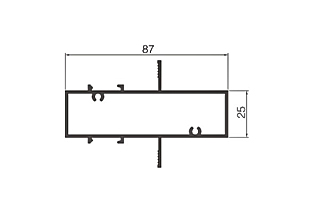

Model	K9020
Name	Middle column
Wall thickness	1.4mm
Meter weight	1.08kg/m

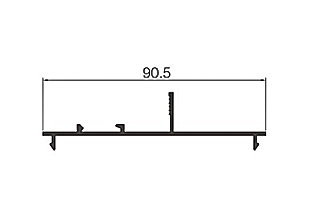

Model	K9030A
Name	Cover
Wall thickness	1.4mm
Meter weight	0.48kg/m

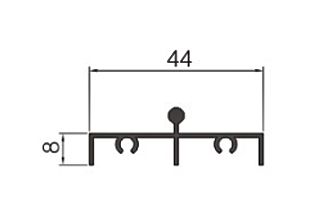

Model	K9032
Name	Single track slip
Wall thickness	1.0mm
Meter weight	0.268kg/m

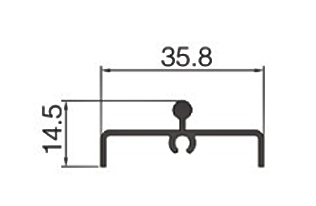

Model	K9032A
Name	Single track slip
Wall thickness	1.0mm
Meter weight	0.200kg/m

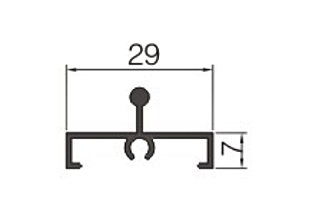

Model	K9033
Name	Single track slip
Wall thickness	1.0mm
Meter weight	0.19kg/m
