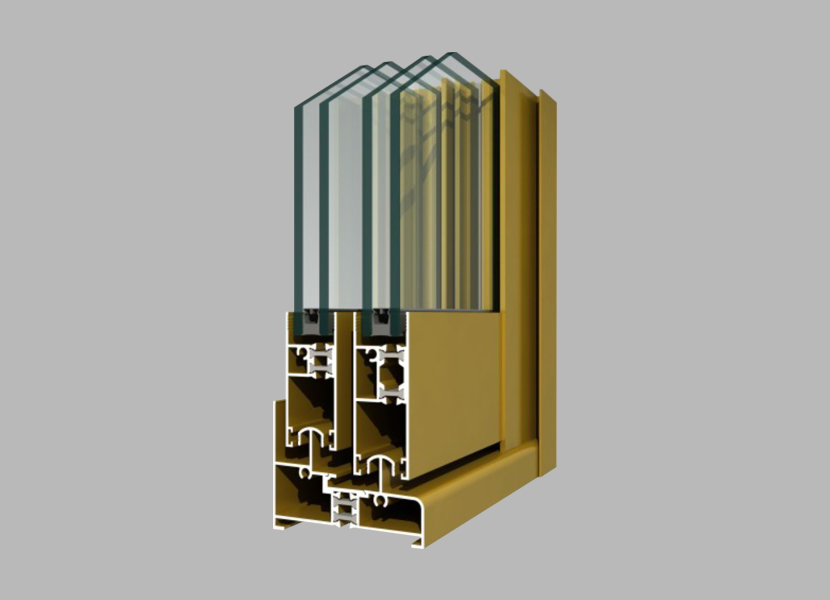

80GT Thermal Break Aluminium Profile

Thermal Break Aluminium Profile

Inquiry Now

PREV：83GT Thermal Break Aluminium Profile NEXT：78GT Thermal Break Aluminium Profile

Product Description

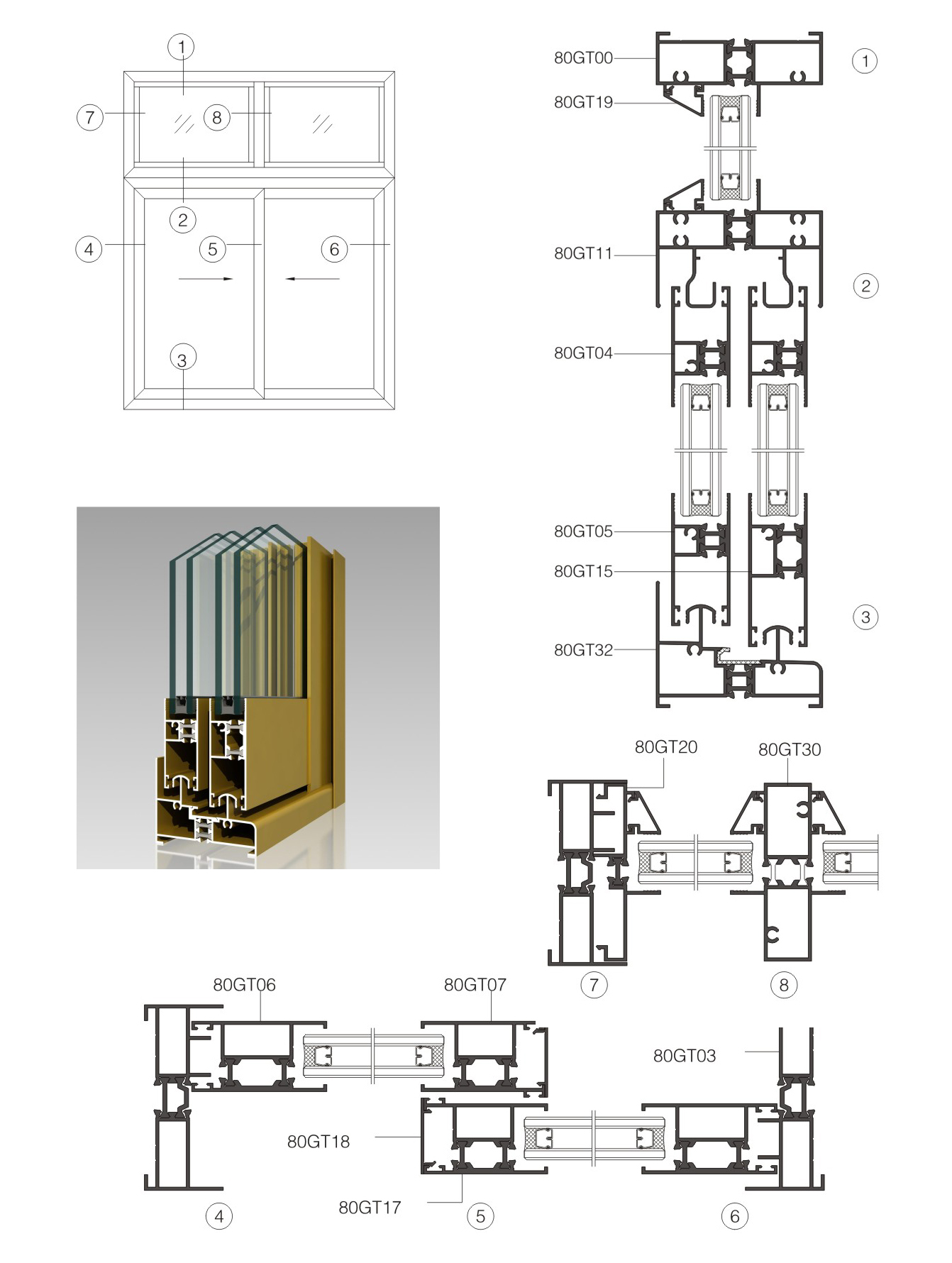

Node Drawing

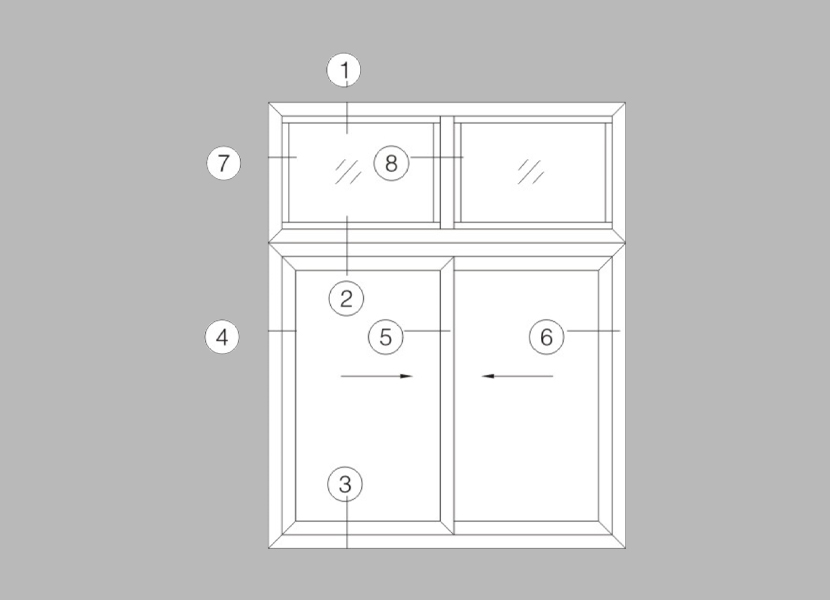

Simple Drawing

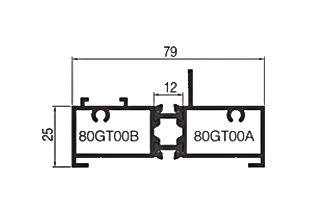

Model	80GT00
Name	Fixed on
Wall thickness	1.4mm
Meter weight	1.246kg/m

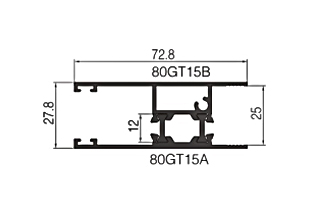

Model	80GT15
Name	Big bottom
Wall thickness	1.4mm
Meter weight	1.086kg/m

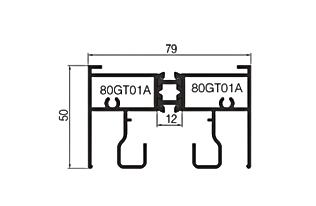

Model	80GT01
Name	Slide up
Wall thickness	1.4mm
Meter weight	1.703kg/m

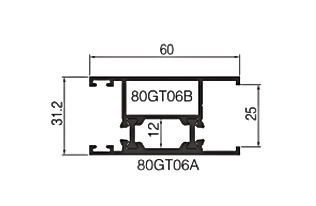

Model	80GT06
Name	Light Enterprise
Wall thickness	1.4mm
Meter weight	1.047kg/m

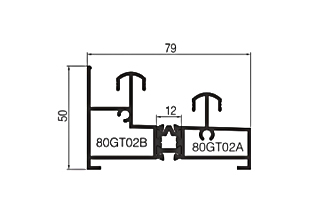

Model	80GT02
Name	Down
Wall thickness	1.4mm
Meter weight	1.489kg/m

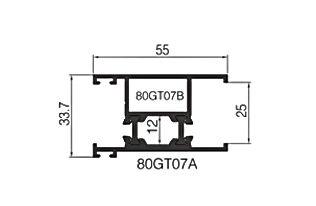

Model	80GT07
Name	Hooked
Wall thickness	1.4mm
Meter weight	0.982kg/m

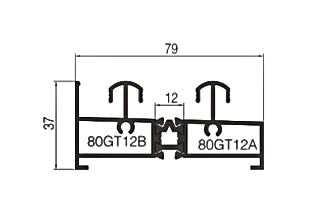

Model	80GT12
Name	Down
Wall thickness	1.4mm
Meter weight	1.420kg/m

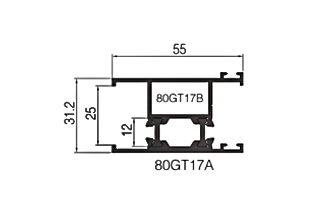

Model	80GT17
Name	Outliers
Wall thickness	1.4mm
Meter weight	0.982kg/m

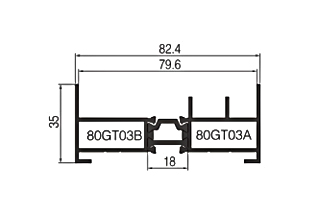

Model	80GT03
Name	Side seal
Wall thickness	1.4mm
Meter weight	1.163kg/m

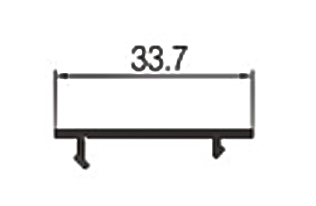

Model	80GT18
Name	Hook cover
Wall thickness	1.2mm
Meter weight	0.135kg/m

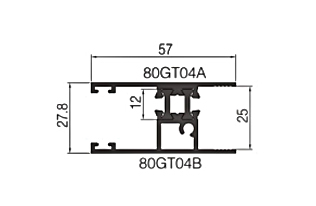

Model	80GT04
Name	Above
Wall thickness	1.4mm
Meter weight	0.897kg/m

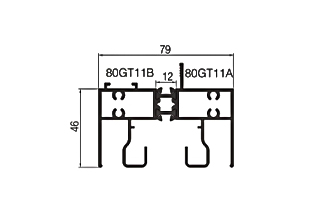

Model	80GT11
Name	Solid slide
Wall thickness	1.4mm
Meter weight	1.811kg/m

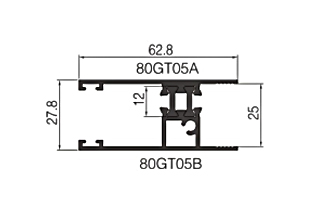

Model	80GT05
Name	Small bottom
Wall thickness	1.4mm
Meter weight	0.917kg/m

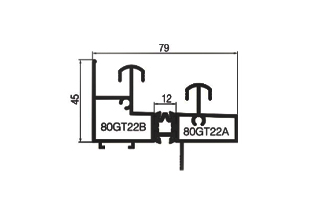

Model	80GT22
Name	solid Down
Wall thickness	1.4mm
Meter weight	1.528kg/m

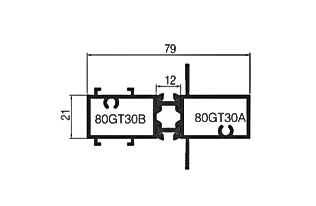

Model	80GT30
Name	Center column
Wall thickness	1.4mm
Meter weight	1.278kg/m

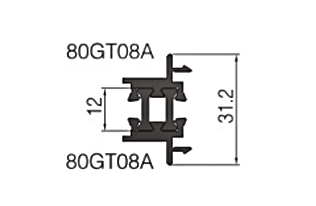

Model	80GT08
Name	Inner fan closing
Wall thickness
Meter weight	0.508kg/m

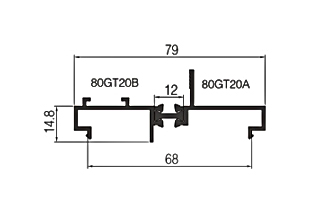

Model	80GT20
Name	Edge seal cover
Wall thickness	1.4mm
Meter weight	0.683kg/m

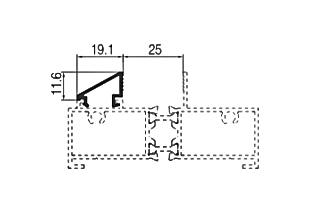

Model	80GT19
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.140kg/m

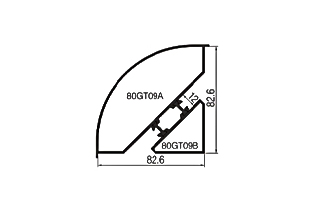

Model	80GT09
Name	90° Corner
Wall thickness	1.4mm
Meter weight	1.857kg/m

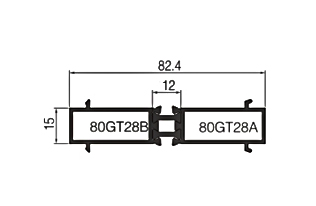

Model	80GT28
Name	Fight
Wall thickness	1.4mm
Meter weight	0.97kg/m

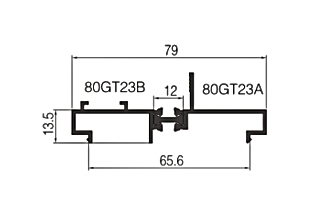

Model	80GT23
Name	Slide up cover
Wall thickness	1.4mm
Meter weight	0.686kg/m

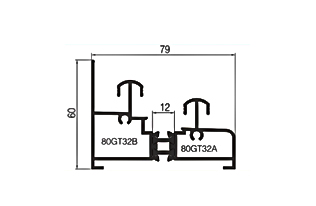

Model	80GT32
Name	Down
Wall thickness	1.4mm
Meter weight	1.560kg/m

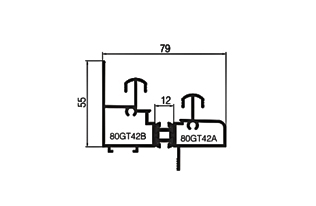

Model	80GT42
Name	Solid Down
Wall thickness	1.4mm
Meter weight	1.577kg/m
