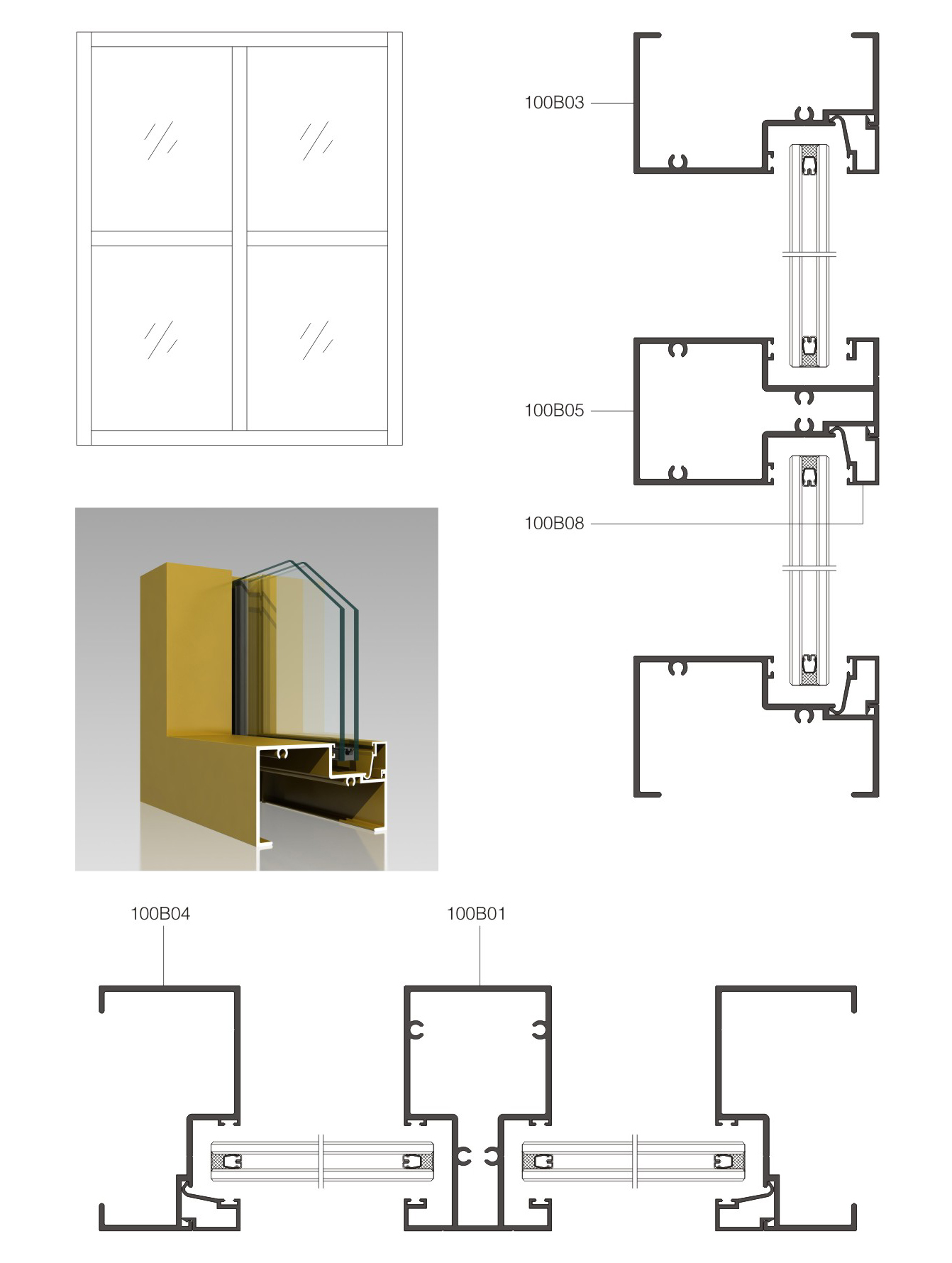

| Model |
100B01 |
| Name |
Middle column |
| Wall thickness |
2.3mm |
| Meter weight |
2.547kg/m |
|
 |
| Model |
100B07 |
| Name |
Open fan |
| Wall thickness |
1.5mm |
| Meter weight |
0.777kg/m |
|
 |
| Model |
100B02 |
| Name |
Cover |
| Wall thickness |
1.0mm |
| Meter weight |
0.158kg/m |
|
 |
| Model |
100B09 |
| Name |
link |
| Wall thickness |
2.3mm |
| Meter weight |
0.139kg/m |
|
 |
| Model |
100B03 |
| Name |
Horizontal frame |
| Wall thickness |
2.3mm |
| Meter weight |
1.543kg/m |
|
 |
| Model |
100B10 |
| Name |
Outer frame |
| Wall thickness |
2.0mm |
| Meter weight |
0.857kg/m |
|
 |
| Model |
100B04 |
| Name |
Mullion |
| Wall thickness |
2.3mm |
| Meter weight |
1.448kg/m |
|
 |
| Model |
100B11 |
| Name |
Open fan |
| Wall thickness |
1.5mm |
| Meter weight |
0.748kg/m |
|
 |
| Model |
100B05 |
| Name |
Middle column |
| Wall thickness |
2.3mm |
| Meter weight |
2.378kg/m |
|
 |
| Model |
100B12 |
| Name |
Stop block |
| Wall thickness |
1.2mm |
| Meter weight |
0.065kg/m |
|
 |
| Model |
100B08 |
| Name |
Pressure line |
| Wall thickness |
1.4mm |
| Meter weight |
0.262kg/m |
|
 |
| Model |
100B06 |
| Name |
Outer frame |
| Wall thickness |
1.5mm |
| Meter weight |
0.604kg/m |
|
 |
