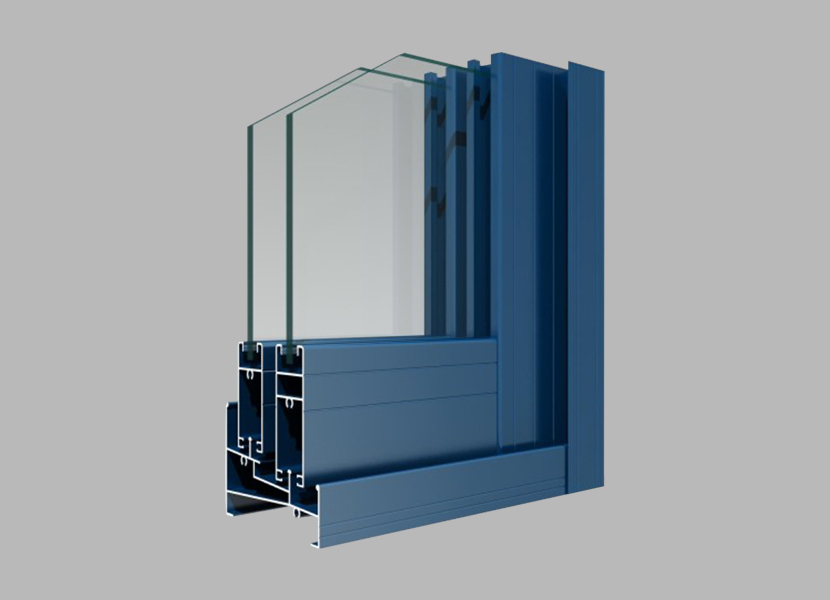

A80 sliding window powder coating extrusion profile

Sliding Window

Inquiry Now

Product Description

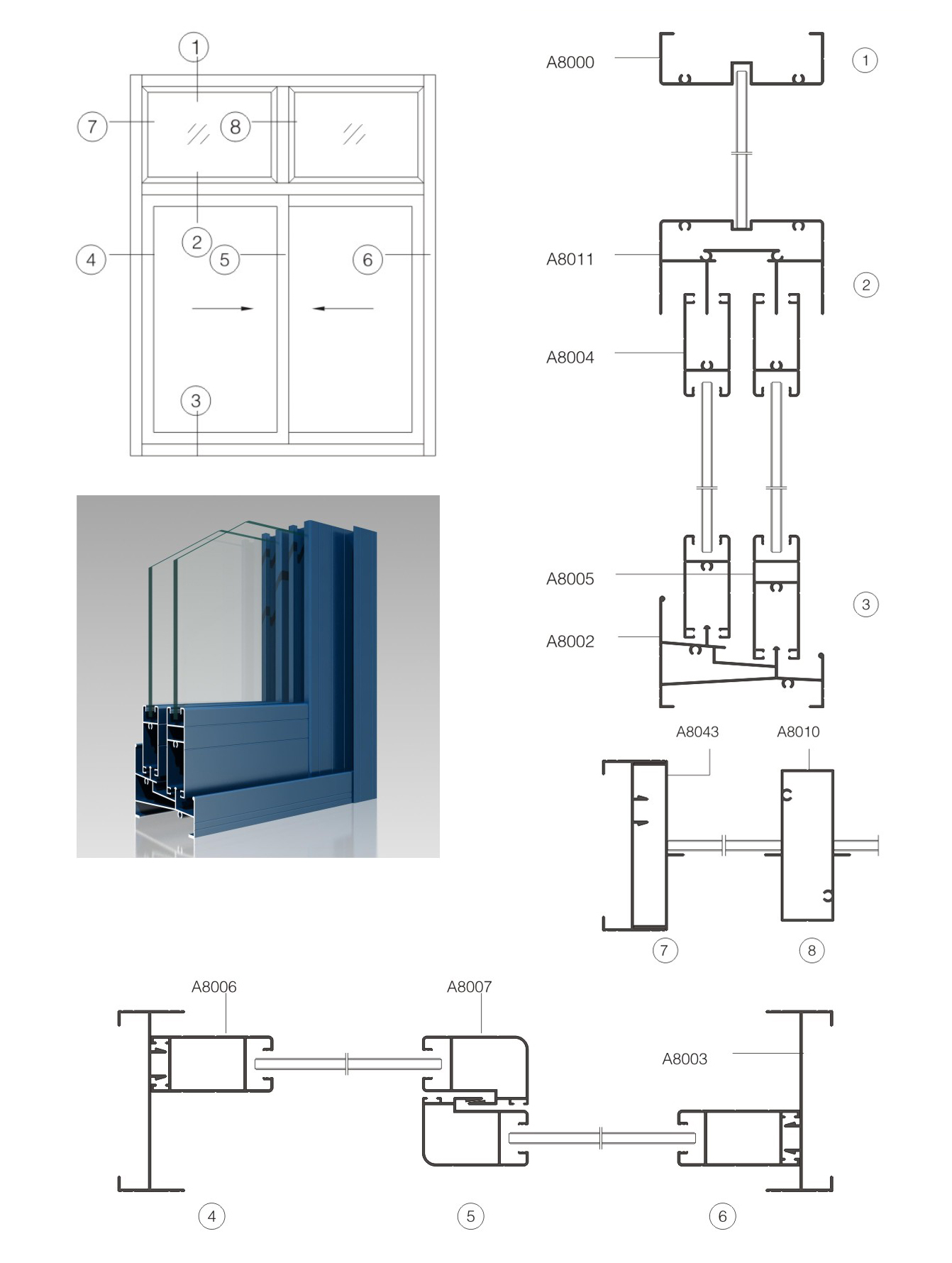

Node Drawing

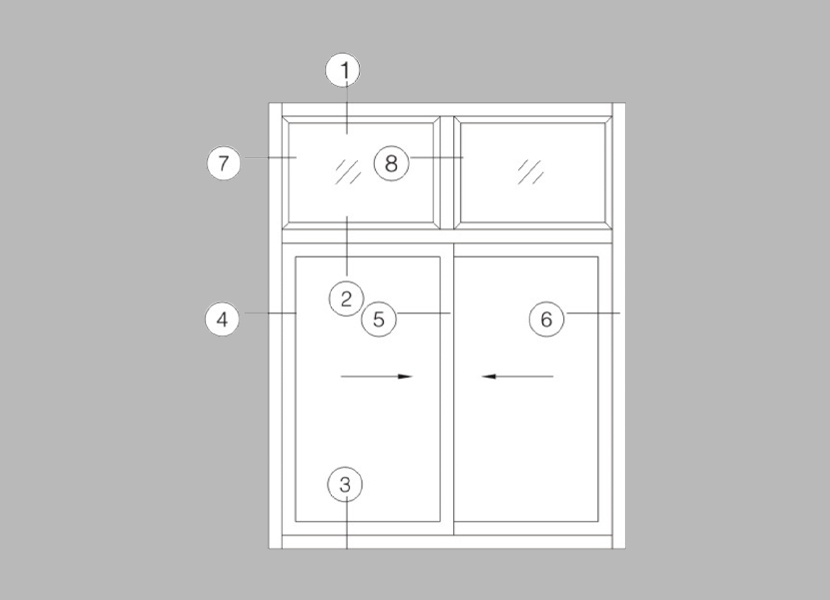

Simple Drawing

Model	A8001
Name	Slippery
Wall thickness	1.1mm
Meter weight	0.68kg/m

Model	A8002
Name	Sliding
Wall thickness	1.0mm
Meter weight	0.773kg/m

Model	A8002A
Name	High side slip
Wall thickness	1.1mm
Meter weight	0.855kg/m

Model	A8002B
Name	Sliding
Wall thickness	1.1mm
Meter weight	0.795kg/m

Model	A8003
Name	Edge seal
Wall thickness	1.1mm
Meter weight	0.500kg/m

Model	A8003A
Name	Edge seal
Wall thickness	1.0mm
Meter weight	0.484kg/m

Model	A8004
Name	Above
Wall thickness	1.0mm
Meter weight	0.418kg/m

Model	A8004A
Name	Above
Wall thickness	1.0mm
Meter weight	0.420kg/m

Model	A8005
Name	Big under
Wall thickness	1.0mm
Meter weight	0.526kg/m

Model	A8005A
Name	Big under
Wall thickness	1.0mm
Meter weight	0.528kg/m

Model	A8006
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.535kg/m

Model	A8006A
Name	Light enterprise
Wall thickness	1.0mm
Meter weight	0.484kg/m

Model	A8007
Name	Hook enterprise
Wall thickness	1.0mm
Meter weight	0.499kg/m

Model	A8007A
Name	Hook enterprise
Wall thickness	1.1mm
Meter weight	0.566kg/m

Model	A8007B
Name	Hook enterprise
Wall thickness	1.0mm
Meter weight	0.500kg/m

Model	A8008
Name	Closing
Wall thickness	1.0mm
Meter weight	0.116kg/m

Model	A8009
Name	90°Corner
Wall thickness	1.0mm
Meter weight	0.842kg/m

Model	A8000
Name	Fixed on
Wall thickness	1.1mm
Meter weight	0.520kg/m

Model	A800K
Name	Open tube
Wall thickness	0.9mm
Meter weight	0.290kg/m

Model	A8011
Name	Middle waist
Wall thickness	1.1mm
Meter weight	1.011kg/m

Model	A8010
Name	Middle column
Wall thickness	1.0mm
Meter weight	0.606kg/m

Model	A8022
Name	Flat slide
Wall thickness	0.9mm
Meter weight	0.441kg/m

Model	A8028
Name	Word
Wall thickness	0.9mm
Meter weight	0.344kg/m

Model	A8043
Name	Cover
Wall thickness	1.0mm
Meter weight	0.320kg/m
