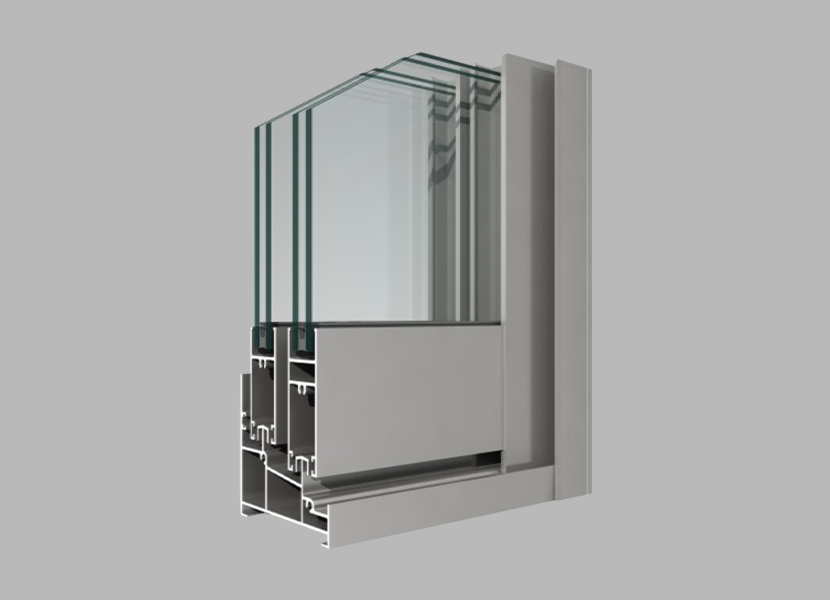

B80 sliding window industrial extrusion profile

Sliding Window

Inquiry Now

PREV：K80 sliding window aluminum extrusion NEXT：A80 sliding window powder coating extrusion profile

Product Description

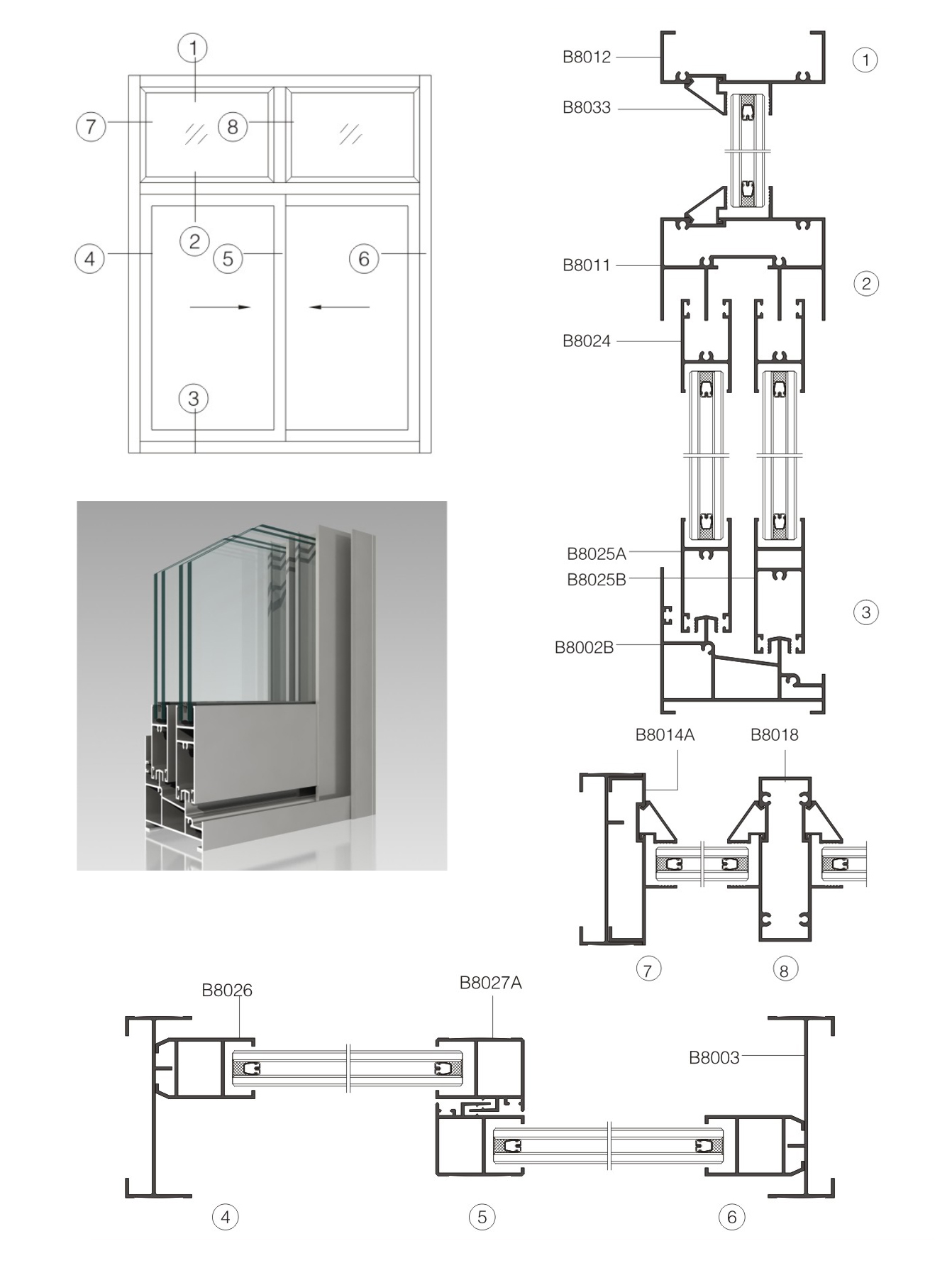

Node Drawing

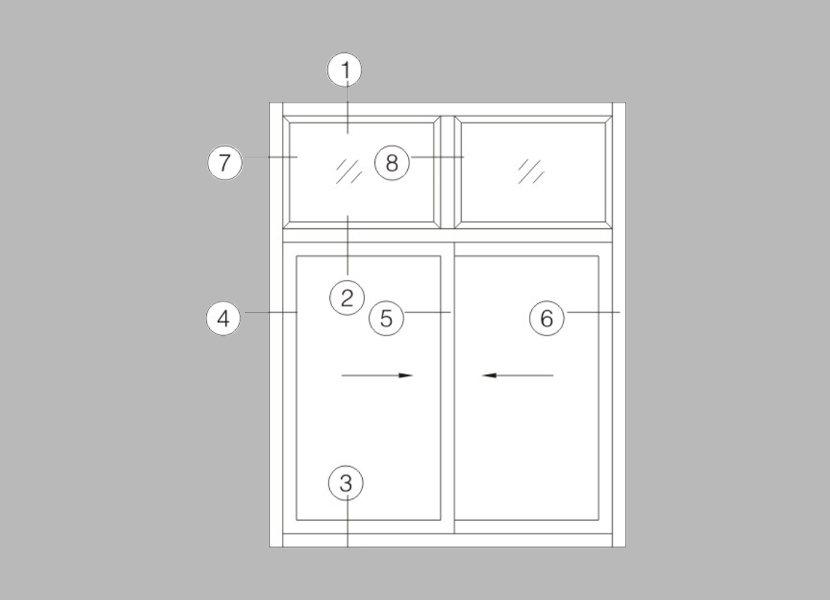

Simple Drawing

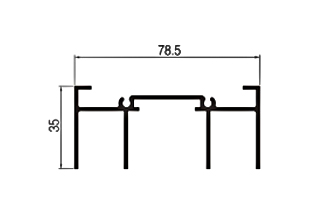

Model	B8001
Name	Slippery
Wall thickness	1.4mm
Meter weight	0.880kg/m

Model	B8002A
Name	Sliding
Wall thickness	1.4mm
Meter weight	1.070kg/m

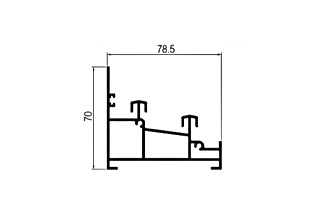

Model	B8002B
Name	Sliding
Wall thickness	1.4mm
Meter weight	1.448kg/m

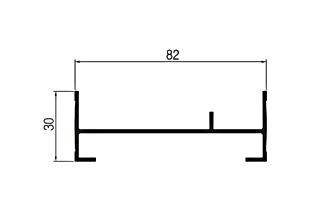

Model	B8003
Name	Edge seal
Wall thickness	1.4mm
Meter weight	0.660kg/m

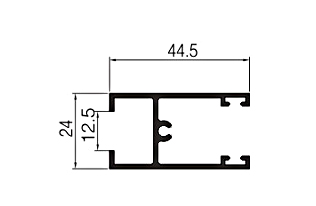

Model	B8004
Name	Above
Wall thickness	1.4mm
Meter weight	0.536kg/m

Model	B8005A
Name	Below
Wall thickness	1.4mm
Meter weight	0.610kg/m

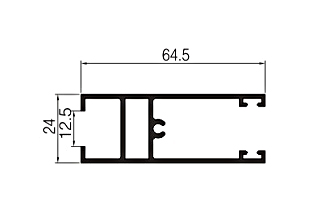

Model	B8005B
Name	Big under
Wall thickness	1.4mm
Meter weight	0.780kg/m

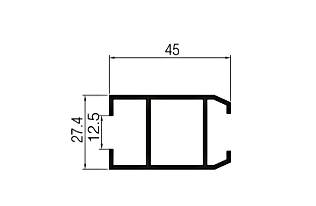

Model	B8006
Name	Light enterprise
Wall thickness	1.4mm
Meter weight	0.600kg/m

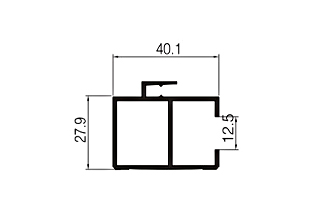

Model	B8007A
Name	Hook enterprise
Wall thickness	1.4mm
Meter weight	0.585kg/m

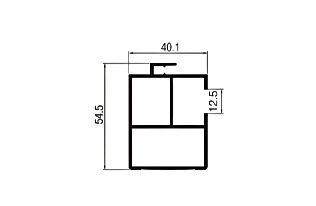

Model	B8007B
Name	Strengthen the enterprise
Wall thickness	1.4mm
Meter weight	0.890kg/m

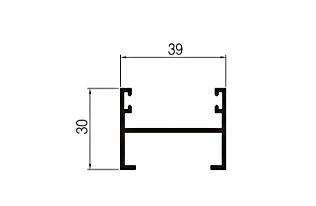

Model	B8008
Name	Inner fan closing
Wall thickness	1.4mm
Meter weight	0.440kg/m

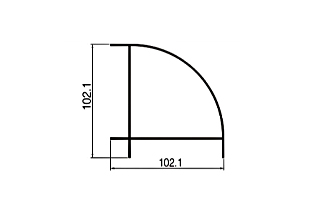

Model	B8009
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.390kg/m

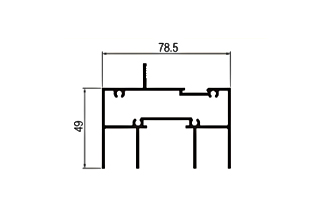

Model	B8011
Name	Middle waist
Wall thickness	1.4mm
Meter weight	1.390kg/m

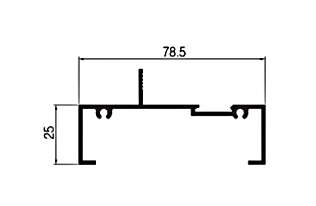

Model	B8012
Name	Fixed on
Wall thickness	1.4mm
Meter weight	0.670kg/m

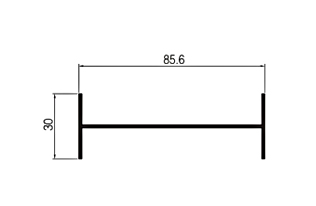

Model	B8013
Name	Word
Wall thickness	1.4mm
Meter weight	0.540kg/m

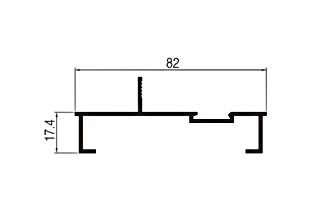

Model	B8014A
Name	Cover
Wall thickness	1.4mm
Meter weight	0.560kg/m

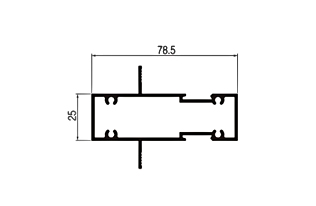

Model	B8018
Name	Middle waist
Wall thickness	1.4mm
Meter weight	1.06kg/m

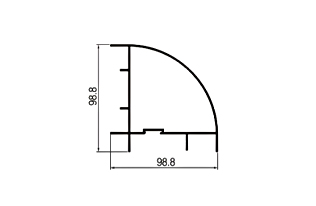

Model	B8019
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.479kg/m

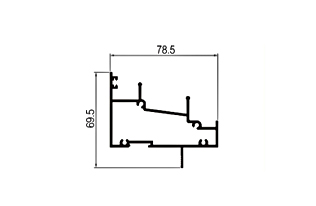

Model	B8022
Name	Belt slip
Wall thickness	1.4mm
Meter weight	1.250kg/m

Model	B8022B
Name	Belt slip
Wall thickness	1.4mm
Meter weight	1.442kg/m

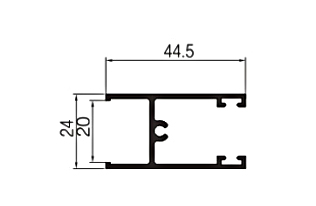

Model	B8024
Name	Above the hollow
Wall thickness	1.4mm
Meter weight	0.510kg/m

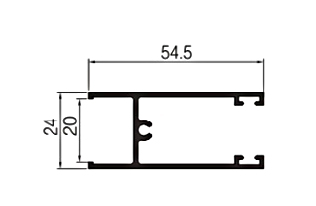

Model	B8025A
Name	Hollow below
Wall thickness	1.4mm
Meter weight	0.580kg/m

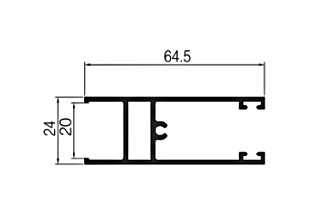

Model	B8025B
Name	Hollow large
Wall thickness	1.4mm
Meter weight	0.750kg/m

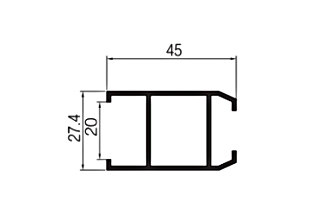

Model	B8026
Name	Hollow light enterprise
Wall thickness	1.4mm
Meter weight	0.570kg/m

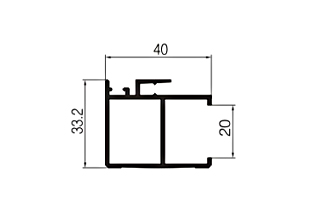

Model	B8027A
Name	Hollow hook
Wall thickness	1.4mm
Meter weight	0.590kg/m

Model	B8027B
Name	Hollow big hook
Wall thickness	1.4mm
Meter weight	0.900kg/m

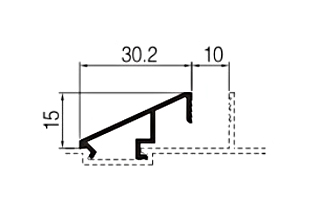

Model	B8032
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.180kg/m

Model	B8033
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.150kg/m

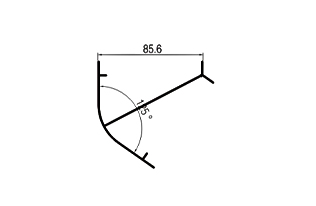

Model	B8039
Name	125°Corner
Wall thickness	1.4mm
Meter weight	0.872kg/m
