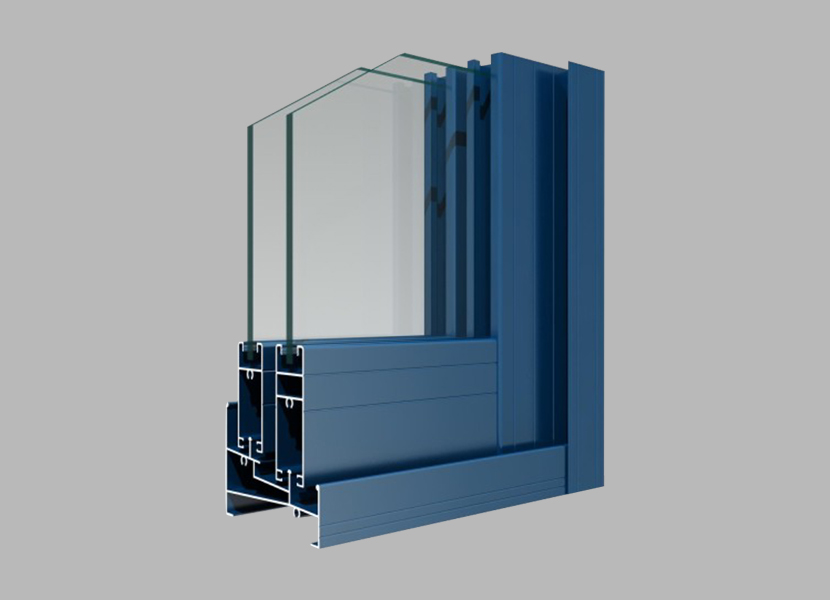

A80 sliding window powder coating extrusion profile

Sliding Window

Inquiry Now

PREV：B80 sliding window industrial extrusion profile NEXT：789 sliding window frame powder coating aluminum profiles

Product Description

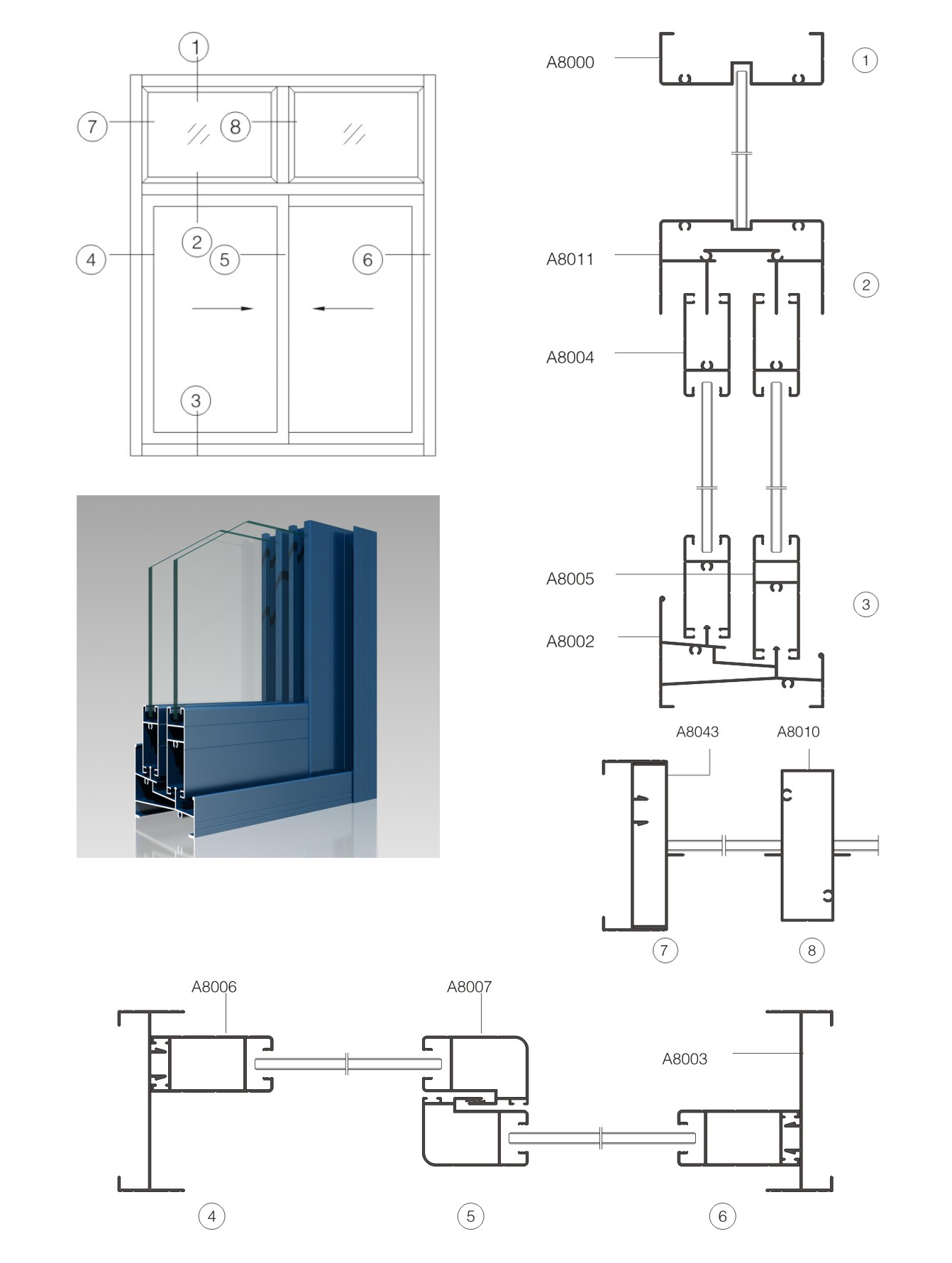

Node Drawing

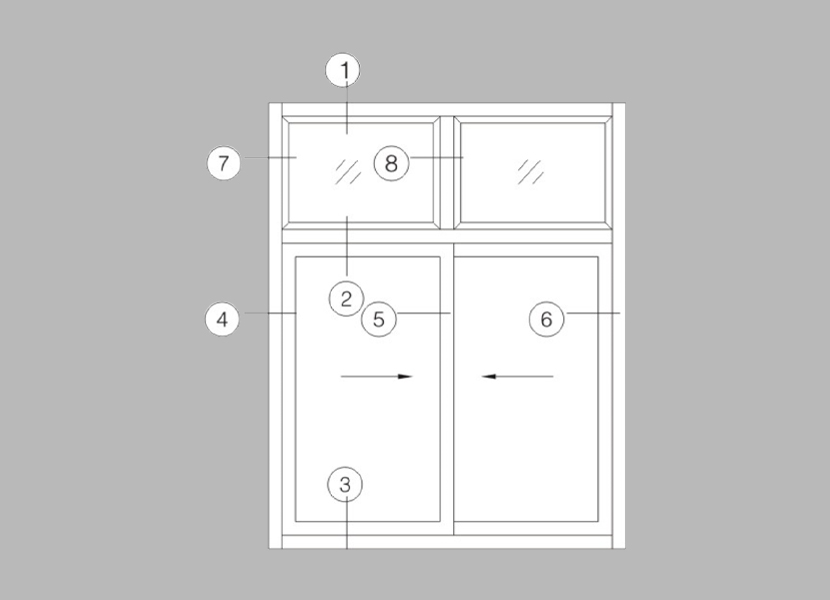

Simple Drawing

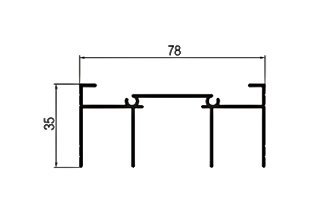

Model	A8001
Name	Slippery
Wall thickness	1.1mm
Meter weight	0.68kg/m

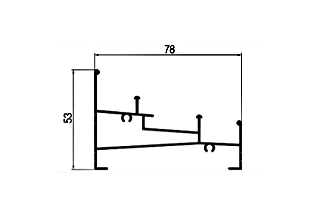

Model	A8002
Name	Sliding
Wall thickness	1.0mm
Meter weight	0.773kg/m

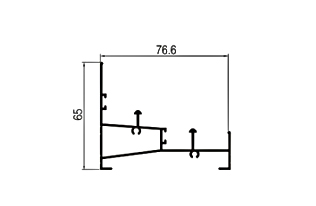

Model	A8002A
Name	High side slip
Wall thickness	1.1mm
Meter weight	0.855kg/m

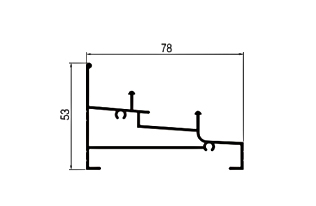

Model	A8002B
Name	Sliding
Wall thickness	1.1mm
Meter weight	0.795kg/m

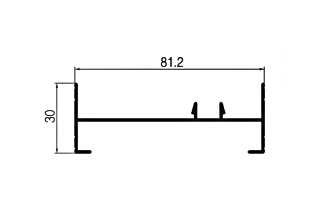

Model	A8003
Name	Edge seal
Wall thickness	1.1mm
Meter weight	0.500kg/m

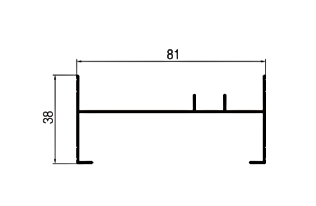

Model	A8003A
Name	Edge seal
Wall thickness	1.0mm
Meter weight	0.484kg/m

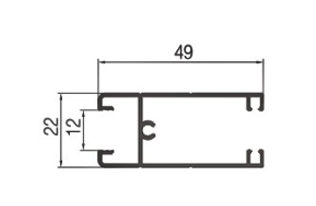

Model	A8004
Name	Above
Wall thickness	1.0mm
Meter weight	0.418kg/m

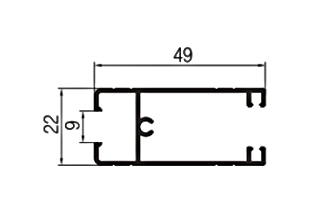

Model	A8004A
Name	Above
Wall thickness	1.0mm
Meter weight	0.420kg/m

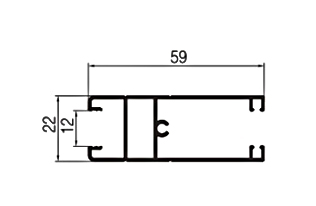

Model	A8005
Name	Big under
Wall thickness	1.0mm
Meter weight	0.526kg/m

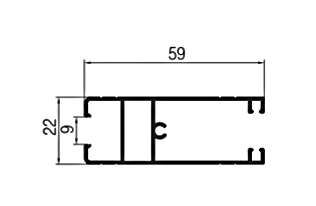

Model	A8005A
Name	Big under
Wall thickness	1.0mm
Meter weight	0.528kg/m

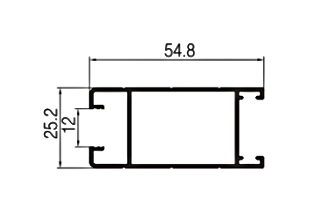

Model	A8006
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.535kg/m

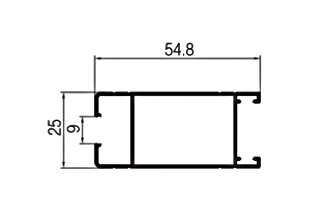

Model	A8006A
Name	Light enterprise
Wall thickness	1.0mm
Meter weight	0.484kg/m

Model	A8007
Name	Hook enterprise
Wall thickness	1.0mm
Meter weight	0.499kg/m

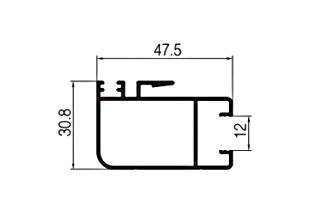

Model	A8007A
Name	Hook enterprise
Wall thickness	1.1mm
Meter weight	0.566kg/m

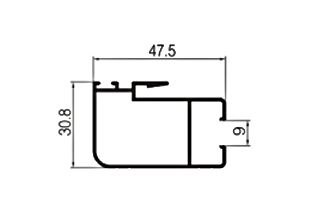

Model	A8007B
Name	Hook enterprise
Wall thickness	1.0mm
Meter weight	0.500kg/m

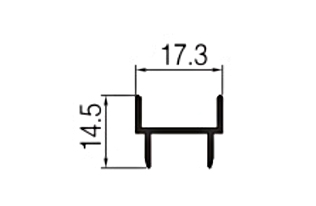

Model	A8008
Name	Closing
Wall thickness	1.0mm
Meter weight	0.116kg/m

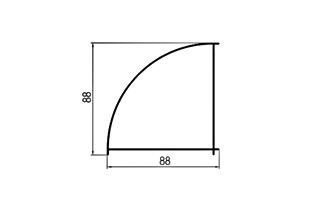

Model	A8009
Name	90°Corner
Wall thickness	1.0mm
Meter weight	0.842kg/m

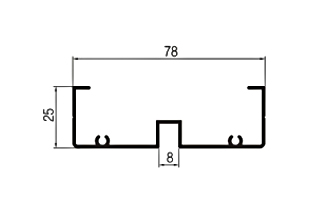

Model	A8000
Name	Fixed on
Wall thickness	1.1mm
Meter weight	0.520kg/m

Model	A800K
Name	Open tube
Wall thickness	0.9mm
Meter weight	0.290kg/m

Model	A8011
Name	Middle waist
Wall thickness	1.1mm
Meter weight	1.011kg/m

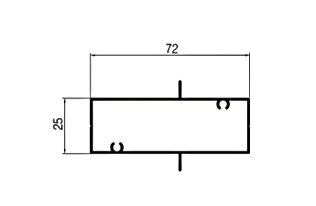

Model	A8010
Name	Middle column
Wall thickness	1.0mm
Meter weight	0.606kg/m

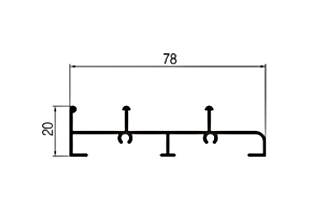

Model	A8022
Name	Flat slide
Wall thickness	0.9mm
Meter weight	0.441kg/m

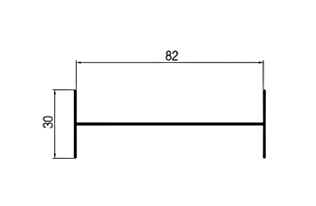

Model	A8028
Name	Word
Wall thickness	0.9mm
Meter weight	0.344kg/m

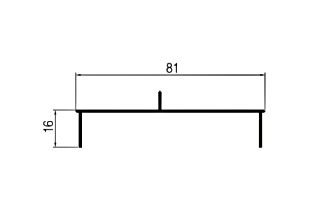

Model	A8043
Name	Cover
Wall thickness	1.0mm
Meter weight	0.320kg/m
