Product Description

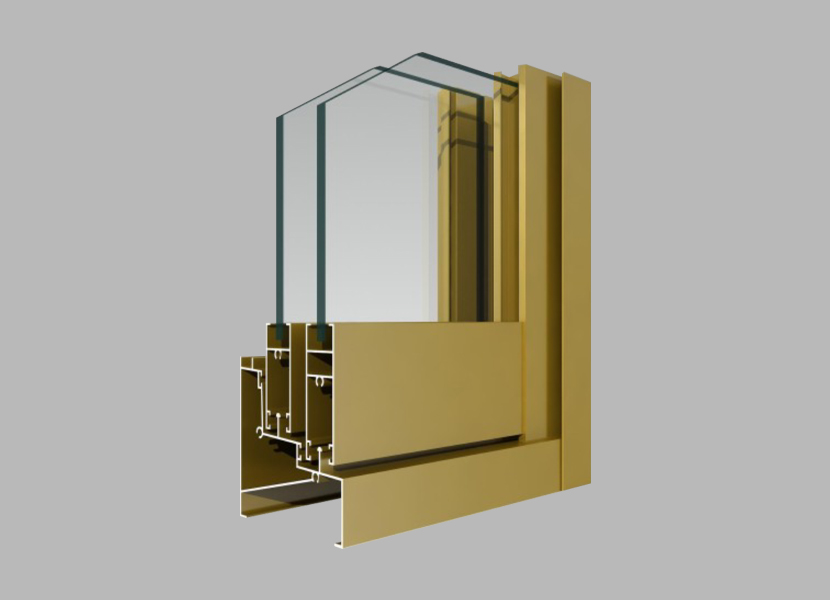

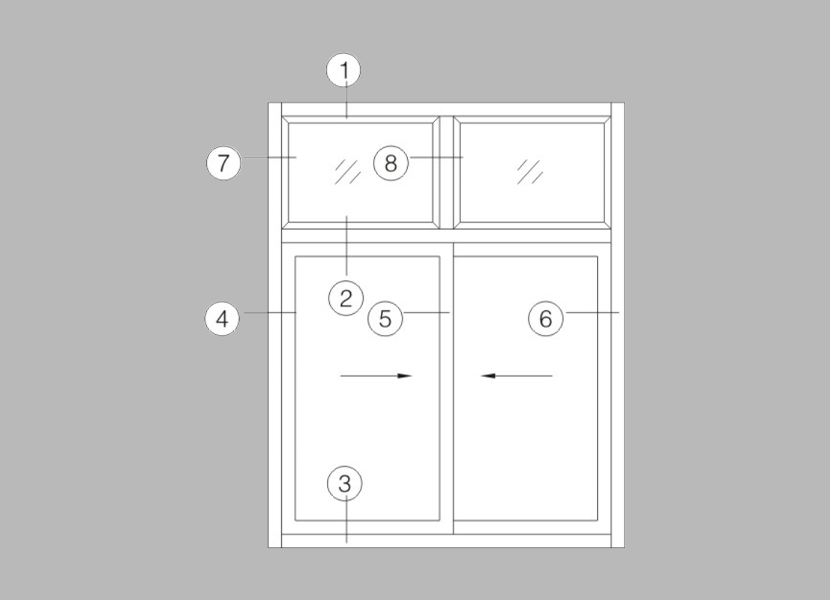

Node Drawing

Simple Drawing

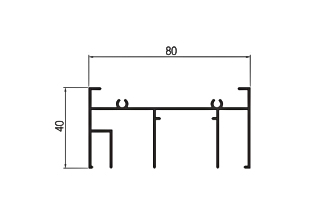

Model	K8301
Name	Slippery
Wall thickness	1.1mm
Meter weight	0.827kg/m

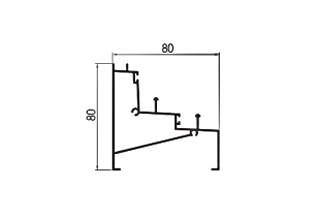

Model	K8302
Name	Sliding
Wall thickness	1.1mm
Meter weight	1.08kg/m

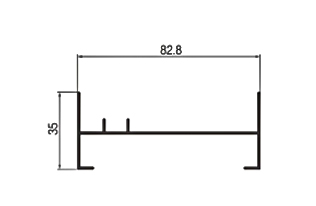

Model	K8303
Name	Edge seal
Wall thickness	1.1mm
Meter weight	0.518kg/m

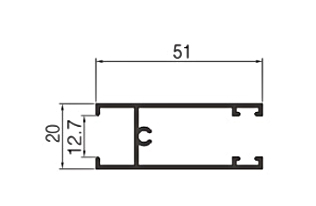

Model	K8304
Name	Above
Wall thickness	1.1mm
Meter weight	0.441kg/m

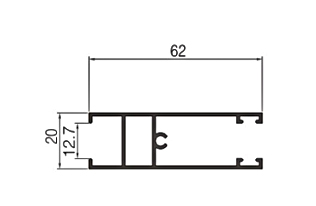

Model	K8305
Name	Big under
Wall thickness	1.1mm
Meter weight	0.56kg/m

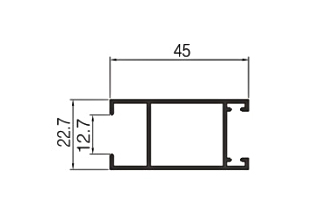

Model	K8306
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.443kg/m

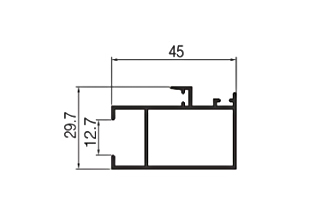

Model	K8307
Name	Hook enterprise
Wall thickness	1.1mm
Meter weight	0.486kg/m

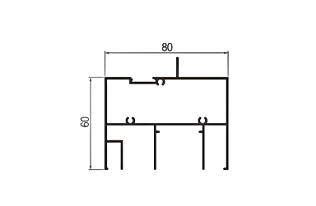

Model	K8311
Name	Middle waist
Wall thickness	1.1mm
Meter weight	1.230kg/m

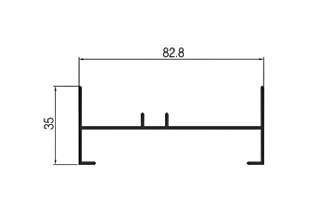

Model	K8313
Name	Edge seal
Wall thickness	1.1mm
Meter weight	0.518kg/m

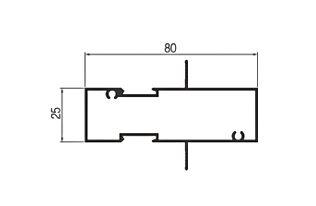

Model	K8320
Name	Middle column
Wall thickness	0.9mm
Meter weight	0.670kg/m

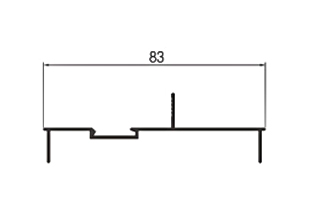

Model	K8343
Name	Cover
Wall thickness	0.9mm
Meter weight	0.316kg/m

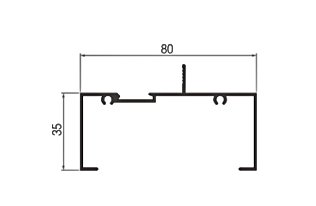

Model	K8300
Name	Fixed on
Wall thickness	1.1mm
Meter weight	0.60kg/m

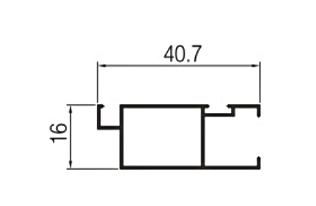

Model	K8341
Name	Screen Window
Wall thickness	0.6mm
Meter weight	0.196kg/m

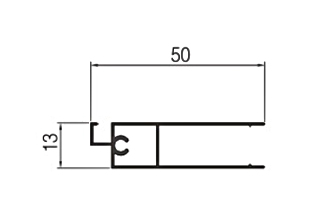

Model	K8340
Name	Screen Window
Wall thickness	0.6mm
Meter weight	0.230kg/m

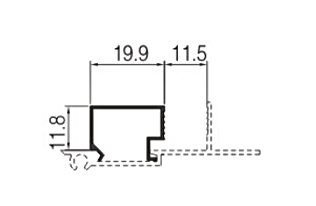

Model	K8319
Name	Layering
Wall thickness	0.6mm
Meter weight	0.096kg/m

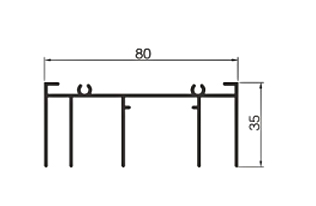

Model	K8301A
Name	Slippery
Wall thickness	1.1mm
Meter weight	0.791kg/m

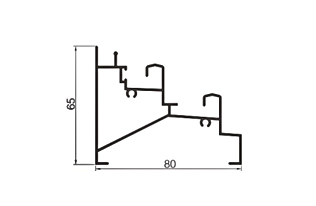

Model	K8302A
Name	Sliding
Wall thickness	1.1mm
Meter weight	0.998kg/m

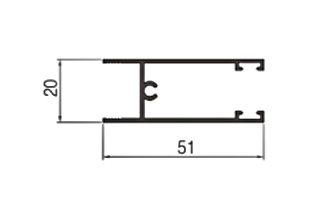

Model	K8304B
Name	Above
Wall thickness	1.1mm
Meter weight	0.442kg/m

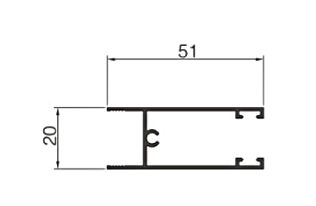

Model	K8304Z
Name	Above
Wall thickness	1.0mm
Meter weight	0.384kg/m

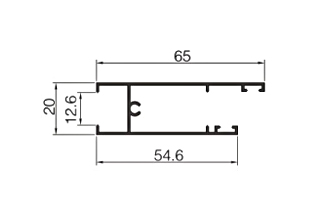

Model	K8305A
Name	Below
Wall thickness	0.9mm
Meter weight	0.42kg/m

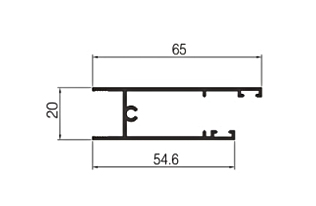

Model	K8305B
Name	Below
Wall thickness	1.1mm
Meter weight	0.511kg/m

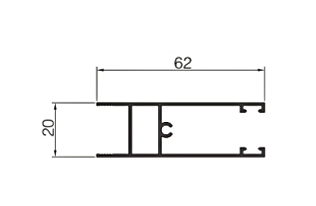

Model	K8305Z
Name	Below
Wall thickness	1.0mm
Meter weight	0.491kg/m

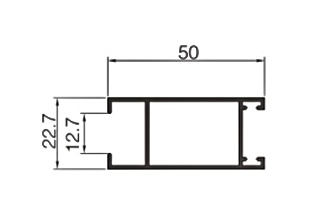

Model	K8306A
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.473kg/m

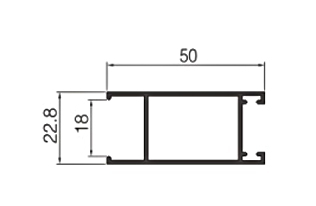

Model	K8306B
Name	Light enterprise
Wall thickness	1.2mm
Meter weight	0.491kg/m

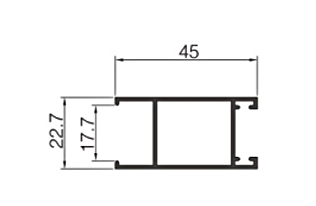

Model	K8306Z
Name	Light enterprise
Wall thickness	1.1mm
Meter weight	0.429kg/m

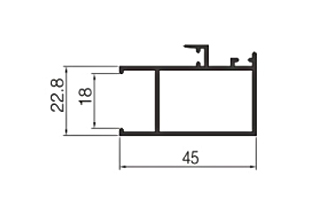

Model	K8307B
Name	Hook enterprise
Wall thickness	1.2mm
Meter weight	0.51kg/m

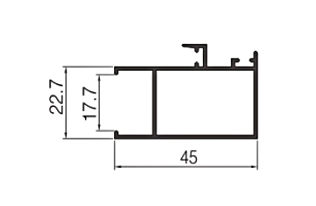

Model	K8307Z
Name	Hook enterprise
Wall thickness	1.1mm
Meter weight	0.471kg/m

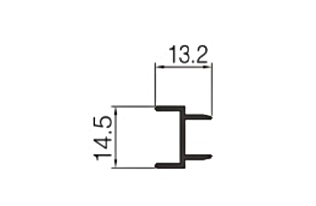

Model	K8308
Name	Closing
Wall thickness	1.0mm
Meter weight	0.102kg/m

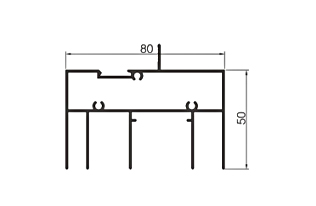

Model	K8311A
Name	Middle waist
Wall thickness	1.1mm
Meter weight	1.445kg/m

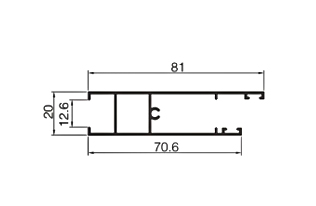

Model	K8315
Name	Below
Wall thickness	0.9mm
Meter weight	0.541kg/m

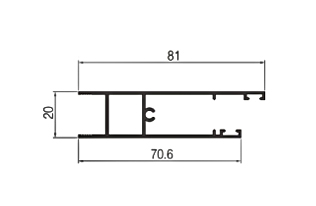

Model	K8315B
Name	Below
Wall thickness	1.1mm
Meter weight	0.671kg/m

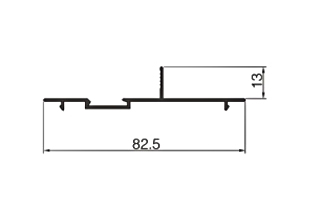

Model	K8353
Name	Cover
Wall thickness	1.1mm
Meter weight	0.33kg/m

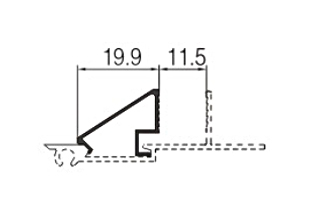

Model	K8620
Name	Layering
Wall thickness	0.6mm
Meter weight	0.091kg/m

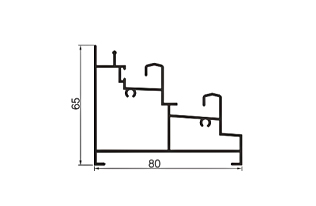

Model	K8302B
Name	Sliding
Wall thickness	1.1mm
Meter weight	1.147kg/m
