828 sliding window aluminum extrusion profile

Sliding Window

Inquiry Now

PREV：K83 Aluminium Frame Profiles for Sliding Window NEXT：K80 sliding window aluminum extrusion

Product Description

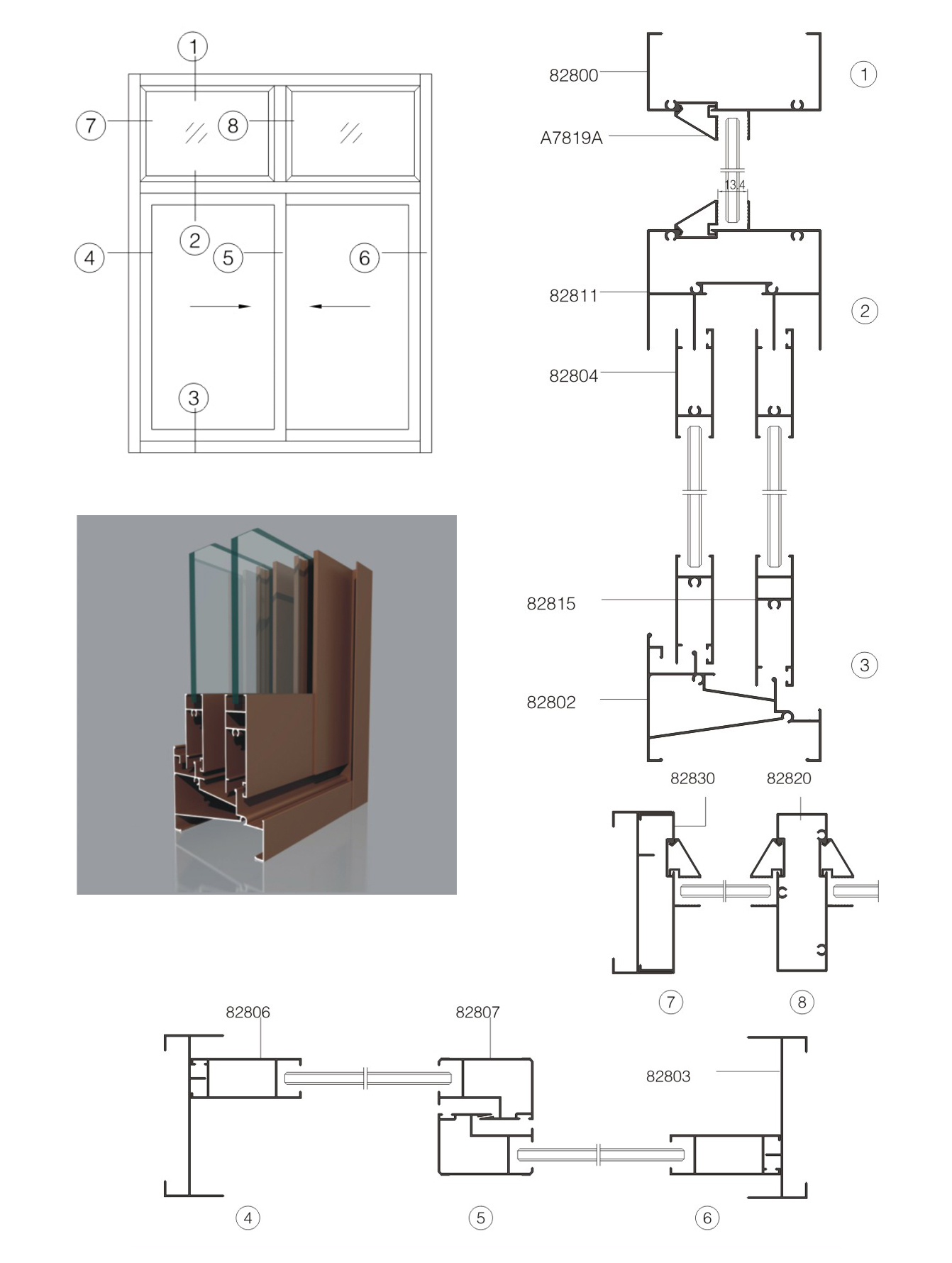

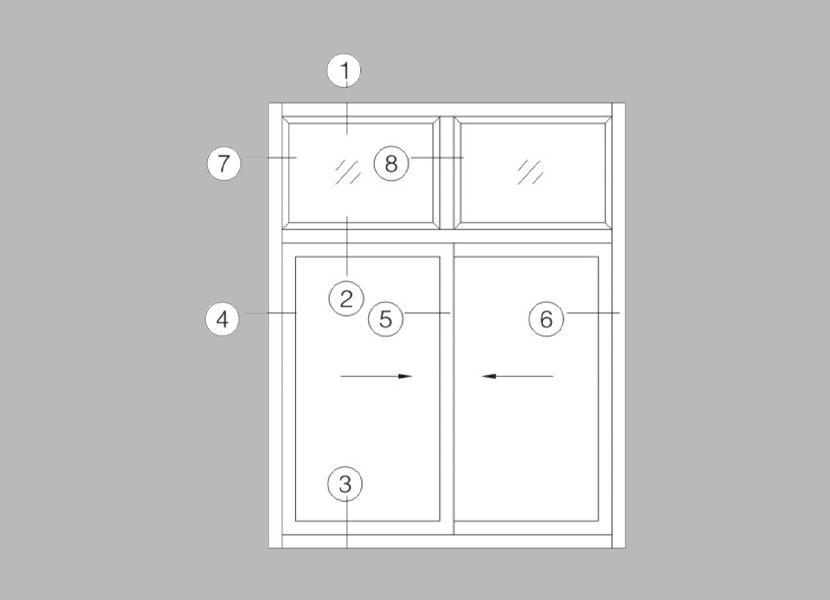

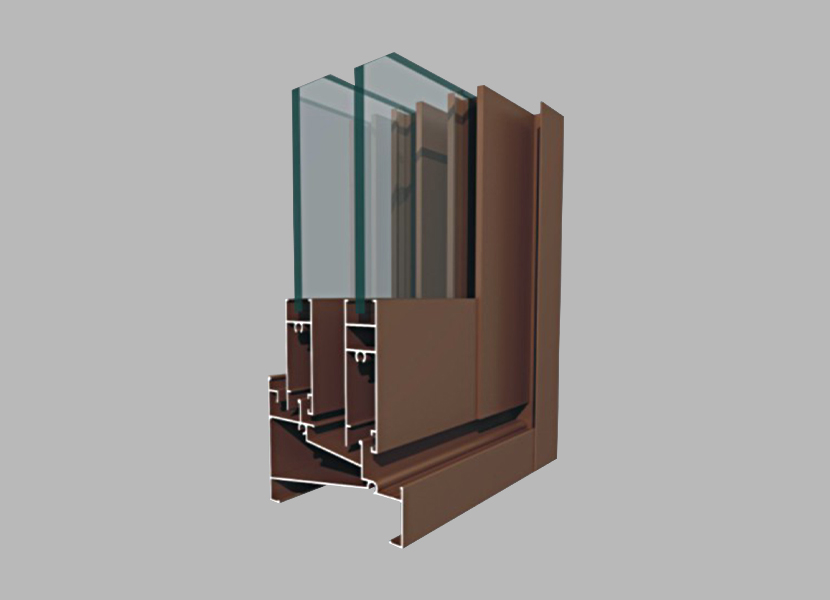

Node Drawing

Simple Drawing

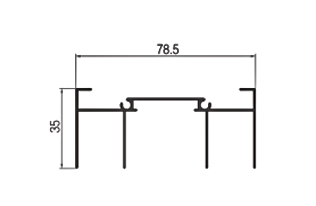

Model	82801
Name	Slippery
Wall thickness	0.9mm
Meter weight	0.578kg/m

Model	82802
Name	Slippery
Wall thickness	0.9mm
Meter weight	0.740kg/m

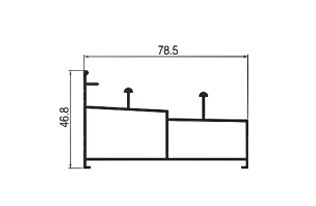

Model	82802A
Name	Sliding
Wall thickness	0.9mm
Meter weight	0.697kg/m

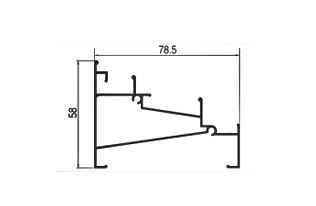

Model	82802S
Name	Sliding
Wall thickness	1.2mm
Meter weight	0.949kg/m

Model	82803
Name	Edge seal
Wall thickness	0.9mm
Meter weight	0.389kg/m

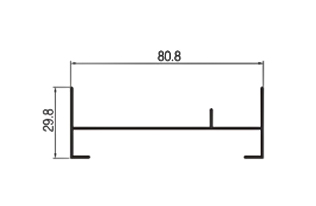

Model	82803A
Name	Edge seal
Wall thickness	0.9mm
Meter weight	0.364kg/m

Model	82803S
Name	Edge seal
Wall thickness	1.2mm
Meter weight	0.518kg/m

Model	82804
Name	Above
Wall thickness	0.9mm
Meter weight	0.330kg/m

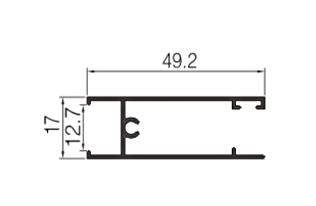

Model	82804A
Name	Above
Wall thickness	0.8mm
Meter weight	0.295kg/m

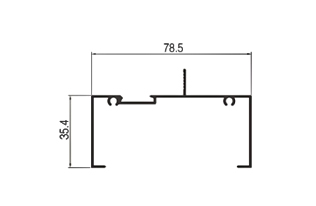

Model	82800
Name	Fixed on
Wall thickness	0.9mm
Meter weight	0.487kg/m

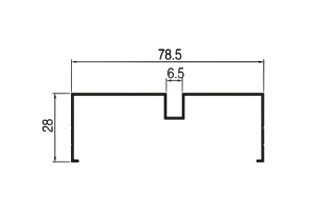

Model	82800A
Name	Fixed on
Wall thickness	0.8mm
Meter weight	0.337kg/m

Model	82806
Name	Light enterprise
Wall thickness	0.9mm
Meter weight	0.386kg/m

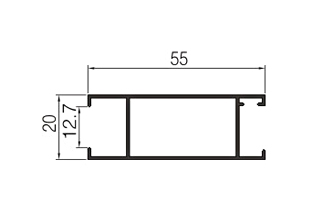

Model	82806A
Name	Light enterprise
Wall thickness	0.7mm
Meter weight	0.304kg/m

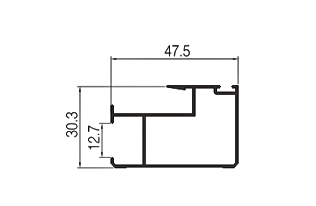

Model	82807
Name	Hook enterprise
Wall thickness	0.9mm
Meter weight	0.432kg/m

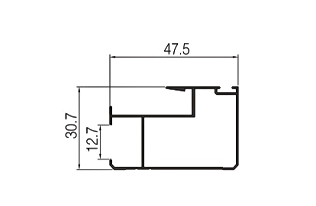

Model	82807A
Name	Hook enterprise
Wall thickness	0.7mm
Meter weight	0.346kg/m

Model	82808
Name	Closing
Wall thickness	0.9mm
Meter weight	0.268kg/m

Model	82811
Name	Middle waist
Wall thickness	0.9mm
Meter weight	0.930kg/m

Model	82811A
Name	Middle waist
Wall thickness	0.8mm
Meter weight	0.671kg/m

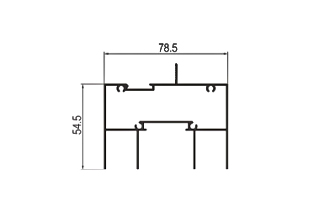

Model	82811S
Name	Middle waist
Wall thickness	1.2mm
Meter weight	1.211kg/m

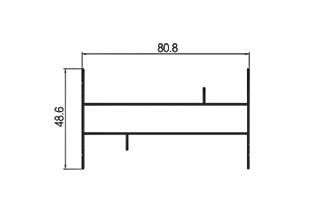

Model	82813S
Name	Bilateral seal
Wall thickness	0.9mm
Meter weight	0.657kg/m

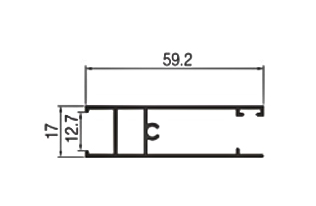

Model	82815
Name	Big under
Wall thickness	0.9mm
Meter weight	0.415kg/m

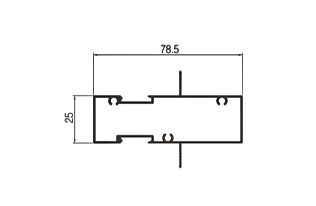

Model	82820
Name	Middle column
Wall thickness	0.9mm
Meter weight	0.680kg/m

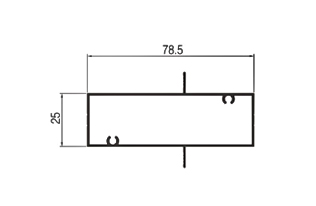

Model	82820A
Name	Middle column
Wall thickness	0.8mm
Meter weight	0.528kg/m

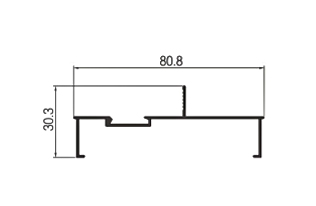

Model	82830
Name	Cover
Wall thickness	0.9mm
Meter weight	0.348kg/m

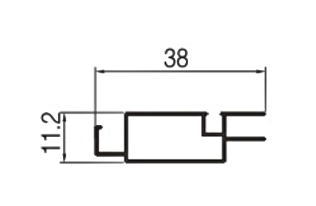

Model	82840
Name	Screen window
Wall thickness	0.6mm
Meter weight	0.165kg/m

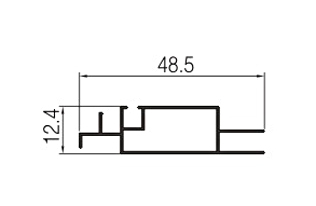

Model	82842
Name	Screen window
Wall thickness	0.6mm
Meter weight	0.203kg/m

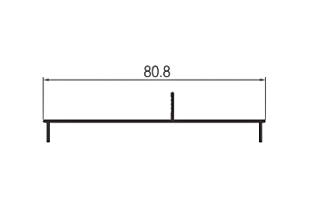

Model	82843A
Name	Cover
Wall thickness	0.8mm
Meter weight	0.224kg/m

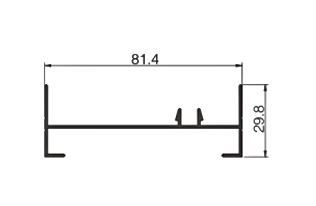

Model	82803B
Name	Edge seal
Wall thickness	1.2mm
Meter weight	0.551kg/m

Model	82813A
Name	Bilateral seal
Wall thickness	1.0mm
Meter weight	0.799kg/m
