50GR Thermal Break Aluminium Profile

Thermal Break Aluminium Profile

Inquiry Now

PREV：55GR Thermal Break Aluminium Profile NEXT：No next article

Product Description

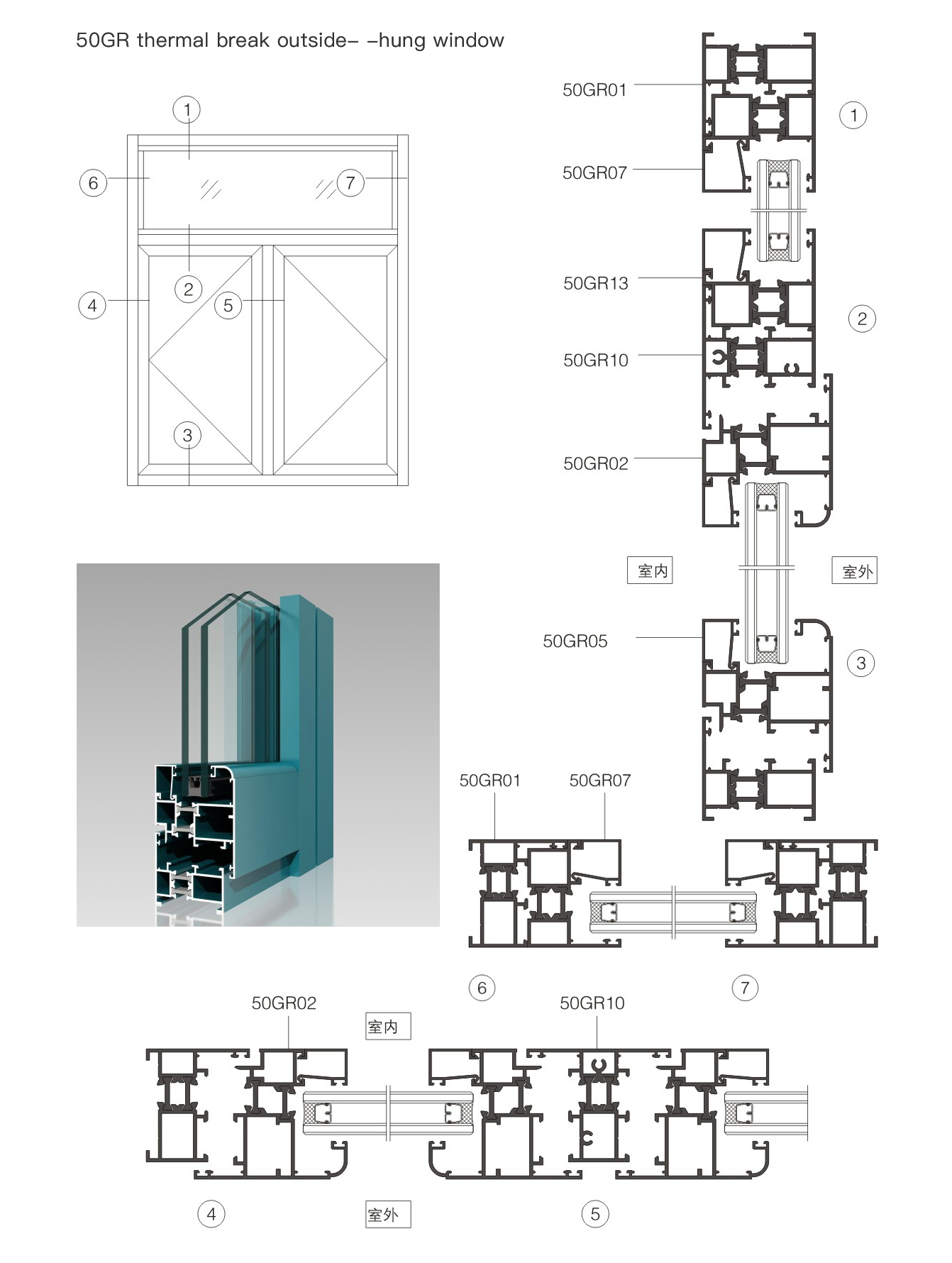

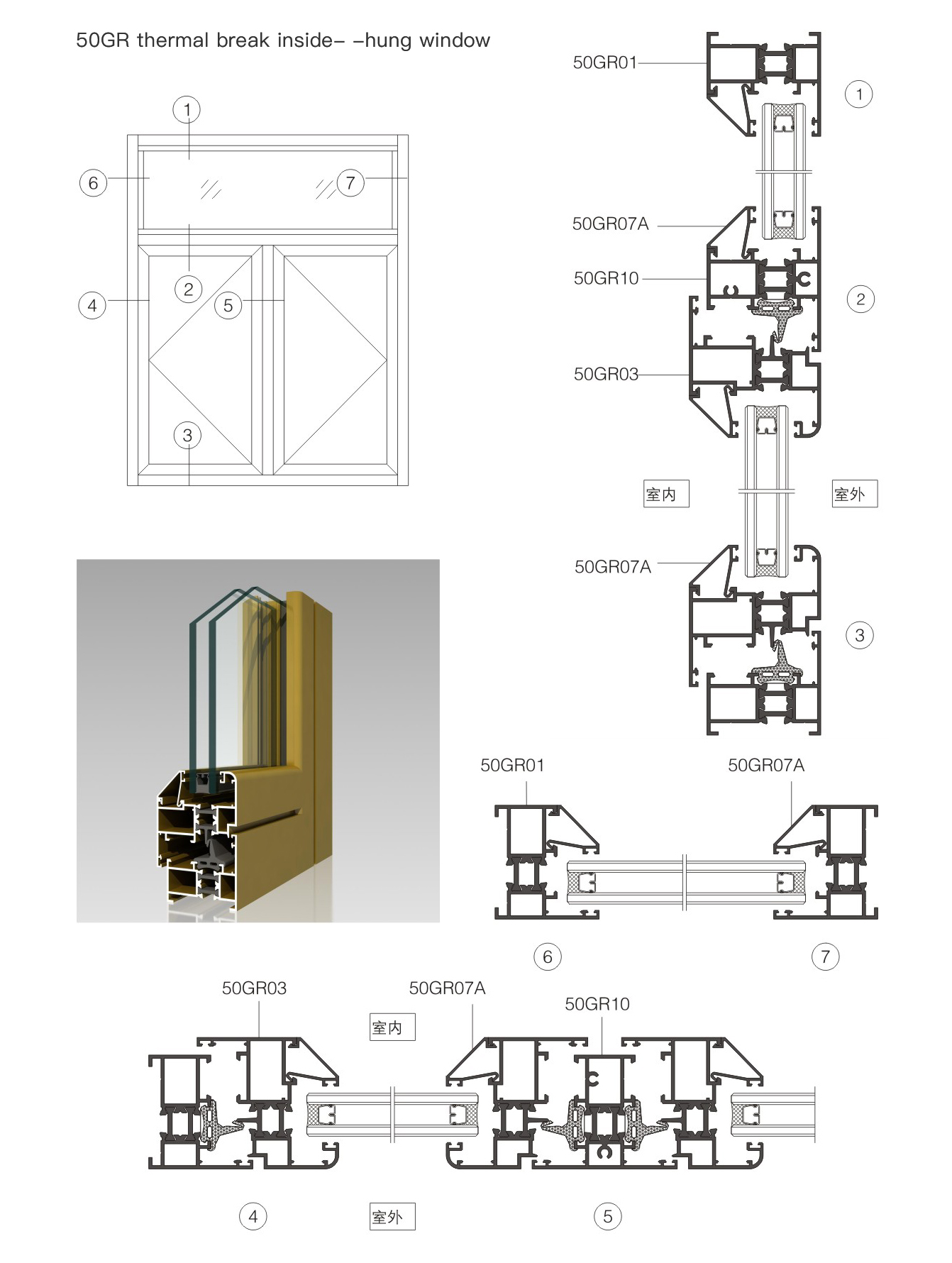

Node Drawing

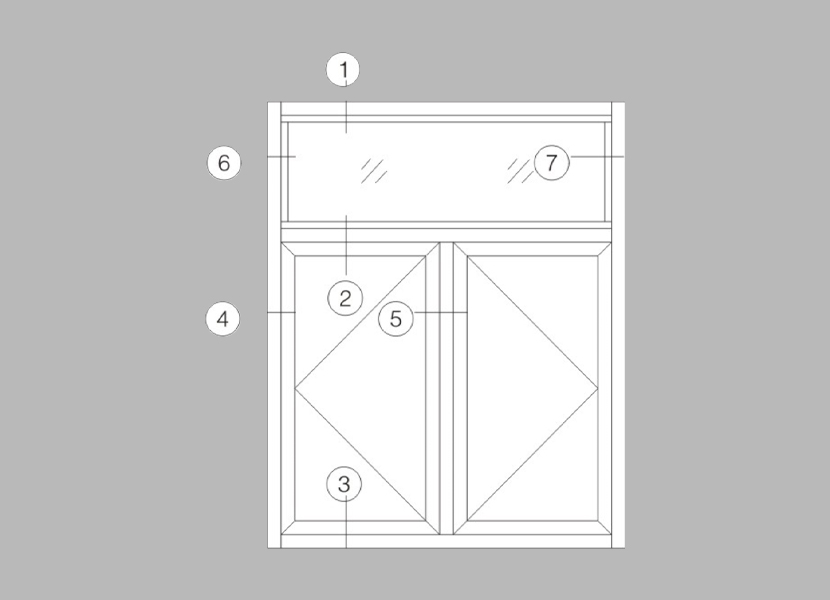

Simple Drawing

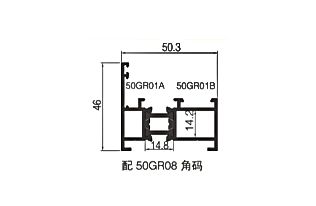

Model	50GR01
Name	Frame
Wall thickness	1.4mm
Meter weight	0.980kg/m

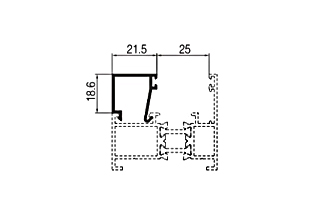

Model	50GR07
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.200kg/m

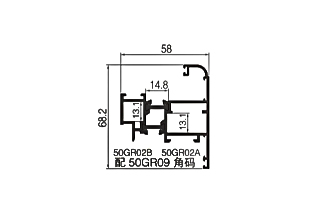

Model	50GR02
Name	Outside fan
Wall thickness	1.4mm
Meter weight	1.263kg/m

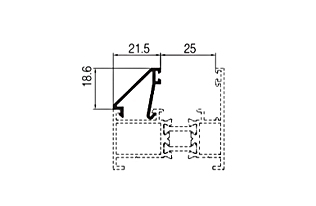

Model	50GR07A
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.183kg/m

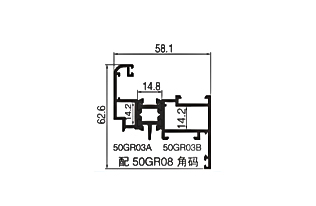

Model	50GR03
Name	Inside fan
Wall thickness	1.4mm
Meter weight	1.17kg/m

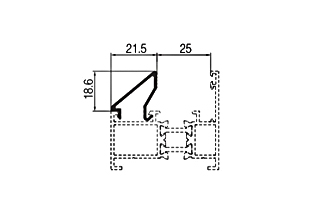

Model	50GR07B
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.180kg/m

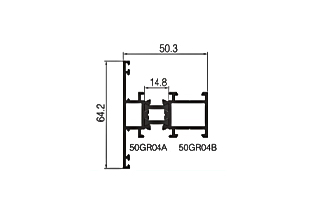

Model	50GR04
Name	Mid-rise
Wall thickness	1.4mm
Meter weight	1.10kg/m

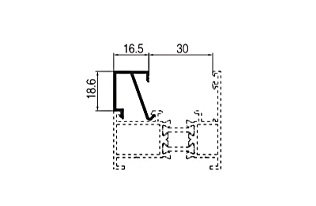

Model	50GR07C
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.200kg/m

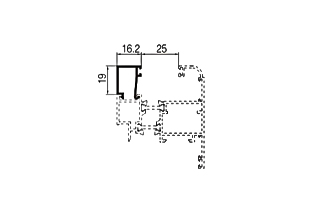

Model	50GR05
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.190kg/m

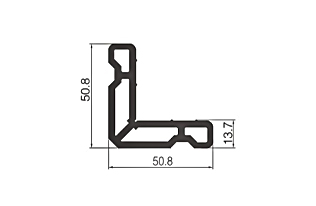

Model	50GR08
Name	Corner code
Wall thickness	3.0mm
Meter weight	1.680kg/m

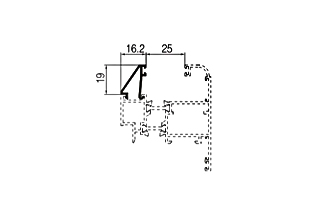

Model	50GR05A
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.168kg/m

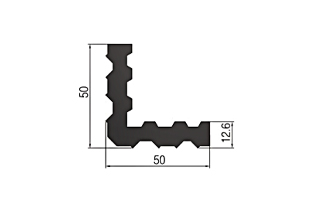

Model	50GR09
Name	Corner code
Wall thickness
Meter weight	2.240kg/m

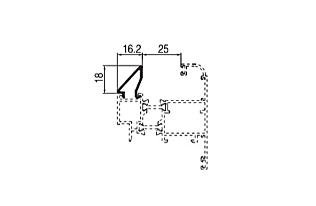

Model	50GR05B
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.153kg/m

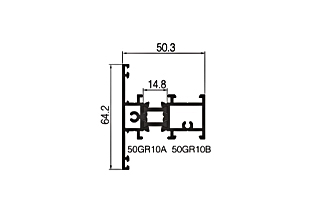

Model	50GR10
Name	Mid-rise
Wall thickness	1.4mm
Meter weight	1.186kg/m

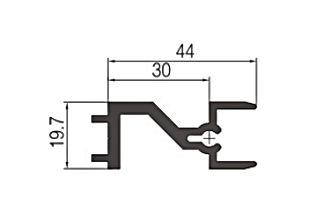

Model	50GR11
Name	Connector
Wall thickness
Meter weight	0.783kg/m

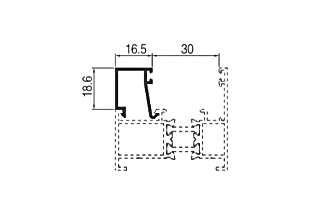

Model	50GR05C
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.193kg/m

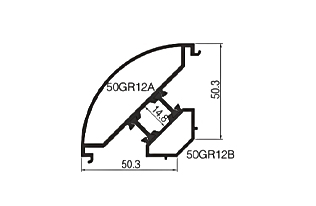

Model	50GR12
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.370kg/m

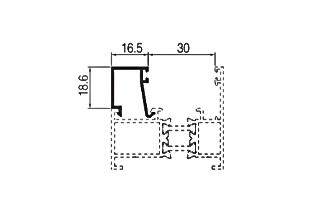

Model	50GR05D
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.176kg/m

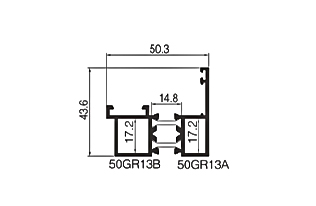

Model	50GR13
Name	Transition box
Wall thickness	1.4mm
Meter weight	0.920kg/m

Model	50GR16
Name	I-shaped closure
Wall thickness	1.4mm
Meter weight	0.531kg/m

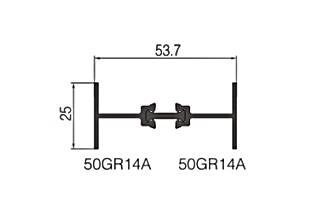

Model	50GR14
Name	I-shaped closure
Wall thickness	1.4mm
Meter weight	0.511kg/m

Model	50GR15
Name	135°Corner
Wall thickness	1.4mm
Meter weight	0.960kg/m

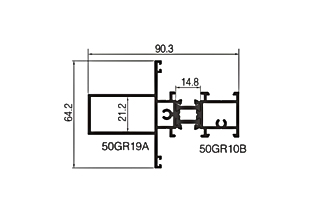

Model	50GR19
Name	Strengthen mid-rise
Wall thickness	1.4mm
Meter weight	1.659kg/m

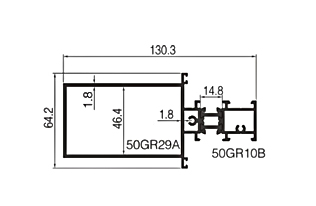

Model	50GR29
Name	Strengthen mid-rise
Wall thickness	1.4mm
Meter weight	2.336kg/m
