55GR Thermal Break Aluminium Profile

Thermal Break Aluminium Profile

Inquiry Now

PREV：60GT Thermal Break Aluminium Profile NEXT：50GR Thermal Break Aluminium Profile

Product Description

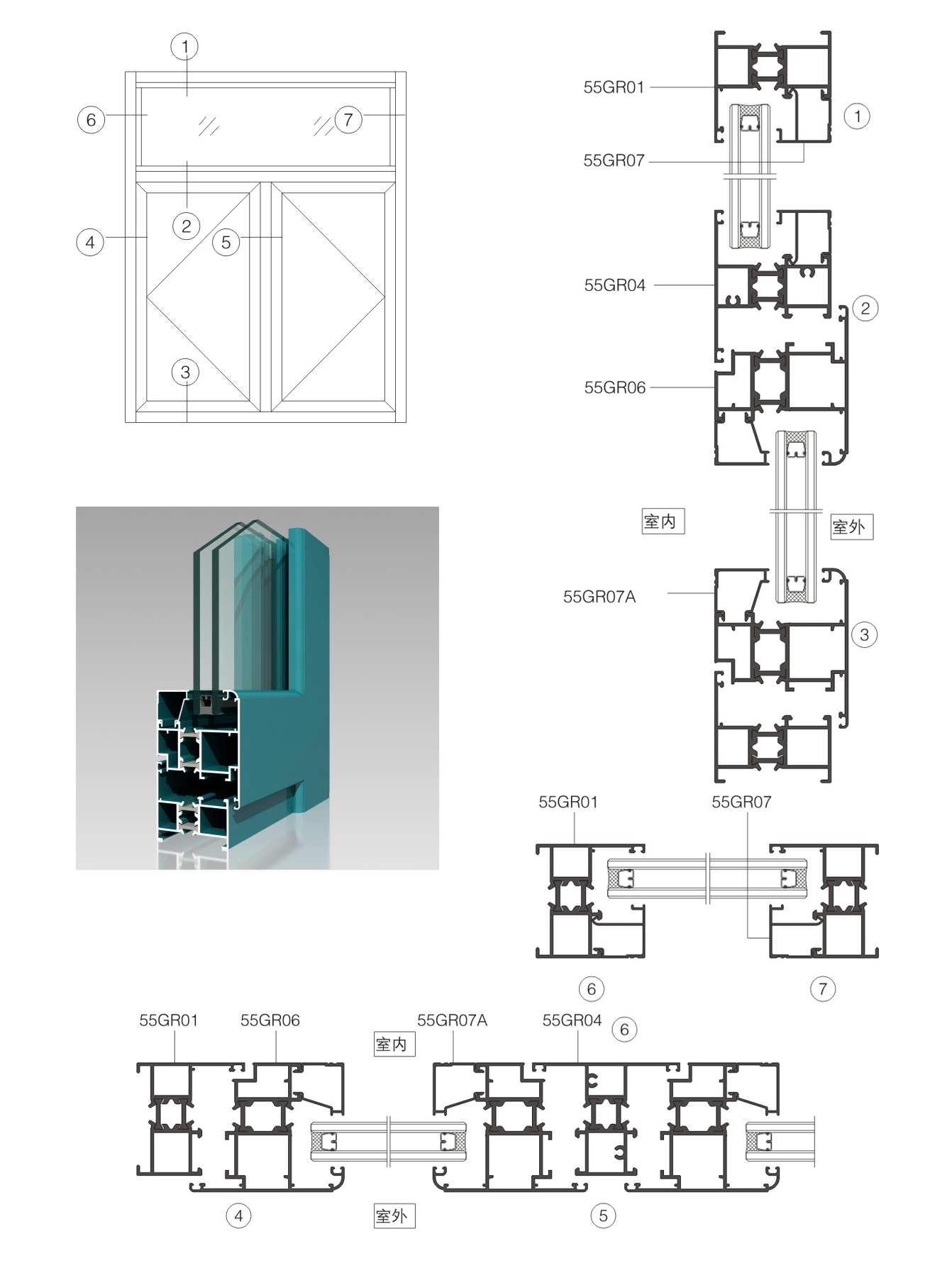

Node Drawing

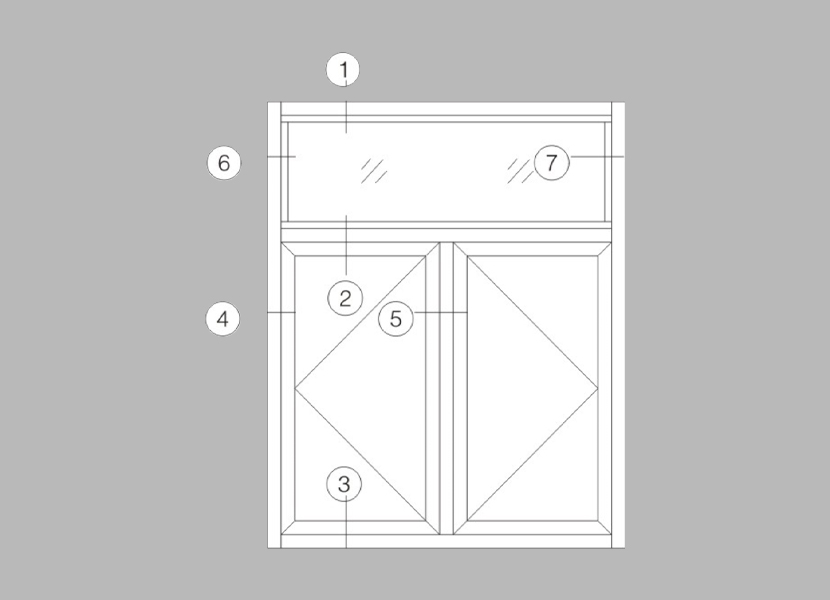

Simple Drawing

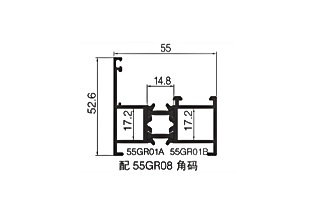

Model	55GR01
Name	Frame
Wall thickness	1.4mm
Meter weight	1.109kg/m

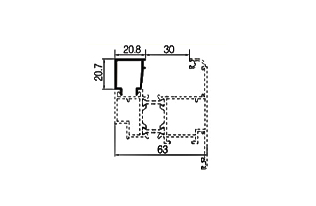

Model	55GR07KA
Name	Pressure line
Wall thickness	0.9mm
Meter weight	0.207kg/m

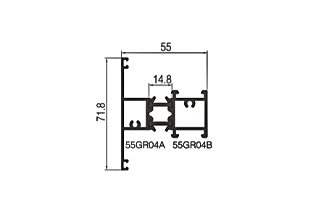

Model	55GR04
Name	Mid-rise
Wall thickness	1.4mm
Meter weight	1.291kg/m

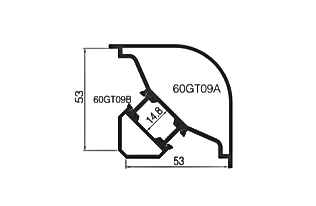

Model	60GT09
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.428kg/m

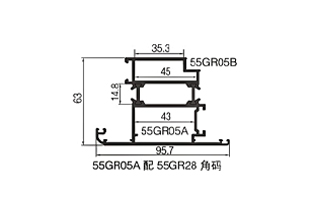

Model	55GR05
Name	Inner fan
Wall thickness	1.4mm
Meter weight	2.028kg/m

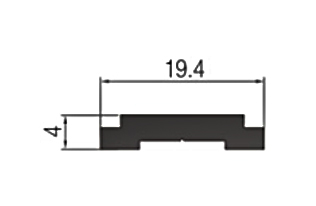

Model	55GR10
Name	link
Wall thickness	1.0mm
Meter weight	0.180kg/m

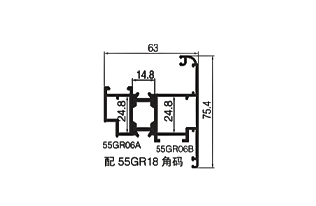

Model	55GR06
Name	Inner fan
Wall thickness	1.4mm
Meter weight	1.458kg/m

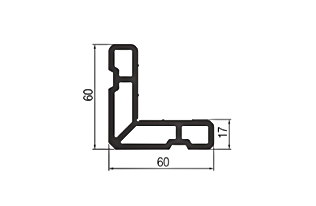

Model	55GR08
Name	Corner code
Wall thickness
Meter weight	2.102kg/m

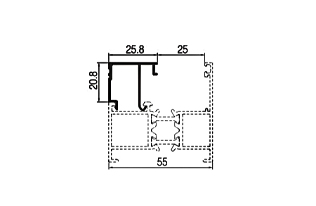

Model	55GR07
Name	Pressure line
Wall thickness	0.9mm
Meter weight	0.235kg/m

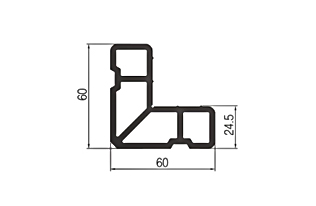

Model	55GR18
Name	Corner code
Wall thickness
Meter weight	2.309kg/m

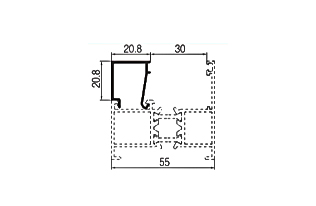

Model	55GR07K
Name	Pressure line
Wall thickness	0.9mm
Meter weight	0.202kg/m

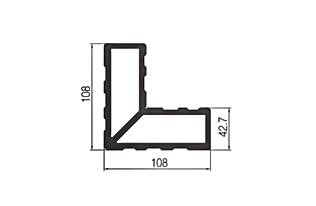

Model	55GR28
Name	Corner code
Wall thickness
Meter weight	7.246kg/m

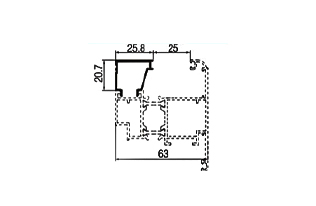

Model	55GR07A
Name	Pressure line
Wall thickness	0.9mm
Meter weight	0.235kg/m

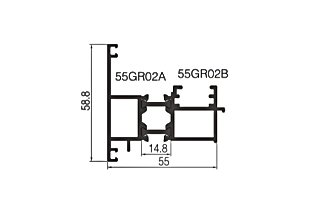

Model	55GR02
Name	Outside Fake Mid-rise
Wall thickness	1.5mm
Meter weight	1.216kg/m

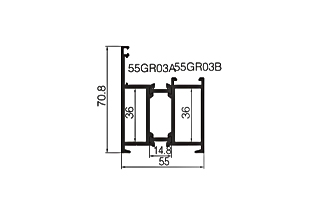

Model	55GR03
Name	Frame
Wall thickness	2.0mm
Meter weight	1.702kg/m

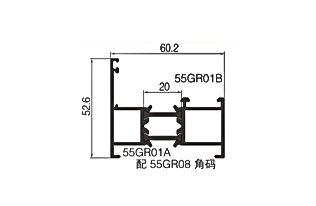

Model	55GR01-20
Name	Frame
Wall thickness	1.4mm
Meter weight	1.139kg/m

Model	55GR08A
Name	Corner code
Wall thickness
Meter weight	4.081kg/m

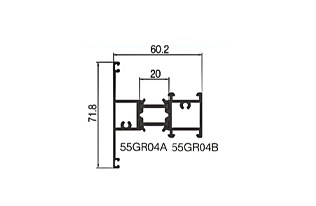

Model	55GR04-20
Name	Mid-rise
Wall thickness	1.4mm
Meter weight	1.321kg/m

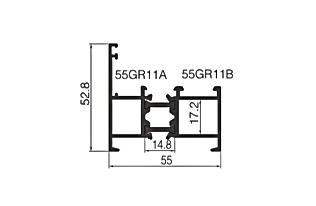

Model	55GR11
Name	Frame
Wall thickness	1.4mm
Meter weight	1.124kg/m

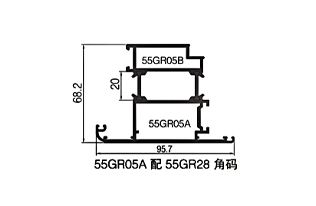

Model	55GR05-20
Name	Inner fan
Wall thickness	1.4mm
Meter weight	2.058kg/m

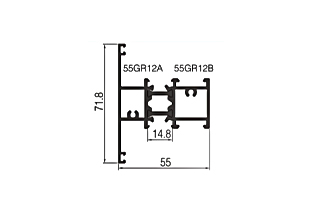

Model	55GR12
Name	Mid-rise
Wall thickness	1.4mm
Meter weight	1.327kg/m

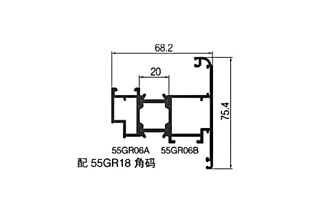

Model	55GR06-20
Name	Inner fan
Wall thickness	1.4mm
Meter weight	1.488kg/m

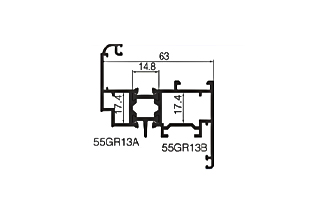

Model	55GR13
Name	Inner fan
Wall thickness	1.4mm
Meter weight	1.323kg/m

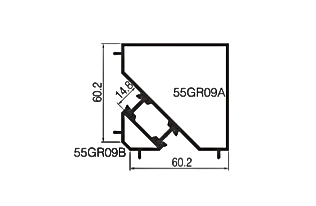

Model	55GR09
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.528kg/m
