FS Aluminium Handrail Railing extrusion profiles

FS Aluminium Handrail Railing extrusion profiles

Handrail Railing

Inquiry Now

Product Description

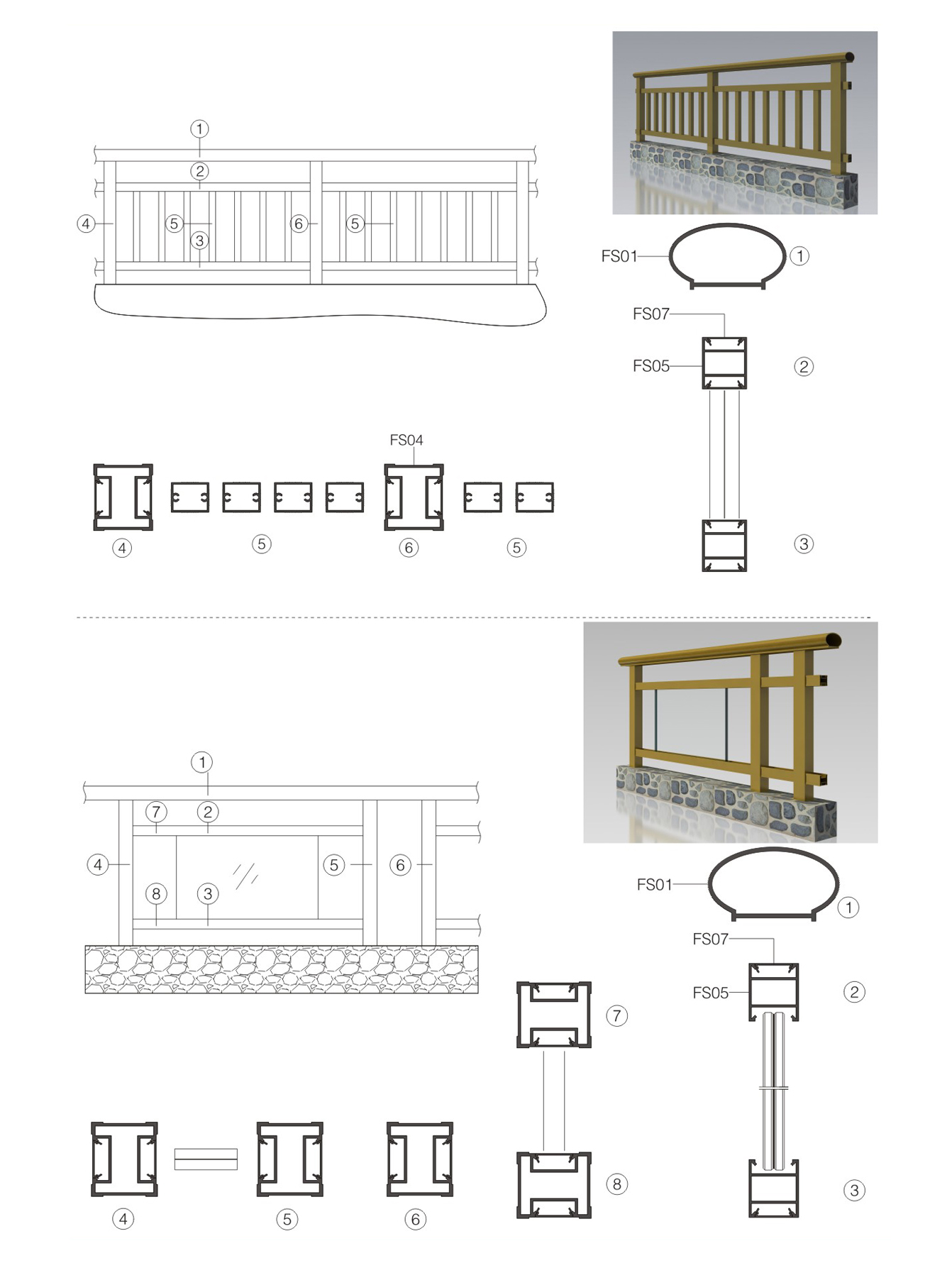

Node Drawing

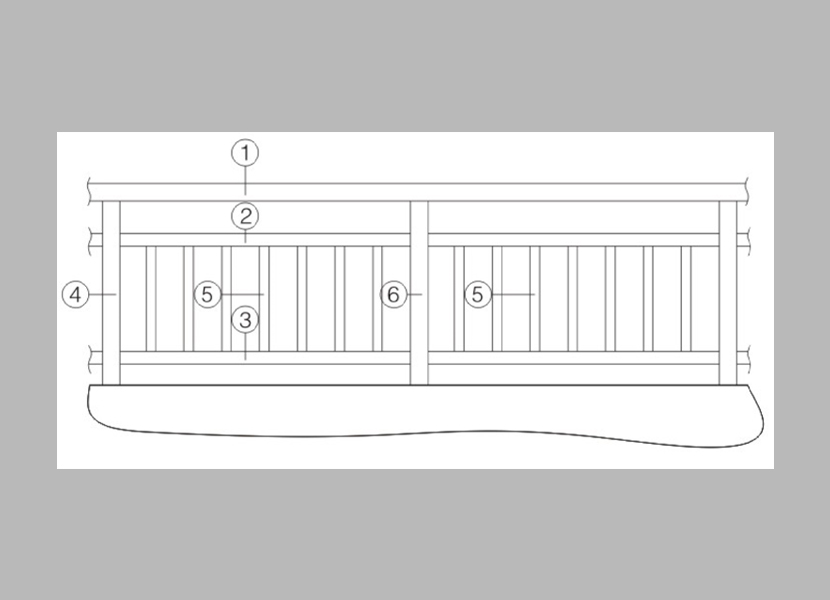

Simple Drawing

Model	FS01
Name	Facial tube
Wall thickness	2.5mm
Meter weight	1.331kg/m

Model	FS03
Name	Corner upright
Wall thickness	1.5mm
Meter weight	0.940kg/m

Model	FS01A
Name	Facial tube
Wall thickness	2.0mm
Meter weight	1.140kg/m

Model	FS04
Name	Column
Wall thickness	1.5mm
Meter weight	0.958kg/m

Model	FS01B
Name	Facial tube
Wall thickness	1.7mm
Meter weight	0.935kg/m

Model	FS04A
Name	Column
Wall thickness	1.5mm
Meter weight	0.958kg/m

Model	FS01C
Name	Facial tube
Wall thickness	2.5mm
Meter weight	1.271kg/m

Model	FS04B
Name	Column
Wall thickness	2.5mm
Meter weight	1.500kg/m

Model	FS01D
Name	Facial tube
Wall thickness	2.5mm
Meter weight	1.117kg/m

Model	FS05
Name	Column
Wall thickness	1.4mm
Meter weight	0.539kg/m

Model	FS02
Name	Column
Wall thickness	1.4mm
Meter weight	1.114kg/m

Model	FS05A
Name	Column
Wall thickness	1.4mm
Meter weight	0.585kg/m

Model	FS02B
Name	Column
Wall thickness	1.5mm
Meter weight	0.981kg/m

Model	FS05B
Name	Column
Wall thickness	1.4mm
Meter weight	0.490kg/m

Model	FS06
Name	Flower tube
Wall thickness	1.1mm
Meter weight	0.332kg/m

Model	FS21
Name
Wall thickness	2.0mm
Meter weight	1.512kg/m

Model	FS07
Name	Cover
Wall thickness	1.0mm
Meter weight	0.083kg/m

Model	FS22
Name
Wall thickness	2.0mm
Meter weight	1.542kg/m

Model	FS07A
Name	Cover
Wall thickness	1.0mm
Meter weight	0.067kg/m

Model	FS23
Name
Wall thickness	2.0mm
Meter weight	1.312kg/m

Model	FS08
Name	Louver
Wall thickness	1.0mm
Meter weight	0.241kg/m

Model	FS24
Name
Wall thickness	2.0mm
Meter weight	1.08kg/m

Model	FS17
Name	Connector
Wall thickness	2.5mm
Meter weight	0.490kg/m

Model	FS25
Name
Wall thickness	1.4mm
Meter weight	0.478kg/m

Model	FS18
Name	Connector
Wall thickness	2.5mm
Meter weight	0.480kg/m

Model	FS26
Name
Wall thickness	1.2mm
Meter weight	0.152kg/m

Model	FS19
Name	Facial tube
Wall thickness	3.0mm
Meter weight	1.915kg/m

Model	FS27
Name
Wall thickness	1.2mm
Meter weight	0.141kg/m

Model	FS28
Name
Wall thickness	1.2mm
Meter weight	0.578kg/m

Model	FS01F
Name
Wall thickness	1.8mm
Meter weight	0.949kg/m

Model	FS29
Name
Wall thickness	1.8mm
Meter weight	1.235kg/m

Model	FS03A
Name
Wall thickness	1.2mm
Meter weight	0.740kg/m

Model	FS30
Name
Wall thickness	0.7mm
Meter weight	0.096kg/m

Model	FS05C
Name
Wall thickness	1.3mm
Meter weight	0.493kg/m

Model	FS31
Name
Wall thickness	1.8mm
Meter weight	1.630kg/m

Model	FS05E
Name
Wall thickness	1.2mm
Meter weight	0.561kg/m

Model	FS32
Name
Wall thickness	1.8mm
Meter weight	1.217kg/m

Model	FS034
Name
Wall thickness	1.2mm
Meter weight	0.794kg/m

Model	FS33
Name
Wall thickness	2.5mm
Meter weight	0.439kg/m

Model	FS8002
Name
Wall thickness	1.5mm
Meter weight	0.772kg/m

Model	FS01E
Name
Wall thickness	2.0mm
Meter weight	1.492kg/m

Model	FS04C
Name
Wall thickness	1.3mm
Meter weight	0.80kg/m

Model	FS05D
Name
Wall thickness	1.2mm
Meter weight	0.388kg/m

Model	FS8001
Name
Wall thickness	2.0mm
Meter weight	1.839kg/m

Model	FS06A
Name
Wall thickness	1.2mm
Meter weight	0.332kg/m
