B80 sliding window industrial extrusion profile

Sliding Window

Inquiry Now

Product Description

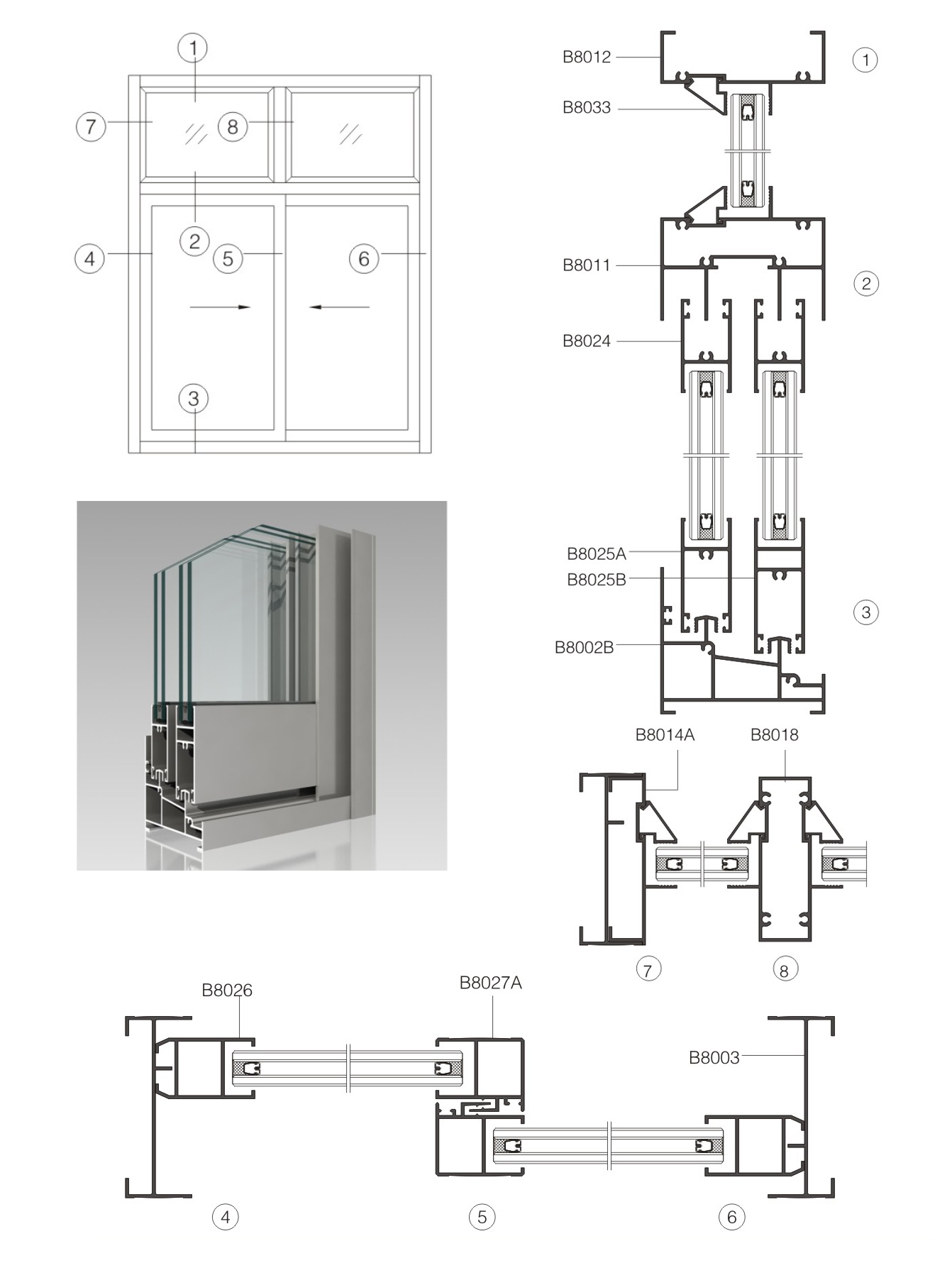

Node Drawing

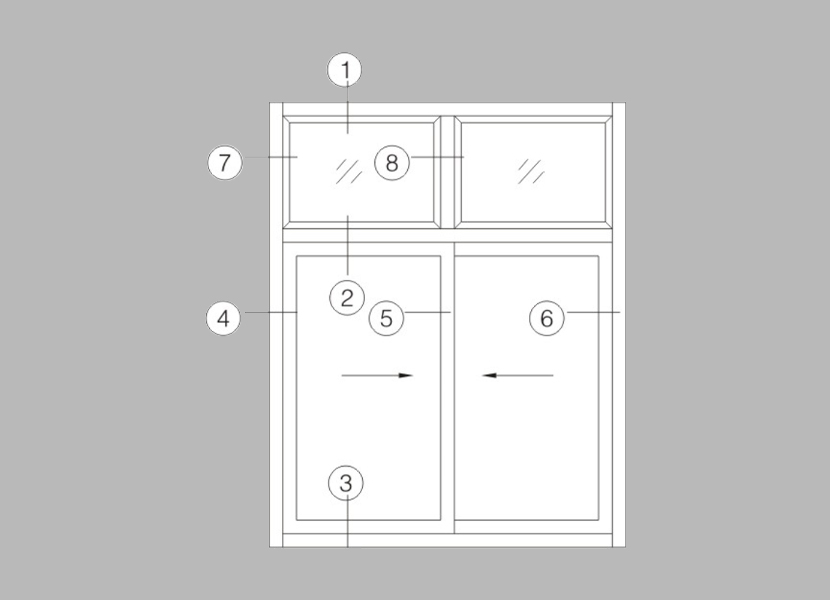

Simple Drawing

Model	B8001
Name	Slippery
Wall thickness	1.4mm
Meter weight	0.880kg/m

Model	B8002A
Name	Sliding
Wall thickness	1.4mm
Meter weight	1.070kg/m

Model	B8002B
Name	Sliding
Wall thickness	1.4mm
Meter weight	1.448kg/m

Model	B8003
Name	Edge seal
Wall thickness	1.4mm
Meter weight	0.660kg/m

Model	B8004
Name	Above
Wall thickness	1.4mm
Meter weight	0.536kg/m

Model	B8005A
Name	Below
Wall thickness	1.4mm
Meter weight	0.610kg/m

Model	B8005B
Name	Big under
Wall thickness	1.4mm
Meter weight	0.780kg/m

Model	B8006
Name	Light enterprise
Wall thickness	1.4mm
Meter weight	0.600kg/m

Model	B8007A
Name	Hook enterprise
Wall thickness	1.4mm
Meter weight	0.585kg/m

Model	B8007B
Name	Strengthen the enterprise
Wall thickness	1.4mm
Meter weight	0.890kg/m

Model	B8008
Name	Inner fan closing
Wall thickness	1.4mm
Meter weight	0.440kg/m

Model	B8009
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.390kg/m

Model	B8011
Name	Middle waist
Wall thickness	1.4mm
Meter weight	1.390kg/m

Model	B8012
Name	Fixed on
Wall thickness	1.4mm
Meter weight	0.670kg/m

Model	B8013
Name	Word
Wall thickness	1.4mm
Meter weight	0.540kg/m

Model	B8014A
Name	Cover
Wall thickness	1.4mm
Meter weight	0.560kg/m

Model	B8018
Name	Middle waist
Wall thickness	1.4mm
Meter weight	1.06kg/m

Model	B8019
Name	90°Corner
Wall thickness	1.4mm
Meter weight	1.479kg/m

Model	B8022
Name	Belt slip
Wall thickness	1.4mm
Meter weight	1.250kg/m

Model	B8022B
Name	Belt slip
Wall thickness	1.4mm
Meter weight	1.442kg/m

Model	B8024
Name	Above the hollow
Wall thickness	1.4mm
Meter weight	0.510kg/m

Model	B8025A
Name	Hollow below
Wall thickness	1.4mm
Meter weight	0.580kg/m

Model	B8025B
Name	Hollow large
Wall thickness	1.4mm
Meter weight	0.750kg/m

Model	B8026
Name	Hollow light enterprise
Wall thickness	1.4mm
Meter weight	0.570kg/m

Model	B8027A
Name	Hollow hook
Wall thickness	1.4mm
Meter weight	0.590kg/m

Model	B8027B
Name	Hollow big hook
Wall thickness	1.4mm
Meter weight	0.900kg/m

Model	B8032
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.180kg/m

Model	B8033
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.150kg/m

Model	B8039
Name	125°Corner
Wall thickness	1.4mm
Meter weight	0.872kg/m
