K80 sliding window aluminum extrusion

K80 sliding window aluminum extrusion

Sliding Window

Inquiry Now

PREV：828 sliding window aluminum extrusion profile NEXT：B80 sliding window industrial extrusion profile

Product Description

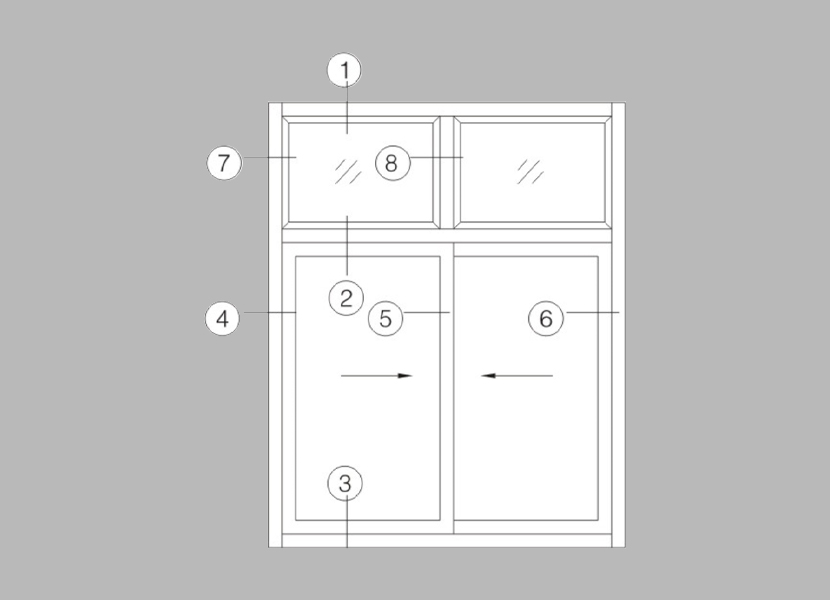

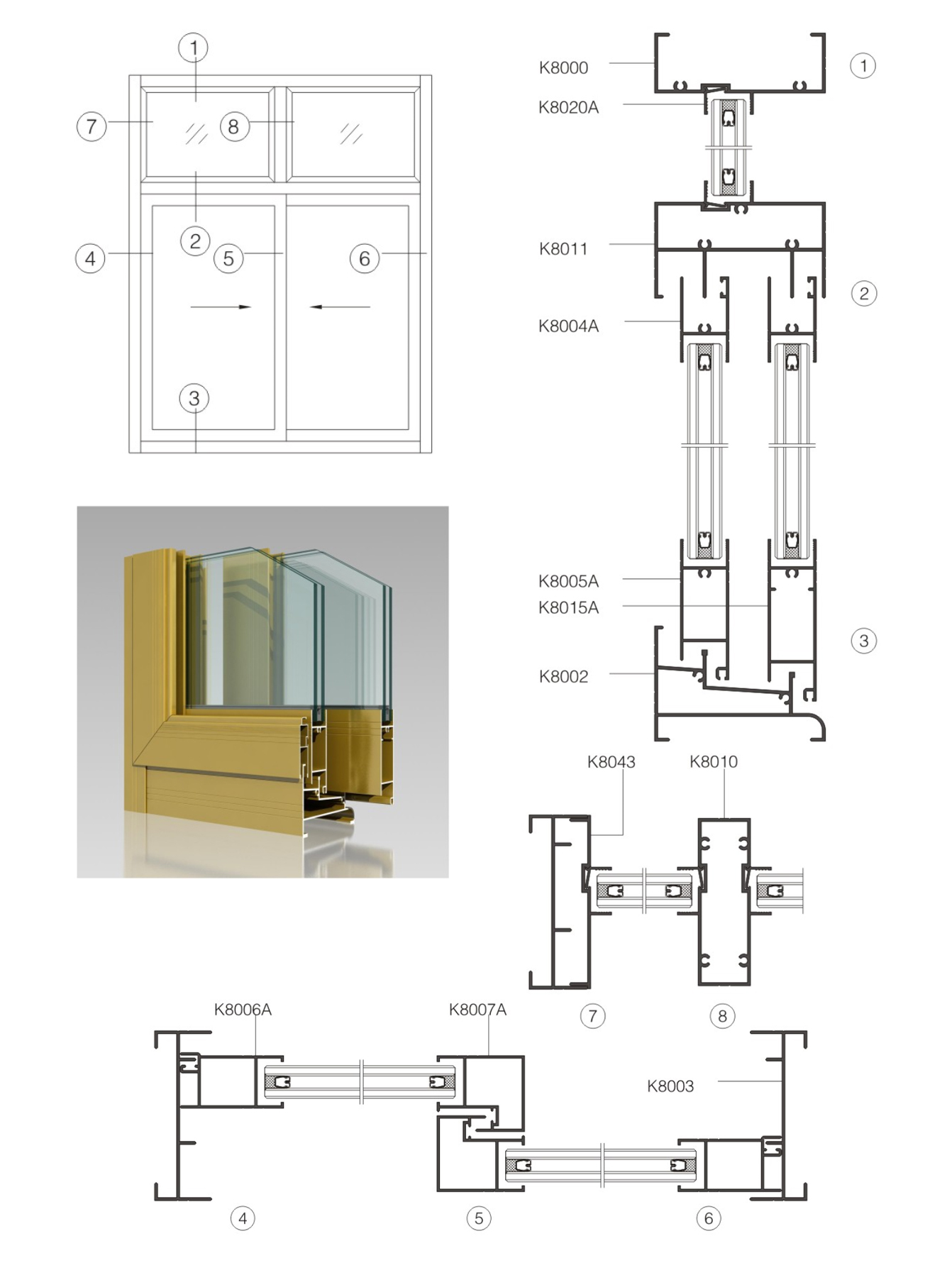

Node Drawing

Simple Drawing

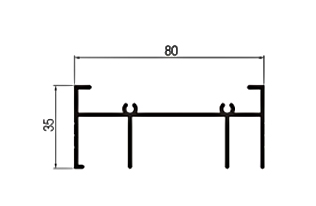

Model	K8001
Name	Slippery
Wall thickness	1.4mm
Meter weight	0.835kg/m

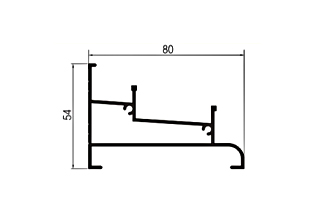

Model	K8002
Name	Sliding
Wall thickness	1.4mm
Meter weight	1.015kg/m

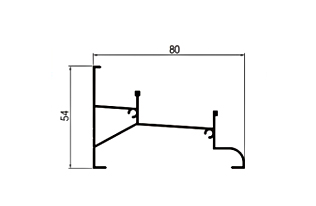

Model	K8002B
Name	Sliding
Wall thickness	0.9mm
Meter weight	0.583kg/m

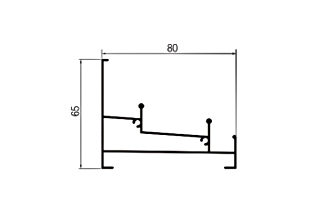

Model	K8002C
Name	Sliding
Wall thickness	0.9mm
Meter weight	0.751kg/m

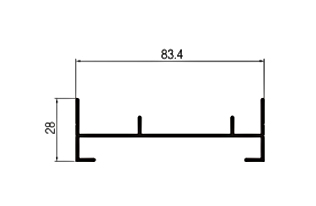

Model	K8003
Name	Edge seal
Wall thickness	1.4mm
Meter weight	0.626kg/m

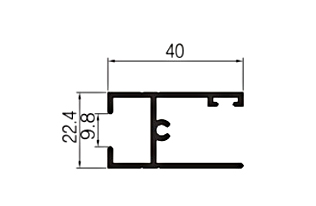

Model	K8004
Name	Above
Wall thickness	1.4mm
Meter weight	0.476kg/m

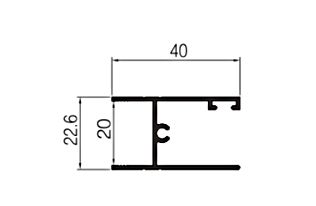

Model	K8004A
Name	Above
Wall thickness	1.2mm
Meter weight	0.380kg/m

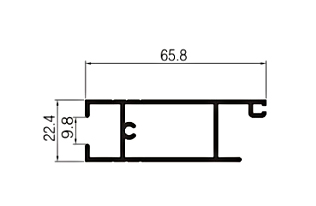

Model	K8005
Name	Below
Wall thickness	1.4mm
Meter weight	0.717kg/m

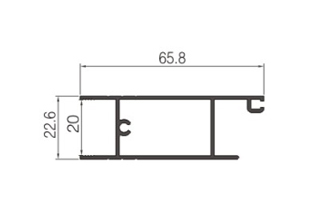

Model	K8005A
Name	Below
Wall thickness	1.2mm
Meter weight	0.585kg/m

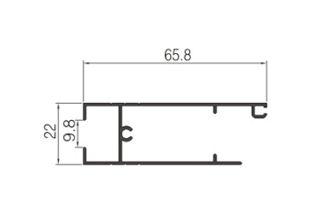

Model	K8005B
Name	Below
Wall thickness	0.9mm
Meter weight	0.428kg/m

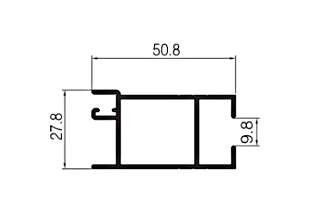

Model	K8006
Name	Light enterprise
Wall thickness	1.4mm
Meter weight	0.655kg/m

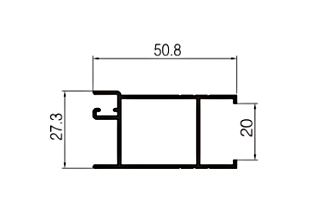

Model	K8006A
Name	Light enterprise
Wall thickness	1.2mm
Meter weight	0.540kg/m

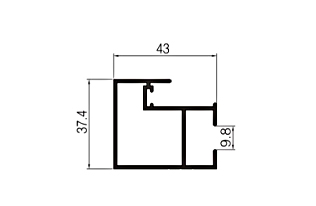

Model	K8007
Name	Hook enterprise
Wall thickness	1.4mm
Meter weight	0.696kg/m

Model	K8007A
Name	Hook enterprise
Wall thickness	1.2mm
Meter weight	0.570kg/m

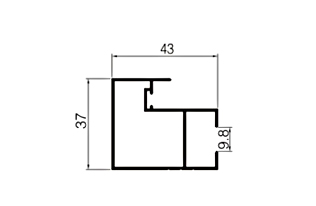

Model	K8007B
Name	Hook enterprise
Wall thickness	0.9mm
Meter weight	0.448kg/m

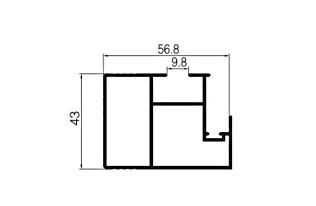

Model	K8007C
Name	Hook enterprise
Wall thickness	1.2mm
Meter weight	0.860kg/m

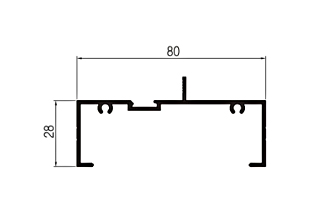

Model	K8000
Name	Fixed on
Wall thickness	1.4mm
Meter weight	0.672kg/m

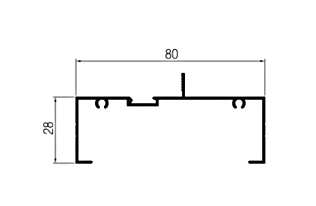

Model	K8000B
Name	Fixed on
Wall thickness	0.9mm
Meter weight	0.450kg/m

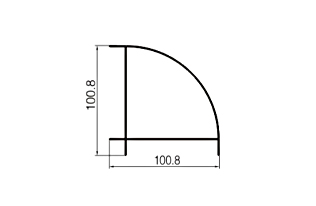

Model	K8009
Name	90°Corner
Wall thickness	1.2mm
Meter weight	1.170kg/m

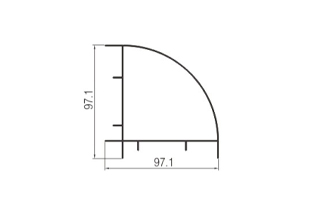

Model	K8009A
Name	90°Corner
Wall thickness	0.9mm
Meter weight	0.933kg/m

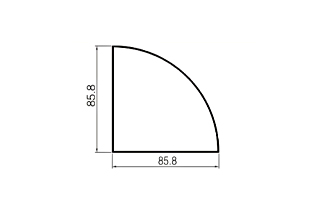

Model	K8009B
Name	90°Corner
Wall thickness	0.9mm
Meter weight	0.736kg/m

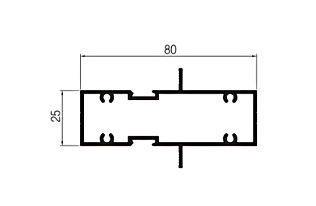

Model	K8010
Name	Middle column
Wall thickness	1.4mm
Meter weight	1.029kg/m

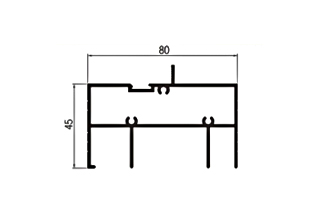

Model	K8011
Name	Middle waist
Wall thickness	1.4mm
Meter weight	1.256kg/m

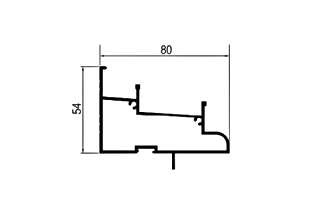

Model	K8012
Name	Belt slip
Wall thickness	1.4mm
Meter weight	1.097kg/m

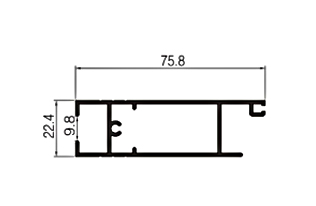

Model	K8015
Name	Big under
Wall thickness	1.4mm
Meter weight	0.810kg/m

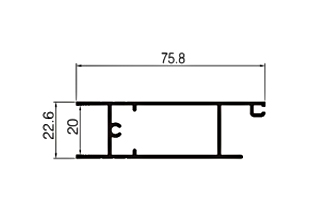

Model	K8015A
Name	Big under
Wall thickness	1.2mm
Meter weight	0.670kg/m

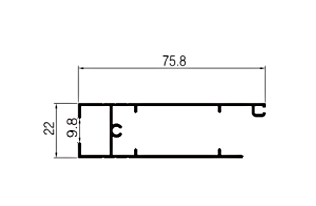

Model	K8015B
Name	Big under
Wall thickness	0.9mm
Meter weight	0.490kg/m

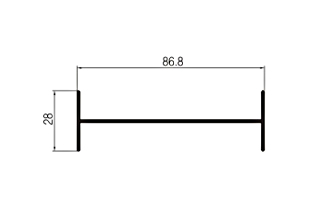

Model	K8018
Name	Word
Wall thickness	1.4mm
Meter weight	0.527kg/m

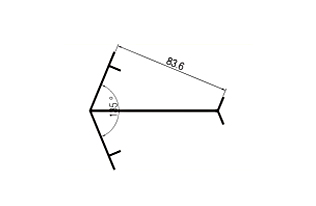

Model	K8019
Name	135°Corner
Wall thickness	1.2mm
Meter weight	0.710kg/m

Model	K8020
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.100kg/m

Model	K8020A
Name	Pressure line
Wall thickness	1.2mm
Meter weight	0.063kg/m

Model	K8021
Name	Open tube
Wall thickness	1.2mm
Meter weight	0.340kg/m

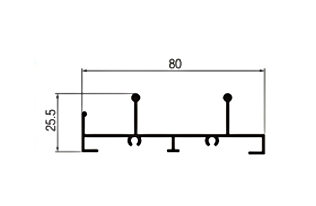

Model	K8032
Name	Flat slide
Wall thickness	0.9mm
Meter weight	0.503kg/m

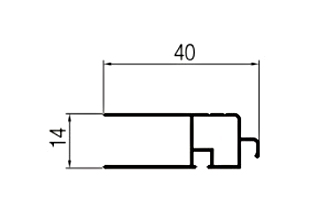

Model	K8040
Name	Screen window
Wall thickness	0.6mm
Meter weight	0.178kg/m

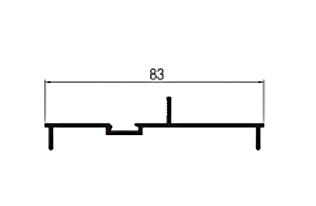

Model	K8043
Name	Cover
Wall thickness	1.4mm
Meter weight	0.441kg/m

Model	K8043A
Name	Cover
Wall thickness	0.9mm
Meter weight	0.265kg/m
