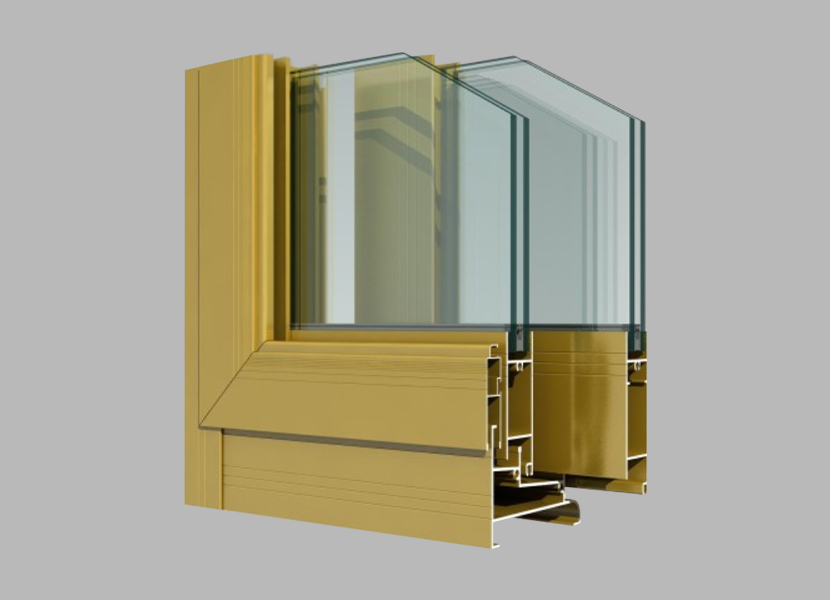

K80 sliding window aluminum extrusion

K80 sliding window aluminum extrusion

Sliding Window

Inquiry Now

Product Description

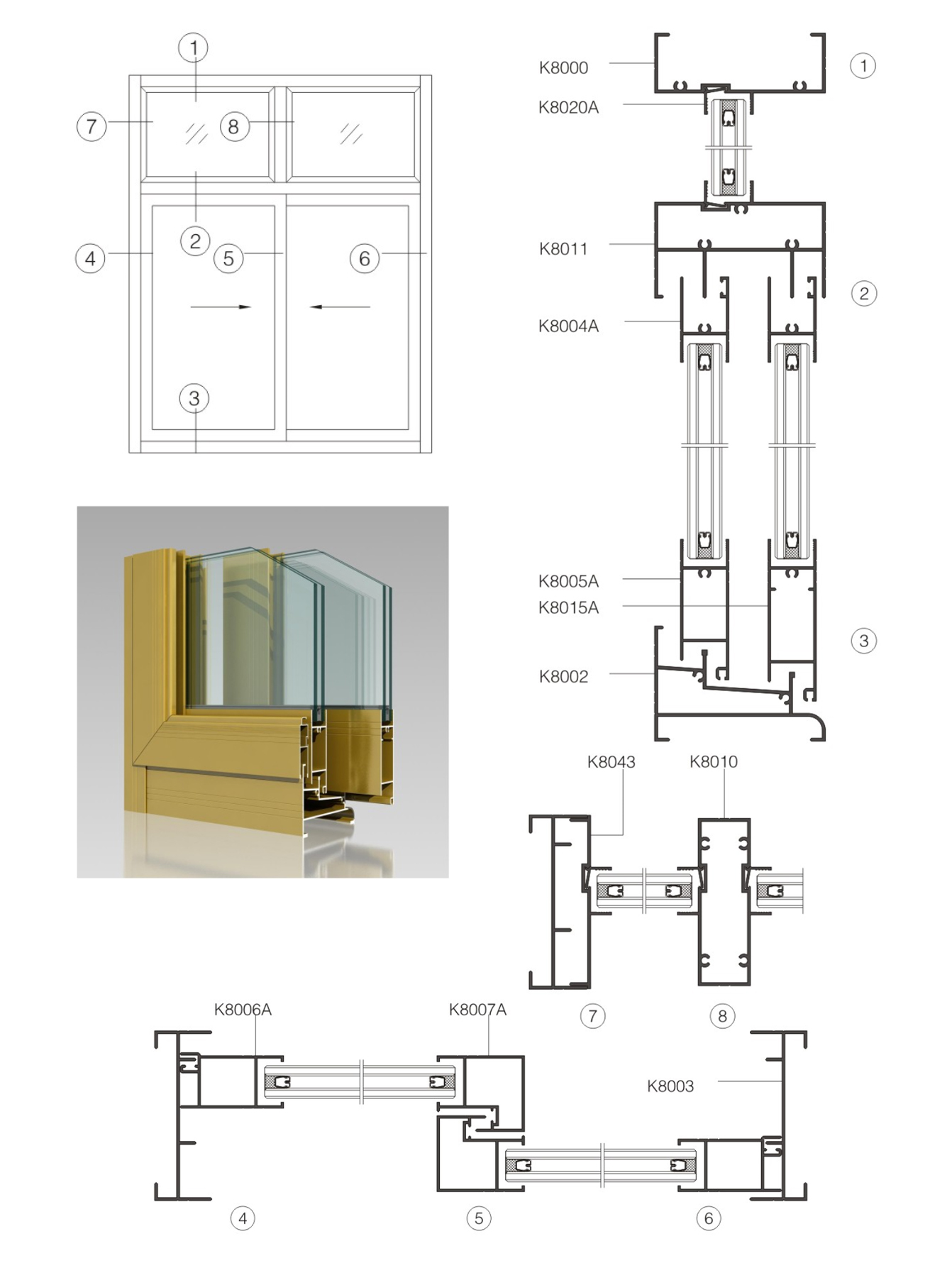

Node Drawing

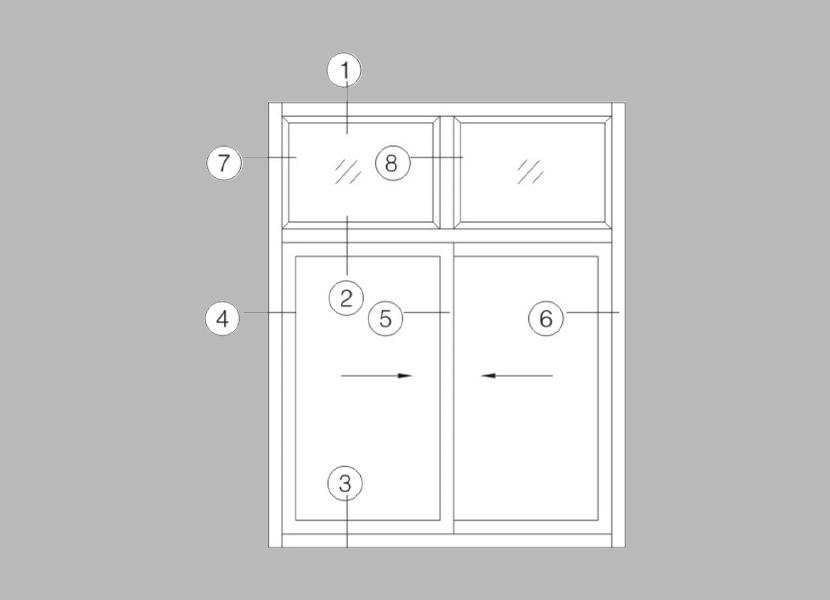

Simple Drawing

Model	K8001
Name	Slippery
Wall thickness	1.4mm
Meter weight	0.835kg/m

Model	K8002
Name	Sliding
Wall thickness	1.4mm
Meter weight	1.015kg/m

Model	K8002B
Name	Sliding
Wall thickness	0.9mm
Meter weight	0.583kg/m

Model	K8002C
Name	Sliding
Wall thickness	0.9mm
Meter weight	0.751kg/m

Model	K8003
Name	Edge seal
Wall thickness	1.4mm
Meter weight	0.626kg/m

Model	K8004
Name	Above
Wall thickness	1.4mm
Meter weight	0.476kg/m

Model	K8004A
Name	Above
Wall thickness	1.2mm
Meter weight	0.380kg/m

Model	K8005
Name	Below
Wall thickness	1.4mm
Meter weight	0.717kg/m

Model	K8005A
Name	Below
Wall thickness	1.2mm
Meter weight	0.585kg/m

Model	K8005B
Name	Below
Wall thickness	0.9mm
Meter weight	0.428kg/m

Model	K8006
Name	Light enterprise
Wall thickness	1.4mm
Meter weight	0.655kg/m

Model	K8006A
Name	Light enterprise
Wall thickness	1.2mm
Meter weight	0.540kg/m

Model	K8007
Name	Hook enterprise
Wall thickness	1.4mm
Meter weight	0.696kg/m

Model	K8007A
Name	Hook enterprise
Wall thickness	1.2mm
Meter weight	0.570kg/m

Model	K8007B
Name	Hook enterprise
Wall thickness	0.9mm
Meter weight	0.448kg/m

Model	K8007C
Name	Hook enterprise
Wall thickness	1.2mm
Meter weight	0.860kg/m

Model	K8000
Name	Fixed on
Wall thickness	1.4mm
Meter weight	0.672kg/m

Model	K8000B
Name	Fixed on
Wall thickness	0.9mm
Meter weight	0.450kg/m

Model	K8009
Name	90°Corner
Wall thickness	1.2mm
Meter weight	1.170kg/m

Model	K8009A
Name	90°Corner
Wall thickness	0.9mm
Meter weight	0.933kg/m

Model	K8009B
Name	90°Corner
Wall thickness	0.9mm
Meter weight	0.736kg/m

Model	K8010
Name	Middle column
Wall thickness	1.4mm
Meter weight	1.029kg/m

Model	K8011
Name	Middle waist
Wall thickness	1.4mm
Meter weight	1.256kg/m

Model	K8012
Name	Belt slip
Wall thickness	1.4mm
Meter weight	1.097kg/m

Model	K8015
Name	Big under
Wall thickness	1.4mm
Meter weight	0.810kg/m

Model	K8015A
Name	Big under
Wall thickness	1.2mm
Meter weight	0.670kg/m

Model	K8015B
Name	Big under
Wall thickness	0.9mm
Meter weight	0.490kg/m

Model	K8018
Name	Word
Wall thickness	1.4mm
Meter weight	0.527kg/m

Model	K8019
Name	135°Corner
Wall thickness	1.2mm
Meter weight	0.710kg/m

Model	K8020
Name	Pressure line
Wall thickness	1.0mm
Meter weight	0.100kg/m

Model	K8020A
Name	Pressure line
Wall thickness	1.2mm
Meter weight	0.063kg/m

Model	K8021
Name	Open tube
Wall thickness	1.2mm
Meter weight	0.340kg/m

Model	K8032
Name	Flat slide
Wall thickness	0.9mm
Meter weight	0.503kg/m

Model	K8040
Name	Screen window
Wall thickness	0.6mm
Meter weight	0.178kg/m

Model	K8043
Name	Cover
Wall thickness	1.4mm
Meter weight	0.441kg/m

Model	K8043A
Name	Cover
Wall thickness	0.9mm
Meter weight	0.265kg/m
